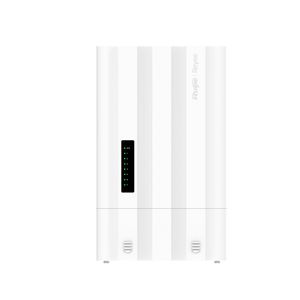

Ruijie Reyee Outdoor 7-Port Gigabit Smart Managed PoE Switch (RG-ES207GS-AC-OD)

An all-in-one outdoor 7-port Gigabit smart switch designed specifically for IP surveillance and harsh environment networking. The Ruijie Reyee RG-ES207GS-AC-OD combines a managed switch, AC power supply, surge protection, and an IP65 weatherproof enclosure into a single unit—eliminating the need for external waterproof cabinets or separate power adapters.

Featuring 5 Gigabit Ethernet ports (4 supporting PoE/PoE+ output) and 2 SFP optical ports for long-distance fiber uplink or ERPS ring topologies, it delivers high-reliability connectivity for outdoor security cameras and wireless access points.

Key Features

• 4-in-1 Integrated Outdoor Design: Unifies switch board, AC power module, junction box, and surge protection in a single rugged housing.

• IP65 Weatherproof Housing: Fully dustproof and water-jet resistant with an operating temperature range from –30°C to +65°C.

• High-Power PoE Delivery: 4 × 802.3af/at PoE/PoE+ RJ45 ports with a 60W total power budget for connected IP cameras.

• Fiber Uplink & ERPS Support: 2 × 1GE SFP optical ports support ERPS (Ethernet Ring Protection Switching) for fast-healing fiber ring connections.

• Direct AC Power Input: Internal AC terminal connection accepts standard 100V–240V AC power directly without external power bricks.

• Surge & Lightning Protection: Built-in ±8 kV surge protection on PoE ports shields connected hardware against voltage spikes.

• Smart CCTV Healing (PoE Watchdog): Automatically detects offline or frozen IP cameras and power-cycles the port to reboot the camera.

• Ruijie Cloud Management: Remotely monitor, reboot ports, and manage network topology via the free Ruijie Cloud app or web console.

Typical Applications Ideal for outdoor IP CCTV camera installations, pole-mounted perimeter security, commercial park surveillance, and outdoor Wi-Fi access point backhaul where direct AC power and fiber connectivity are required without extra weatherproofing boxes.

Specifications

• Total Ports: 7 Ports (5 × 10/100/1000Base-T, 2 × 1GE SFP)

• PoE Out Ports: 4 × 802.3af/at (PoE/PoE+)

• PoE Power Budget: 60 W

• Switching Capacity: 14 Gbps

• Forwarding Rate: 10.42 Mpps

• Ingress Protection Rating: IP65 Weatherproof

• Surge Protection: ±8 kV

• Power Supply Input: 100V to 240V AC Direct Input

• Operating Temperature: –30°C to +65°C

• Brand: Ruijie Reyee
