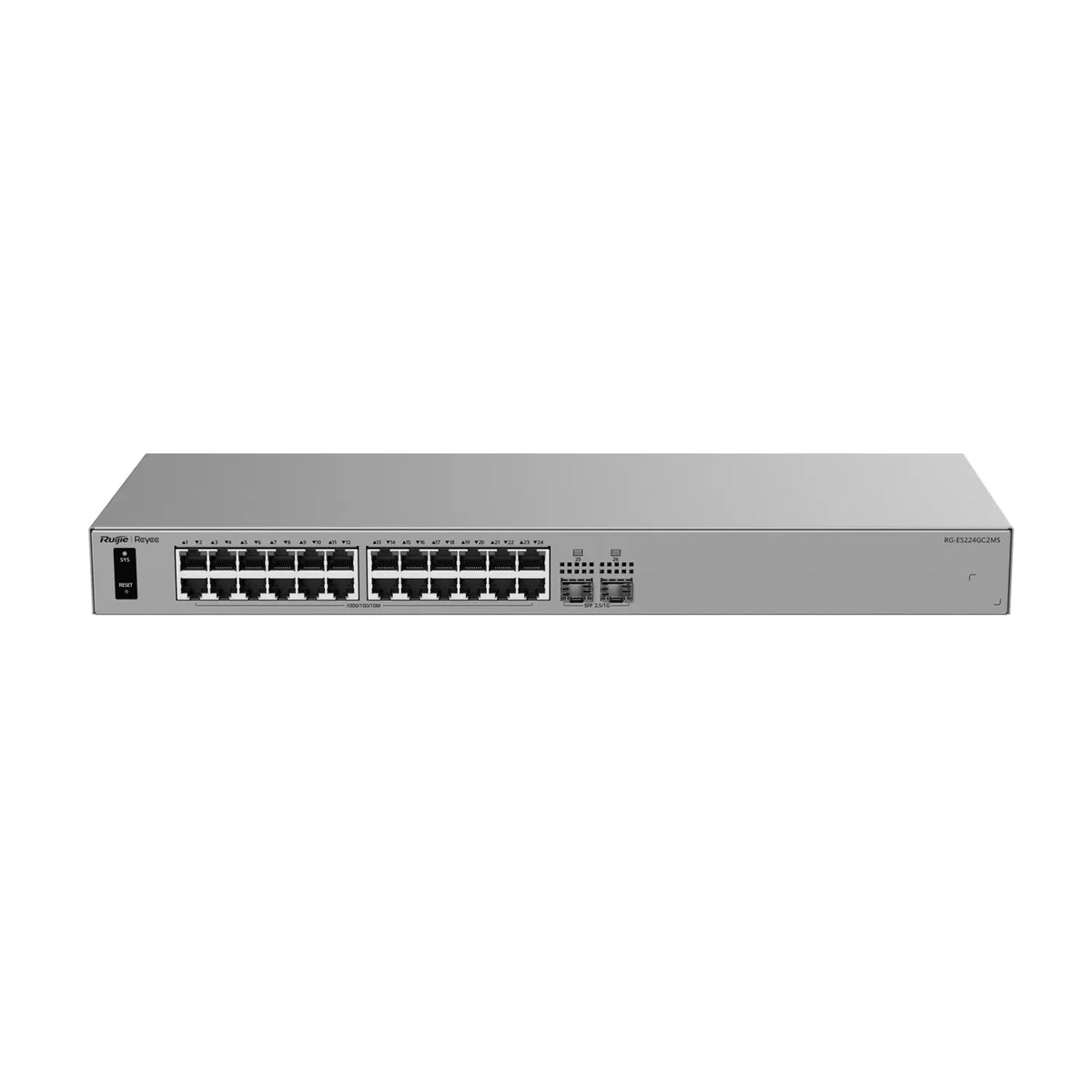

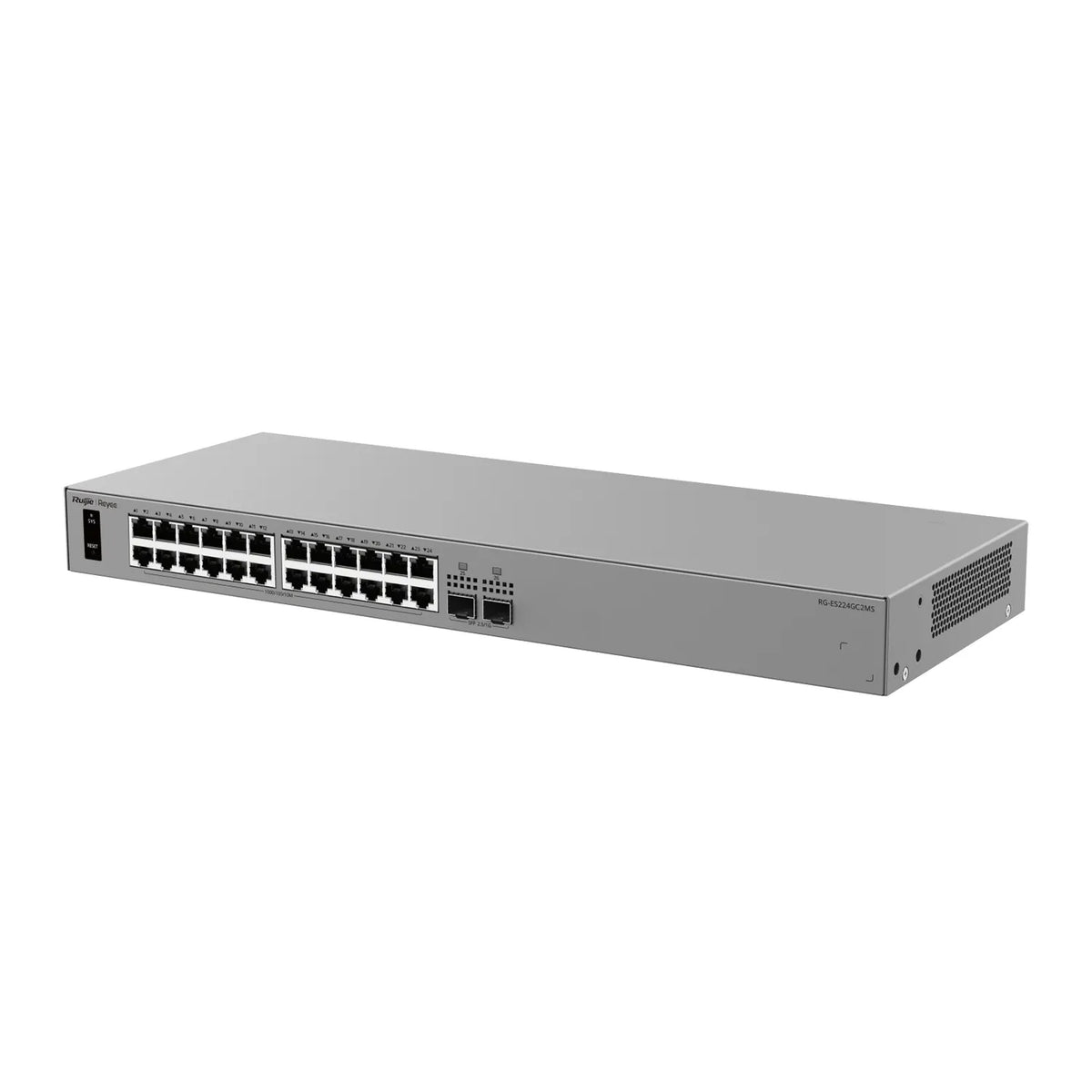

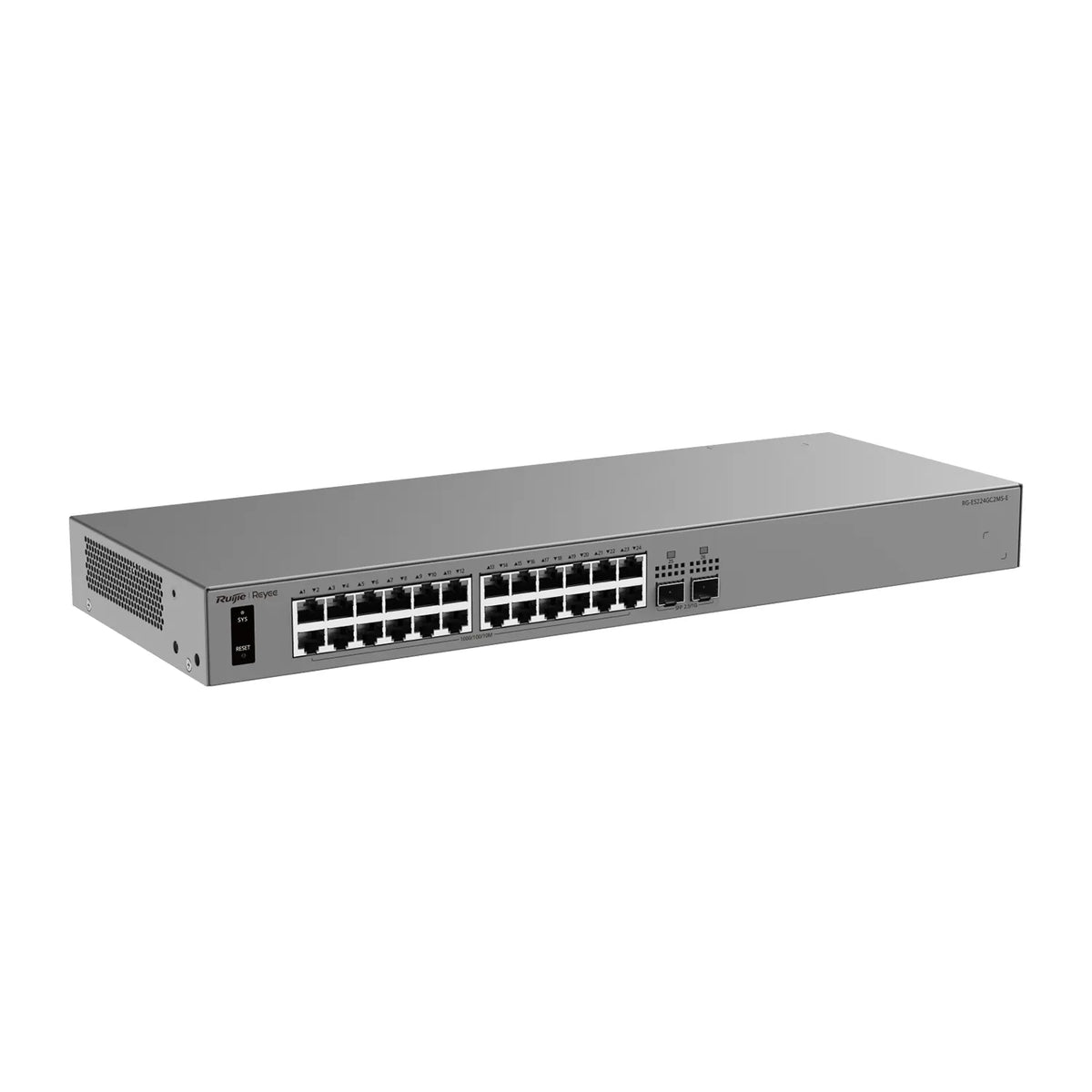

Ruijie Reyee 24-Port Gigabit Smart Cloud-Managed Switch (RG-ES224GC2MS)

A high-density 26-port Layer 2 smart cloud-managed non-PoE switch engineered for business office networks, CCTV surveillance aggregation, and SMB connectivity. The Ruijie Reyee RG-ES224GC2MS provides 24 × Gigabit RJ45 copper ports alongside 2 × 2.5GE SFP optical ports for high-bandwidth fiber uplinks and ERPS ring network topologies.

Housed in a 19″ rackmount metal chassis, it incorporates static link aggregation, 6 kV surge protection, auto-loop prevention, and seamless management via the Ruijie Cloud platform and mobile app for remote monitoring and zero-touch configuration.

Key Features

• 26 Total Network Interfaces: Features 24 × 10/100/1000Base-T Gigabit RJ45 ports and 2 × 2.5GE SFP optical ports for high-speed uplink bandwidth.

• 2.5G SFP & ERPS Support: High-speed 2.5G optical ports support Ethernet Ring Protection Switching (ERPS) for fast-healing fiber ring redundancy.

• 58 Gbps Switching Performance: Delivers a 58 Gbps switching capacity and 43.15 Mpps forwarding rate for uninterrupted data distribution.

• Energy-Efficient Design: Smart, low-power operational design housed in a durable metal 1U chassis.

• Automatic Loop Prevention: Built-in loop protection mechanisms automatically detect and isolate loop network faults to ensure service continuity.

• Industrial-Grade Surge Protection: Built-in ±6 kV surge protection on service ports guards against voltage transients in harsh environments.

• Ruijie Cloud Managed: Real-time visibility, automated topology mapping, VLAN configuration, and remote maintenance via the free Ruijie Cloud web app and mobile platform.

Typical Applications Ideal for SMB office backbones, high-density desktop distribution, CCTV IP camera data aggregation, and commercial building networks requiring 24 Gigabit copper ports and dual 2.5G fiber uplinks.

Specifications

• Total Network Interfaces: 26 (24 × 10/100/1000Base-T RJ45, 2 × 2.5GE SFP)

• PoE Out: Non-PoE

• Switching Capacity: 58 Gbps

• Forwarding Rate: 43.15 Mpps

• Surge Protection: ±6 kV

• Power Supply: Internal 100V to 240V AC Power Supply

• Max Power Consumption: 18 W

• Fan Design: Fanless / Low-Noise Design

• Form Factor: 19″ Rackmount (1U)

• Brand: Ruijie Reyee
