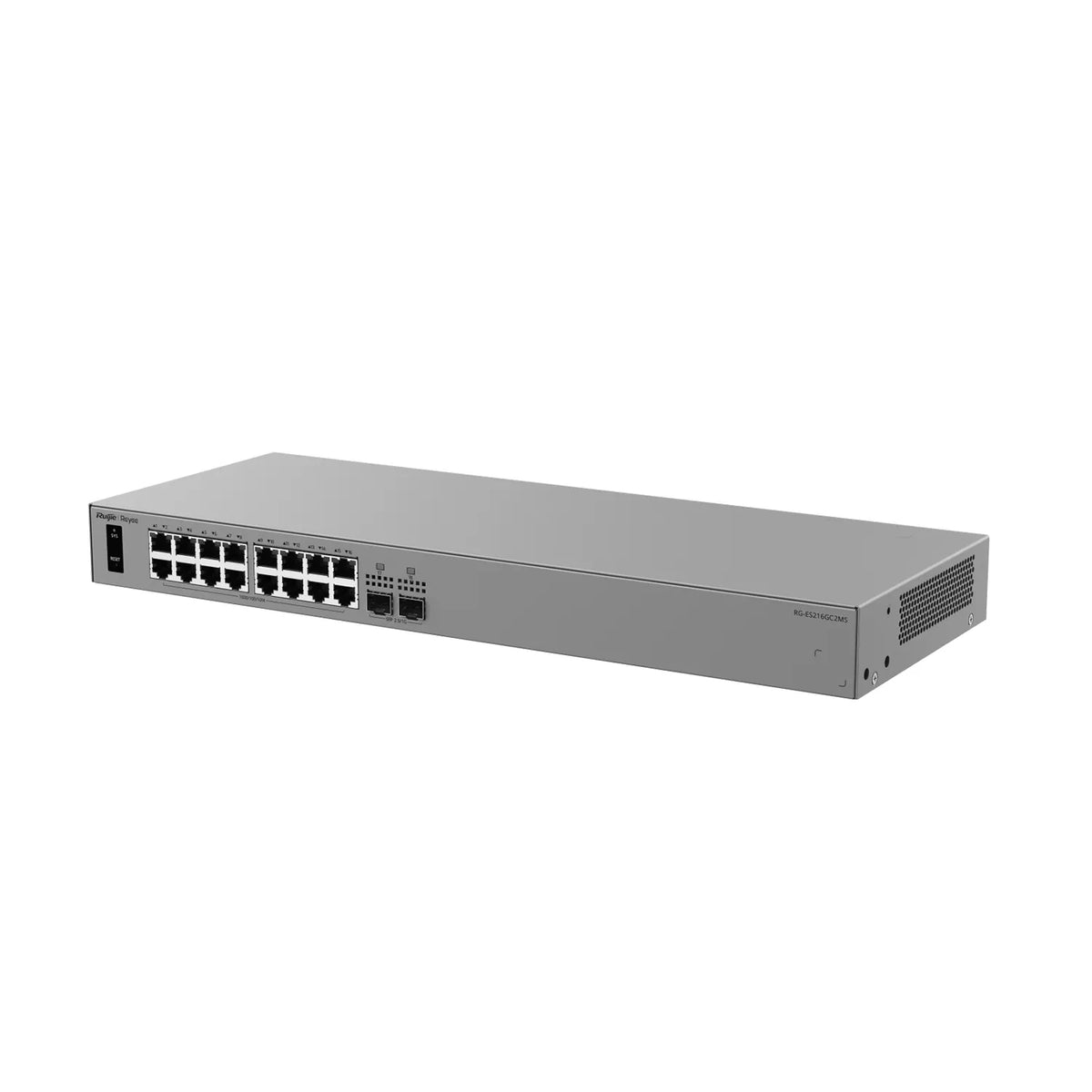

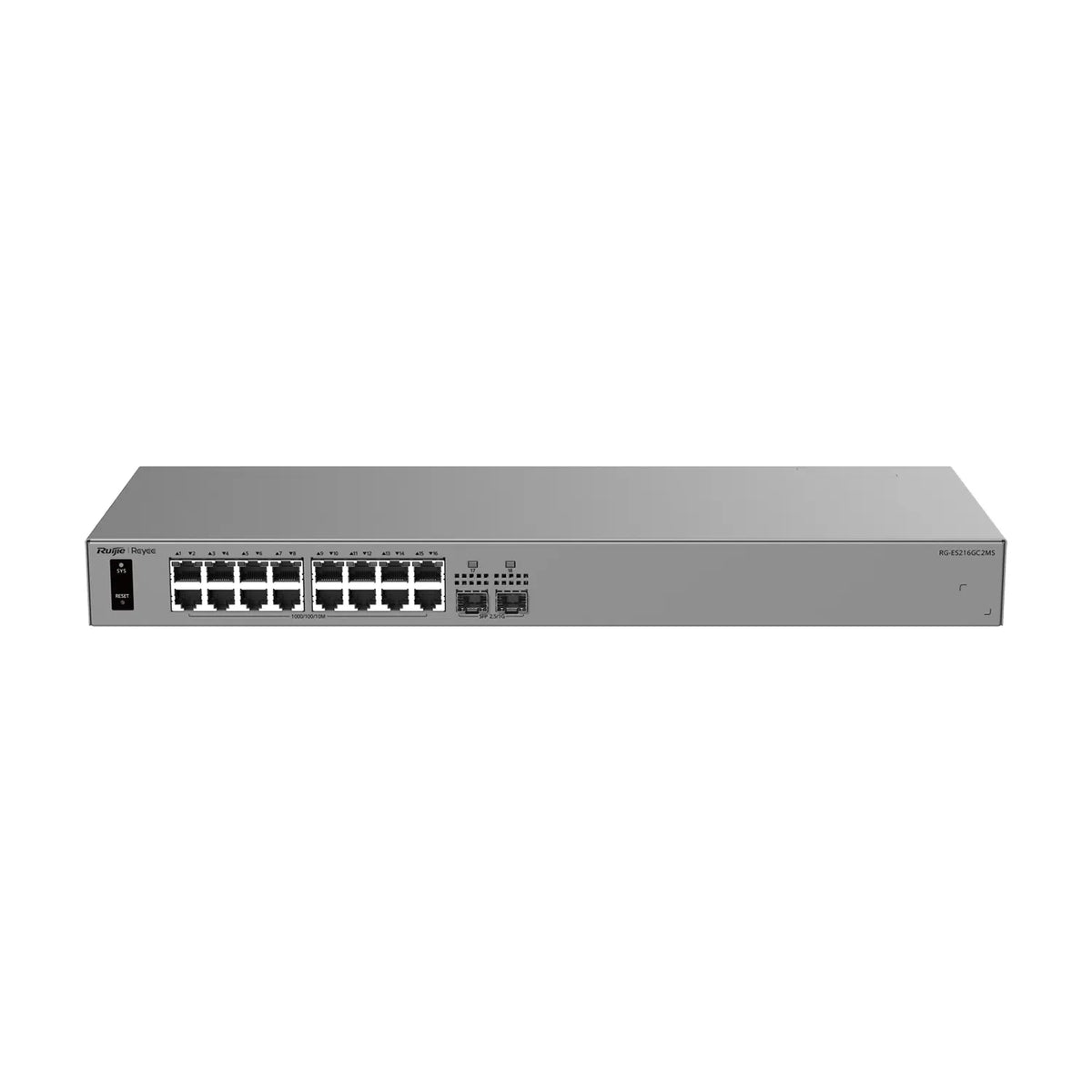

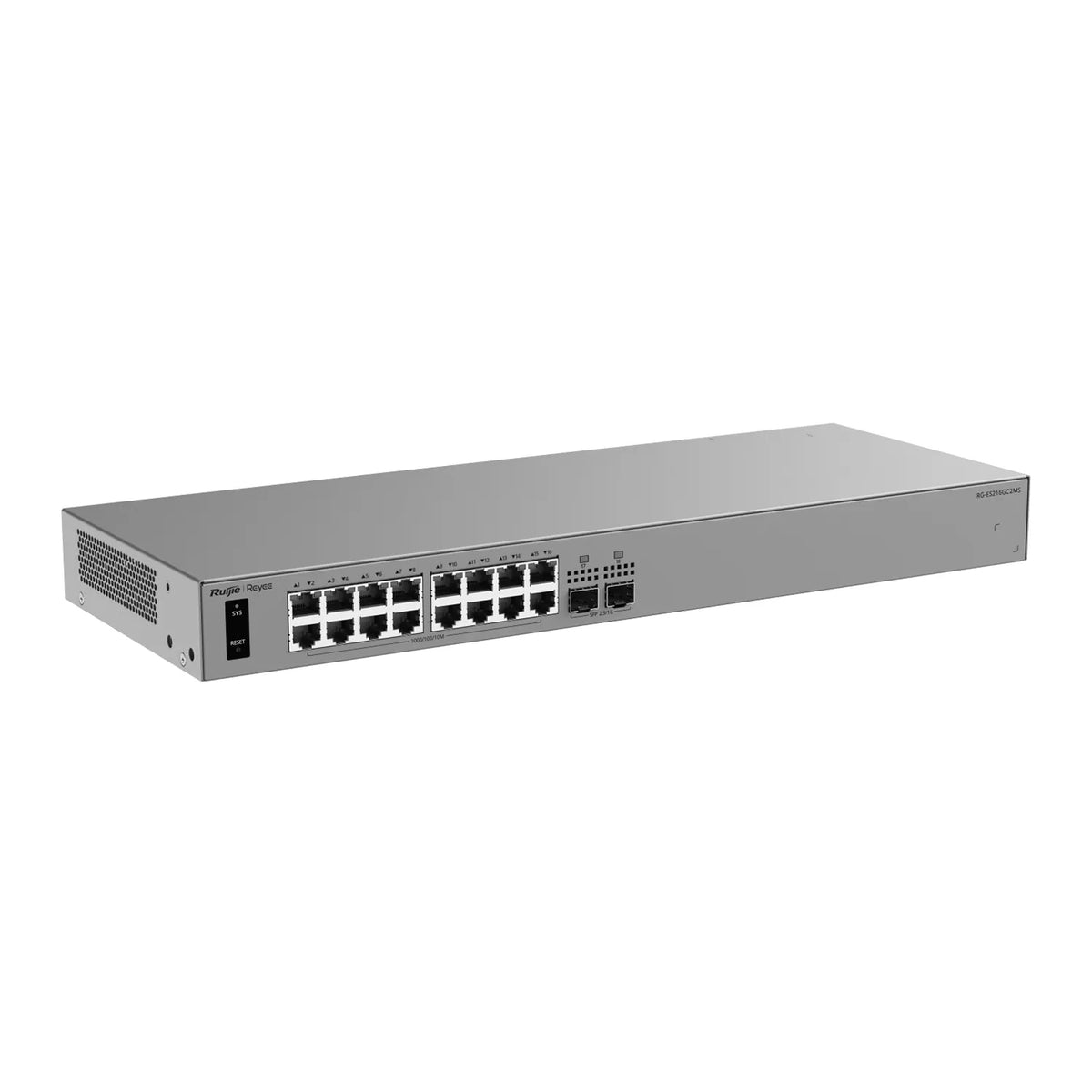

Ruijie Reyee 16-Port Gigabit Smart Cloud-Managed Switch (RG-ES216GC2MS)

A high-density 18-port Layer 2 smart cloud-managed non-PoE switch engineered for business office networks, CCTV surveillance aggregation, and SMB connectivity. The Ruijie Reyee RG-ES216GC2MS provides 16 × Gigabit RJ45 copper ports alongside 2 × 2.5GE SFP optical ports for high-bandwidth fiber uplinks and ERPS ring network topologies.

Housed in a fanless rackmount metal chassis, it incorporates static link aggregation, 6 kV surge protection, auto-loop prevention, and seamless management via the Ruijie Cloud platform and mobile app for remote monitoring and zero-touch configuration.

Key Features

• 18 Total Network Interfaces: Features 16 × 10/100/1000Base-T Gigabit RJ45 ports and 2 × 2.5GE SFP optical ports for high-speed uplink bandwidth.

• 2.5G SFP & ERPS Support: High-speed 2.5G optical ports support Ethernet Ring Protection Switching (ERPS) for fast-healing fiber ring redundancy.

• 42 Gbps Switching Performance: Delivers a 42 Gbps switching capacity and 31.25 Mpps forwarding rate for uninterrupted data distribution.

• Silent & Fanless Enclosure: Quiet, energy-efficient operational design suitable for noise-sensitive office environments.

• Automatic Loop Prevention: Built-in loop protection mechanisms automatically detect and isolate loop network faults to ensure service continuity.

• Industrial-Grade Surge Protection: Built-in ±6 kV surge protection on service ports guards against voltage transients in harsh environments.

• Ruijie Cloud Managed: Real-time visibility, automated topology mapping, VLAN configuration, and remote maintenance via the free Ruijie Cloud web app and mobile platform.

Typical Applications Ideal for SMB office backbones, desktop distribution, CCTV IP camera data aggregation, and commercial building networks requiring 16 Gigabit copper ports and dual 2.5G fiber uplinks.

Specifications

• Total Network Interfaces: 18 (16 × 10/100/1000Base-T RJ45, 2 × 2.5GE SFP)

• PoE Out: Non-PoE

• Switching Capacity: 42 Gbps

• Forwarding Rate: 31.25 Mpps

• Surge Protection: ±6 kV

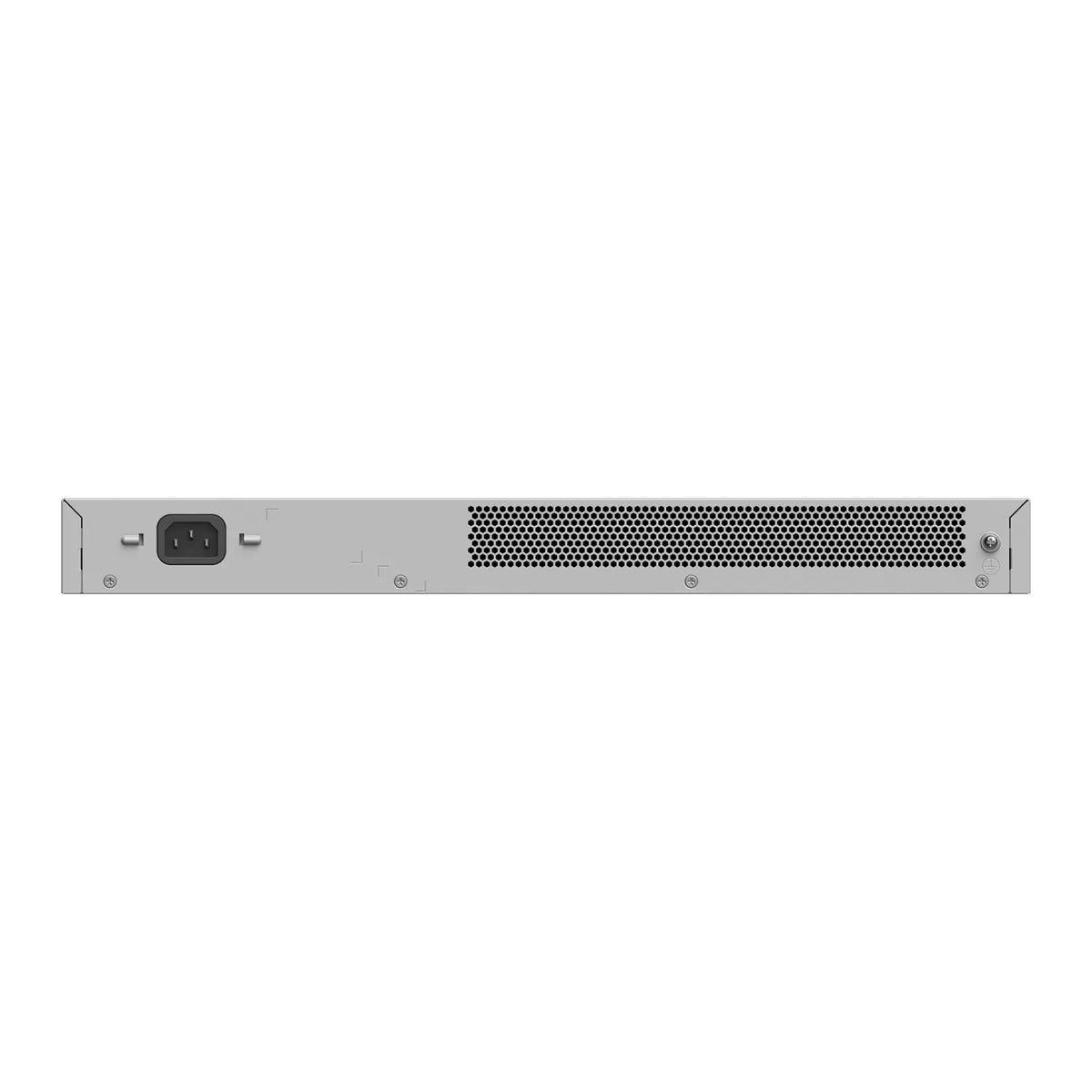

• Power Supply: Internal 100V to 240V AC Power Supply

• Max Power Consumption: 13 W

• Fan Design: Fanless

• Form Factor: 19″ Rackmount / Desktop

• Brand: Ruijie Reyee
