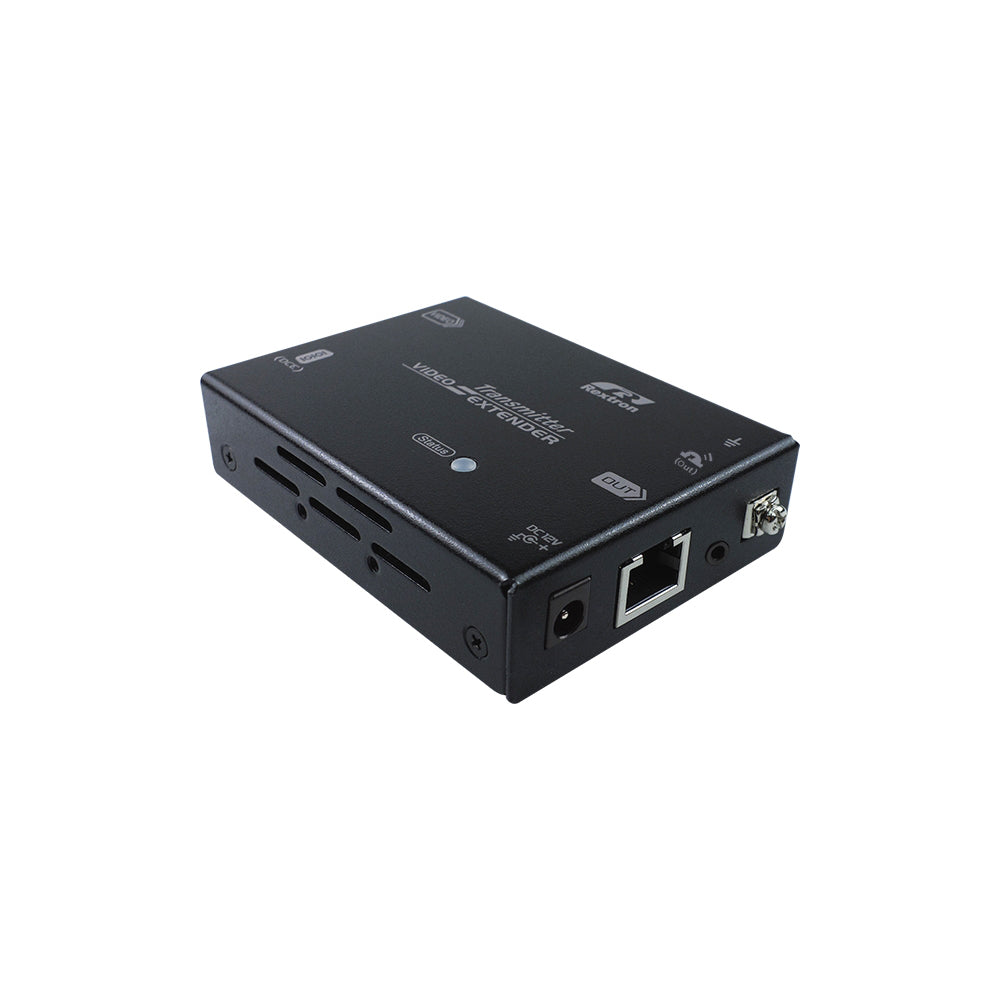

REXTRON EVBMS-M110 HDBASET 4K @60HZ HDMI EXTENDER OVER CAT6

FEATURES • HDBaseT Technology - Uncompressed video transmission ensures crystal clear image and low latency • 4K UHD with HDR10 - Supports up to 4K @30Hz (4:4:4) with enhanced visual performance • Long Distance Extension - up to 100m at 1080p and 70m at 4K over CAT6 • Power Over Cable (PoC) - Powers TX and RX units over a single cable for simplified installation • Multi-Signal Transmission - Supports HDMI, IR and RS232 control over one CAT6 cable • IR Extension - Enables remote control of source devices • RS232 Pass-Through - Allows integration with control and automation systems • HDMI CEC Support - Enables control of connected HDMI devices • HDCP 1.4 Compliance - Ensures smooth playback of protected content • Plug-and-Play - No software or drivers required for setup SPECIFICATIONS • Input: 1× HDMI • Output: 1× HDMI • HDBaseT Interface: 1× RJ45 • Maximum Resolution: 3840×2160 @30Hz (4:4:4), 3840×2160 @60Hz (4:2:0) • Extension Distance: 100m @1080p, 70m @4K • IR Ports: 3.5mm (TX and RX) • IR Frequency: 38~56KHz • RS232: DB9 (DCE/DTE) • HDCP: 1.4 • Power Supply: DC 12V (PoC Supported) • Operating Temperature: 0~40°C • Storage Temperature: -20~60°C • Chassis Material: Metal • Dimensions: 22 × 66 × 87mm • Weight: 225g
