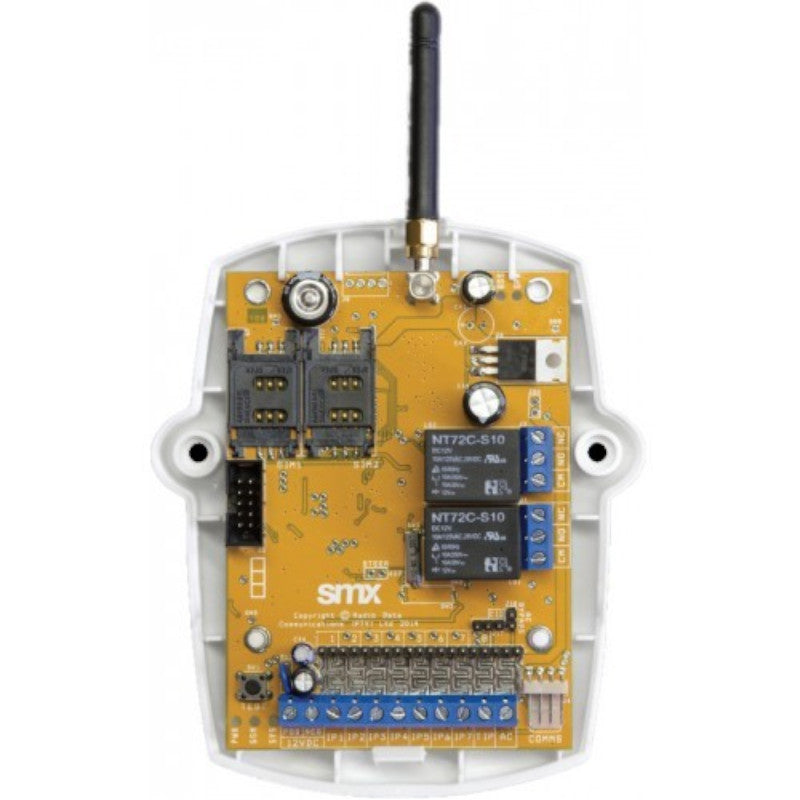

RDC SMX

RDC SMX

R 2,734.00 ZAR
R 2,734.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.
USB Dongle

RDC-TXSMS
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments
RDC SMX used for connecting seamlessly to your PC. Next generation software makes programming intuitive and easy. Logical screen layouts, simple option selections and clear onscreen diagrams with explanations, make programming the unit a breeze.
Excludes USB serial cable and programming software.

Excludes: USB serial cable and programming software.

Features:
Dual SIM option
7 Hardwired inputs
2 Onboard relays with timer function
Contact ID reporting(use alarm control panel dialer)
Tamper vibration sensor
Access for missed call feature - up to 500 users
Reports SMS to 10 x Cell users

Specifications:

GSM:
Frequency bands Dual band (GSM 900MHz/1800MHz)
Output power Class 4 for EGSM900, Class 1 for GSM1800
Engine BGS2-E/BGS2-W Cinterion
Power consumption
Standby 1.08Watt (0.09mA at 12V)
Input voltage 9Vdc(min) to 25Vdc(max)

Physical:
Dimensions 140mm (without antenna) x 100mm x 30mm
Mounting 2 x 4.7mm holes on the enclosure
Weight 165grams
Input and output specifications
Inputs Positive trip +2.7V to +30V
Negative trip -0.5V to +0.5V
Outputs 10A @ 250Vac max
10A @ 28Vdc max

Input and output connections:
Inputs - 9 Hardwired screw terminal inputs (Input 9 shared with CID input)
- 1 AC fail screw terminal input
- TTL serial communications connector
- Engineer test button
Outputs - 2 Relay screw terminal outputs (CM, NO, NC)
Stubby antenna included


More information on the SMX in our Forum
