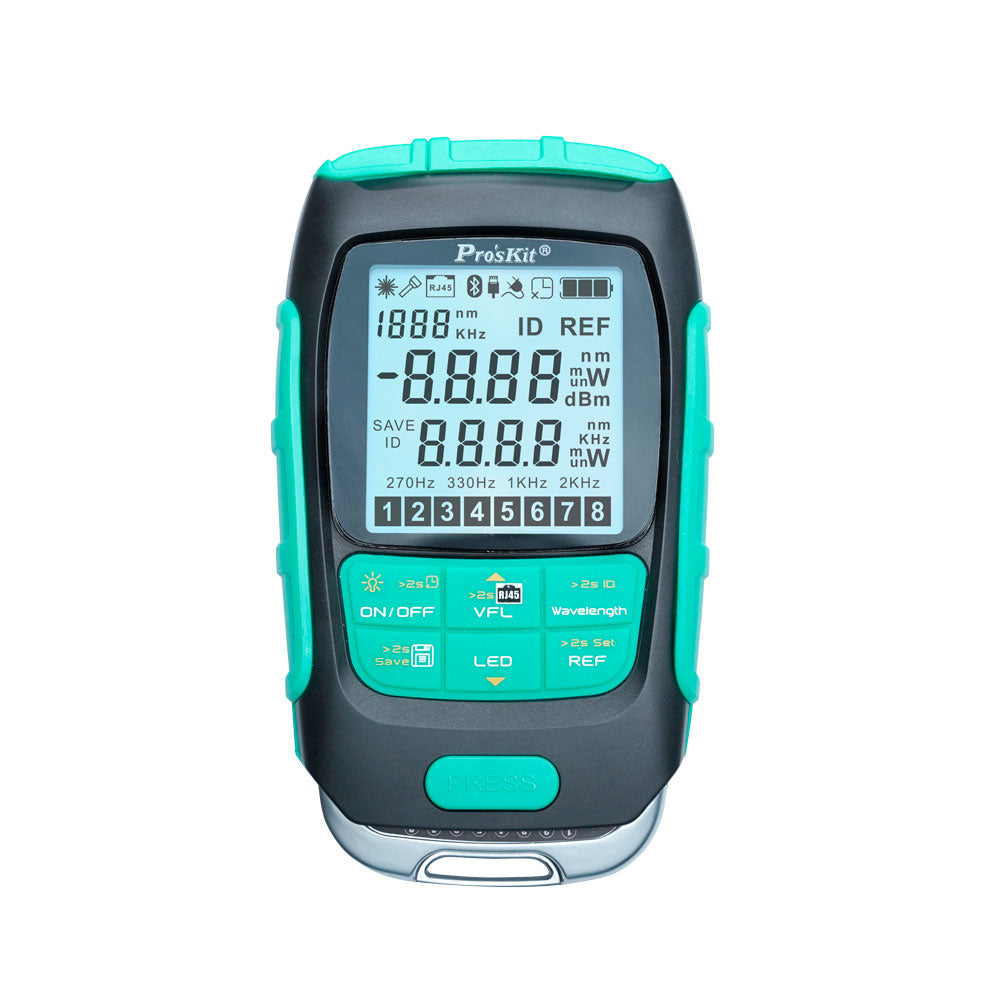

PROSKIT MT-7616 4-IN-1 FIBRE OPTICAL POWER MULTIMETER, INCLUDING POWER METER, LAN CABLE TESTER, VISUAL FAULT LOCATOR AND LED FLASHLIGHT

FEATURES • 4-in-1 Design with 30mW Output - Combines multiple fibre and network test functions in one tool • Self-Calibration - Ensures accurate measurements without manual adjustment • Rechargeable Li-ion Battery - A 450mAh battery provides reliable portable power for field work • 500× Data Storage Groups - Stores test results for easy review and reporting • Integrated Cable Tester - Verifies LAN cable continuity and performance SPECIFICATIONS • Detector Type: InGaAs • Wavelength Response Range: 700~1700nm • OPM Connector: 2.5mm Universal Connector • Measurement Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm • Measurement Range: -70~+10dB • Resolution: 0.01dB • Accuracy (1550nm and 1310nm): 0.2dB • Accuracy (1490nm, 1625nm and 1650nm): 0.3dB • Accuracy (850nm, 980nm and 1300nm): 0.4dB • Measurement Units: dB, dBm, mW, uW, nW • Modulation Detection: 270Hz, 1kHz, 2kHz • Data Storage: 500× Groups • Wavelength Memory: Yes • WAVE ID: Yes (only for ProsKit light source products) • User Self-Calibration: Yes • REF Function: Yes • Back Light: Yes • Output Power: 30mW • Fibre Testing Distance: 14~16km @SM • VFL Connector: 2.5mm Universal Connector • VFL Wavelength: 650 ±20nm • Operation Mode: CW / 2Hz Glint • Network Application: UTP Network Cable • Interface: RJ45 (UTP 8P8C) • Network Testing Type: Network Sequence • Network Testing Distance: 600m • Illumination: LED • Auto Power-Off: Yes (no operation for 10 minutes) • Low Battery Indicator: Yes • Charging Socket: Micro USB • Working Time: >50hours (OPM only) • Power Source: 3.7V 450mAh Li-ion • Operating Temperature: -10~50°C • Operating Humidity: <90% RH • Dimensions (L × W × H): 98 × 59 × 27mm • Weight: 100g
