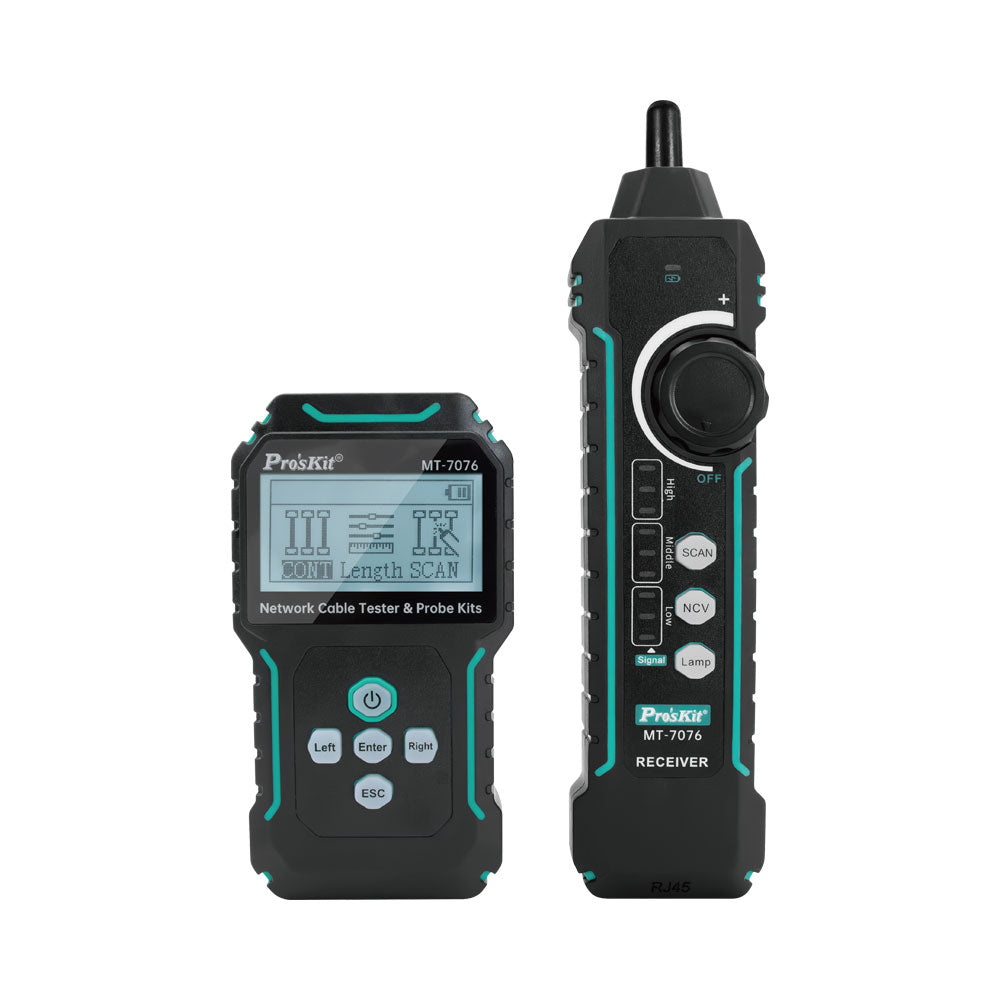

PROSKIT LCD NETWORK CABLE TESTER & PROBE KIT

FEATURES • Analogue and Digital Dual Mode - Supports flexible cable testing across different signal types • Rechargeable Li-ion Battery - Convenient USB Type-C charging for modern workflows • PoE Switch and Port Flashing - Identifies active PoE ports and connected switch ports quickly • NCV Detection - Non-contact voltage detection for added safety during testing • Crimp Test Function - Verifies correct cable termination and crimp quality • DC 60V Protection Design - Protects the tester against accidental over-voltage exposure SPECIFICATIONS • Display: LCD • Signal Mode: Analogue and Digital • Tracing Frequency: 455KHz • Cable Tracing in Working Network: Yes • BNC Cable Tracing: No (can be used with alligator clip) • Scan Range: ≤600m • Cable Map Display: R and M, 1-8 and G (LCD) • Cable Map Max Range: 300m • Cable Length Test Cable Type: CAT5, CAT5e, CAT6 • Cable Length Test Range: 2.5m~200m • RJ45 Connector Testing: Yes • PoE Power Supply Mode: End Span, Mid Span, 8-Pins • PoE Standard Type and Voltage: IEEE 802.3af/at, non-standard voltage values • Port Flash: 1 time per 3 seconds • Link Test: 10/100/1000 Mbps, FDX/HDX, Auto-Negotiation and No Auto-Negotiation • Wire Continuity Ω: No • Telephone Line Polarity (POL +/-): No • Flashlight: Yes • Non-Contact Voltage Detection (NCV): Yes • Input Protection: DC 60V • Transmitter Battery: 3.7V 1400mAh Li-ion • Receiver Battery: 3.7V 1400mAh Li-ion • Charging Type: USB Type-C • Duration of Tracing: >10 hours • Transmitter Dimensions: 125 × 70 × 32mm • Receiver Dimensions: 198 × 50 × 28mm • Identification: CE • RoHS Compliant: Yes • Storage Bag Included: Yes
