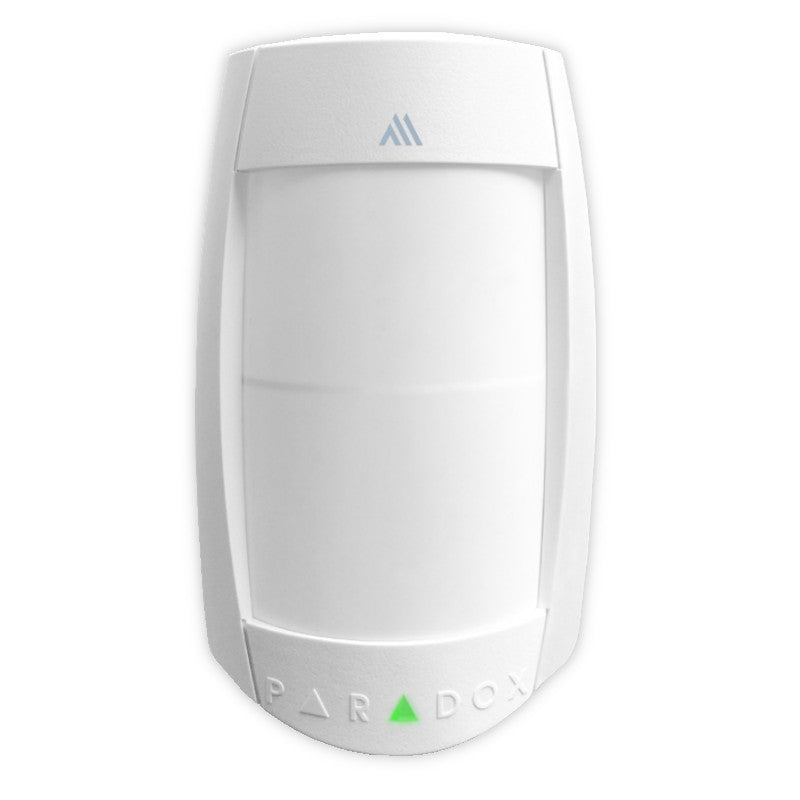

Paradox PMD75M PET Sensor

Paradox PMD75M is a wireless indoor motion detector featuring dual-opposed infrared sensors and advanced pet immunity, ensuring reliable detection without false alarms from animals. With a 90° coverage up to 15m, it includes adjustable detection energy, multiple processing modes, and a 6+ year battery life.



-Dual-optic wireless PIR sensors

-Advanced real pet-immunity

-Detection energy level control

-6+ years of battery life with normal usage

-Temperature sensor

-Multiple processing modes

-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247



-Wireless Type: GFSK two-way with frequency and encryption hopping

-Sensor Type: Two dual-opposed infrared sensors

-Coverage: 90° - 11m (36 ft) x 11m (36 ft); Center beams: 15m (49.2 ft)

-Detection Speed: 0.2m/s to 3.5m/s (0.6 ft/s to 11.5 ft/s)

-RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55)MHz, May vary by region.

-RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.

-Transmission Time: Less than 20 ms

-Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes

-Status Indicators: Battery, temperature, TX/RX values

-Battery: 3 x AAA Lithium, 6+ years of battery life with normal usage.

-Installation Environment: Indoor

-Firmware Upgrade: Remotely over the air, via BlueEye

-Operating Temperature: -20°C to +40°C (-4°F to 104°F)

-Auto Learn: Yes

-Colors: White

-Dimensions: 6.6W x 12.4H x 6.1D cm (2.6W x 4.9H x 2.4D in.)

-Weight: 0.16 Kg

Not Compatible with the MG/SP and EVO Ranges.
