• Paradox DCT10M Magnetic Contact
1 1

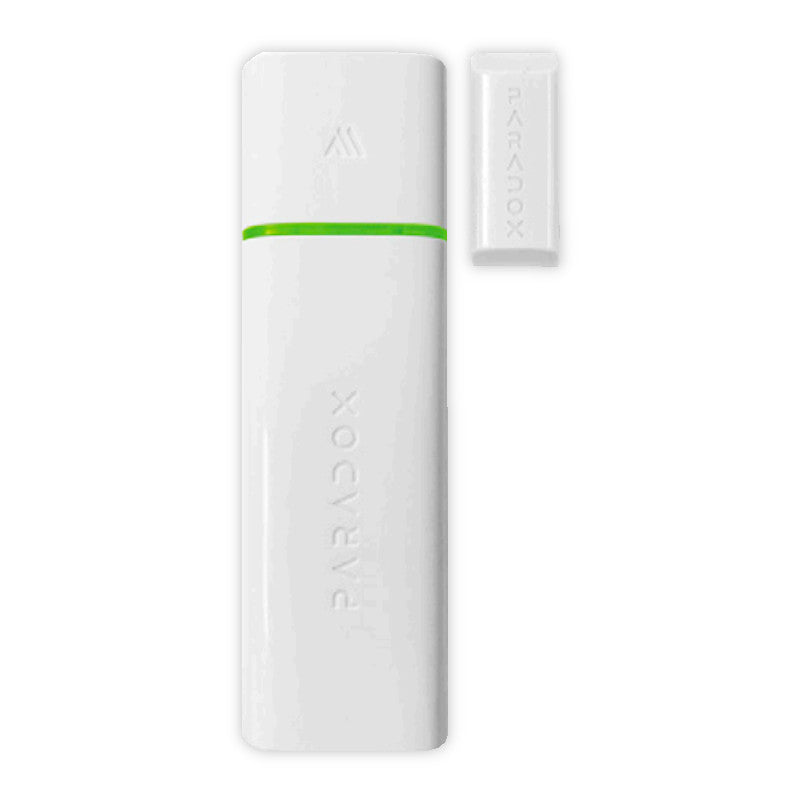

Paradox DCT10M Magnetic Contact

Paradox DCT10M Magnetic Contact

R 1,549.00 ZAR
R 1,549.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

DCT10M
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments
Paradox DCT10M is a dual-zone magnetic contact featuring both a built-in magnet sensor and an additional wired input. It includes LED indicators for open, close, and online status, a temperature sensor, and delivers over 8 years of battery life under normal use.

Features:
-Two zones - magnet and wired Input.
-LED indication for opening, closing, and on-line.
-Temperature sensor.
-8+ years battery life with normal usage.
-Certifications: CE, EN 50131-2-6, EN 50131-6, EN 50131-5-3, FCC 15.24.

Technical Specifications:
-Wireless Type: GFSK two-way with frequency and encryption hopping.
-RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region..
-RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.
-Close Distance of the Magnet: Less than 1 cm (0.4 in.).
-Open Distance of the Magnet: Above 2 cm (1.1 in.).
-Transmission Time: Less than 20 ms.
-Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes.
-Status Indicators: Battery, temperature, TX/RX values.
-Battery: 2 x AA lithium, 8+ years of battery life with normal usage.
-External Contact Cable Maximum Resistance: Up to 50-ohm resistance.
-Firmware Upgrade: Remotely over the air, via BlueEye.
-Installation Environment: Indoor.
-Operating Temperature: -30°C to +50°C (-22°F to 122°F).
-Auto Learn: Yes.
-Colors: White.
-Dimensions: 3.5W x 11.7H x 2.5D cm (1.4W x 4.6H x 1D in.).
-Weight Sensor 75 g / Magnet 12g .

Not Compatible with the MG/SP and EVO Ranges.
