MikroTik LtAP Mini LTE Kit

LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.

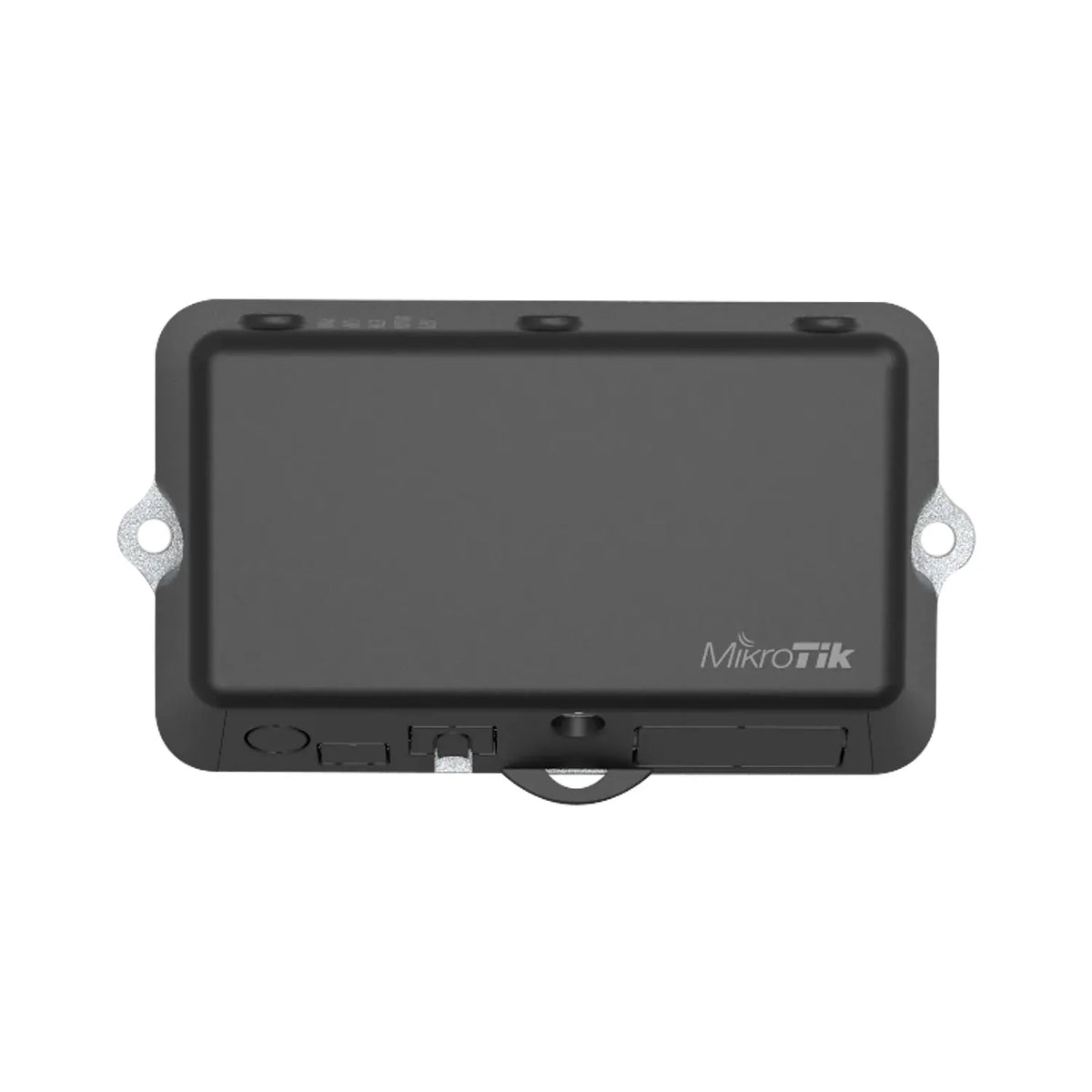

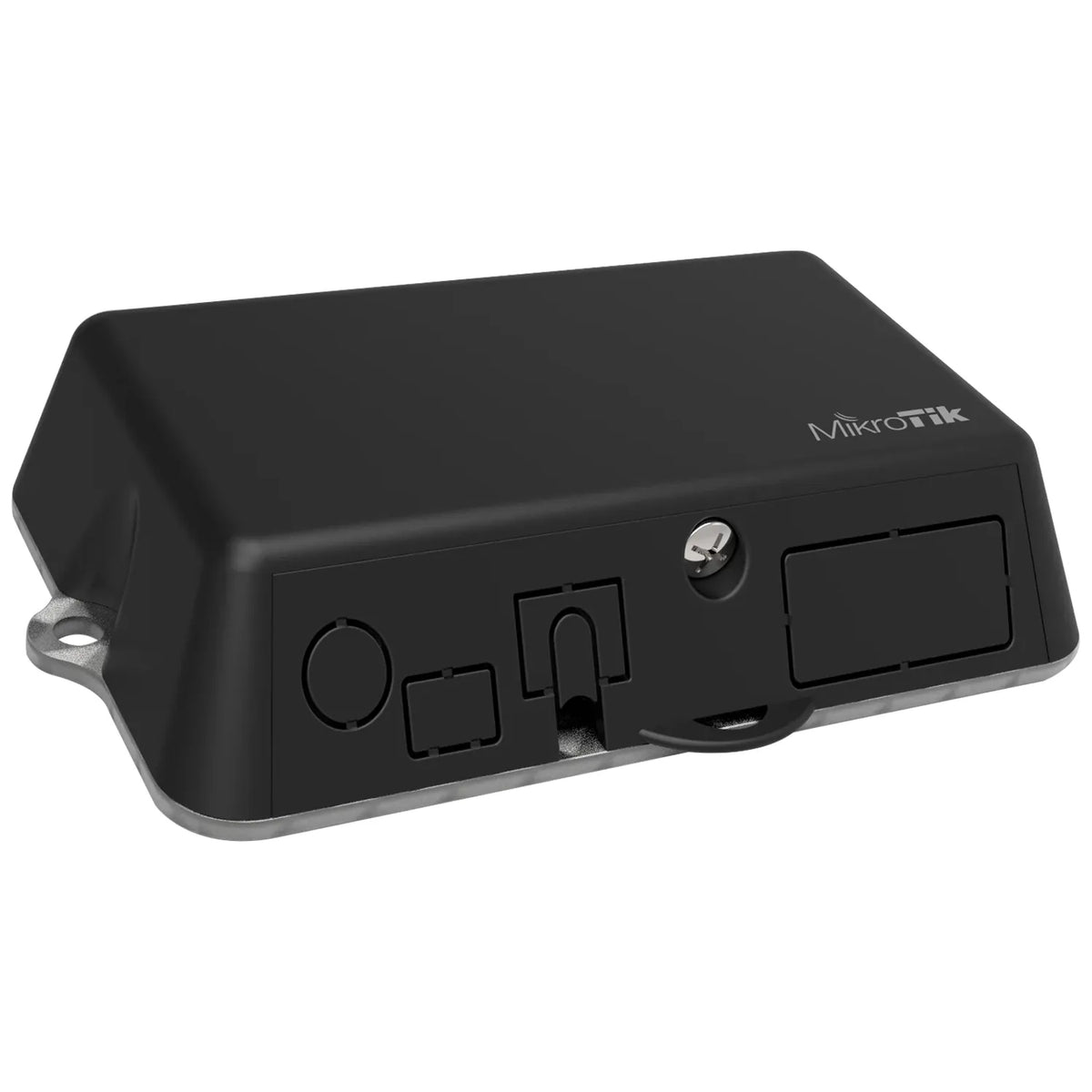

LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.

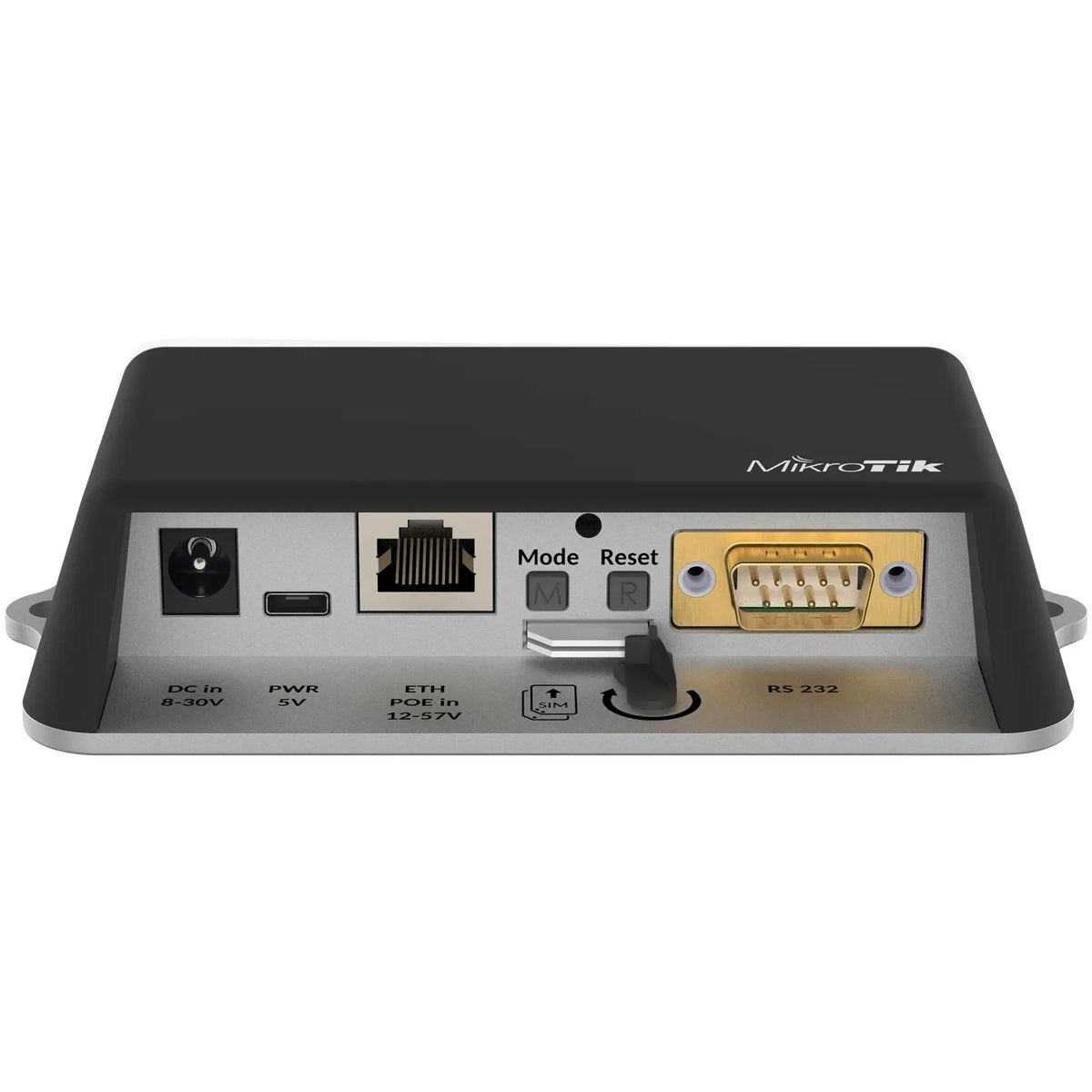

There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.

The power options are as flexible as they get. You have the classic DC jack, 802.3af/at PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!

The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.

We have provided a simple tracking application example in the RouterOS documentation – to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.

The MikroTik LtAP Mini LTE Kit is a compact, multipurpose LTE router built around the RB912R-2nD-LTm board with the EC200A modem – perfect for vehicles, signage, ticketing and mobile M2M deployments.

Specifications
– LTE: Cat 4 (150/50 Mbps) via EC200A-EU modem
– SIM slots: 2
– Wireless: 2.4 GHz Wi-Fi (802.11b/g/n 2×2)
– WAN/LAN: 1 x Fast Ethernet (100 Mbps)
– GPS: Built-in
– OS: RouterOS v7 Level 4
– Power: PoE or DC 12V

Key Features
Small, pocket-sized chassis with GPS for asset tracking and fleet applications. Dual SIM support enables operator failover. Full RouterOS for scripting and advanced M2M policies.

Ideal For
Vehicles, mobile payment terminals, ATM links, and remote sensors.
