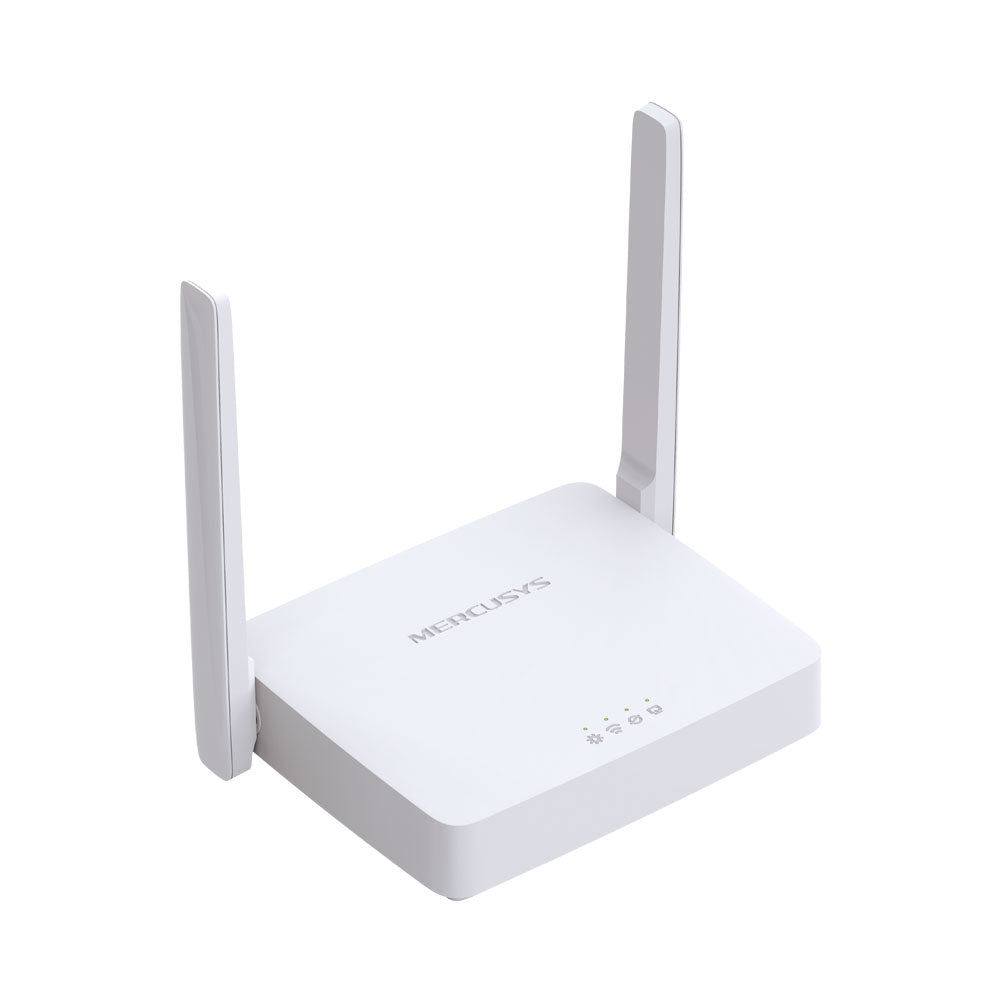

MERCUSYS 300MBPS MULTI-MODE WIRELESS N ROUTER

FEATURES • 300Mbps Wireless Speed - Ideal for HD streaming, online gaming, and large file downloads • Two 5dBi Antennas - greatly increase wireless signal strength, size and stability • Easy Installation - Intuitive webpage guides you through the setup process in minutes • Multi-Mode - Supports Router, Range Extender, Access Point and WISP modes SPECIFICATIONS • Ethernet Ports: 2x 10/100Mbps LAN Ports & 1x 10/100Mbps WAN Port • Button: Reset Button • External Power Supply: 5V/0.6A • Dimensions (W x D x H): 114mm x 94mm x 26mm • Antenna: 2x 5dBi • Wireless Standards: IEEE 802.11b/g/n • Frequency: 2.4-2.4835GHz • Signal Rate: - 11n: Up to 300Mbps (Dynamic) - 11g: Up to 54Mbps (Dynamic) - 11b: Up to 11Mbps (Dynamic) • EIRP: <20dBm (EIRP) • Reception Sensitivity: - 270M: -73dBm@10% PER - 130M: -75dBm@10% PER - 54M: -77dBm@10% PER • Wireless Function: Enable/Disable Wireless Radio, WDS Bridging • Wireless Security: WPA-PSK / WPA2-PSK • WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP • DHCP: Server • Port Forwarding: Virtual Server, UPnP, DMZ • Management: Access Control, Local Management, Remote Management • Firewall Security: IP and MAC Address Binding • Guest Network: 2.4GHz Guest Network • Protocols: IPv4, IPv6
