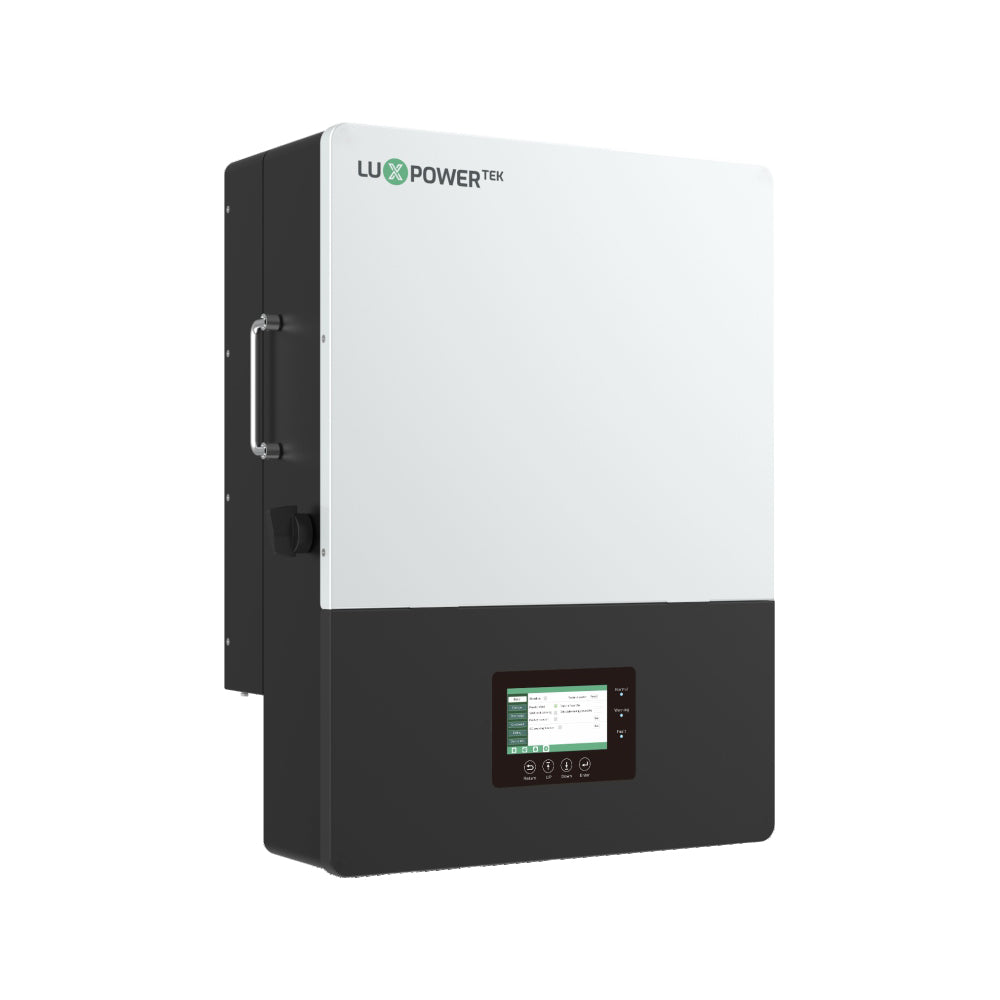

LUXPOWER LXP-LB-EU-12K 12KW SINGLE-PHASE HYBRID ON-GRID 3X MPPT INVERTER

FEATURES • 12kW High Output Performance - Delivers reliable power for residential and light commercial energy demands • Triple MPPT Technology - Maximises solar harvesting with 3 independent MPPT inputs • Hybrid Energy Management - Seamlessly integrates solar, battery, grid and generator power • Fast UPS Switching - <20ms transfer ensures uninterrupted power during outages • High Efficiency Design - Up to 99% efficiency for optimised energy conversion • 250A Charge and Discharge Capability - Enables rapid battery charging and high load support • Parallel Expansion Support - Scale systems with up to 10 units in parallel • Smart Load Control - Prioritises and manages energy usage efficiently • AC Coupling Support - Ideal for upgrading existing solar installations • IP65 Rated Enclosure - Durable design for indoor and outdoor installations SPECIFICATIONS PV INPUT (DC) • Max. PV Array Power: 18,000W • Rated PV Input Voltage: 360V • MPPT Voltage Range: 120~480V • PV Voltage Range: 100~600V • MPPT Inputs: 3 BATTERY • Battery Type: Lithium-Ion and Lead-Acid • Nominal Voltage: 48V • Voltage Range: 40~60V • Max. Charge and Discharge Current: 250A • Max. Charging Power: 12,000W AC OUTPUT (GRID) • Rated Output Power: 11,500W • Rated Voltage: 230V • Frequency: 50Hz • Rated Output Current: 50A • Power Factor: 0.99 UPS OUTPUT • Rated Output Power: 11,500W • Rated Voltage: 230V • Output Frequency: 50/60Hz • Switching Time: 20ms EFFICIENCY • Max. Efficiency: 99% • MPPT Efficiency: 99% • EU Efficiency: 97.5% • Max. Charging Efficiency: 96% • Max. Discharging Efficiency: 94% PROTECTION • PV Reverse Polarity Protection: Yes • Over Current and Over Voltage Protection: Yes • Anti-Islanding Protection: Yes • AC Short Circuit Protection: Yes • Leakage Current Protection: Yes • Surge Protection: Type III GENERAL • Ingress Protection: IP65 • Cooling: Fan • Noise Level: <50dB • Display: Colour Touch LCD • Communication: RS485, Wi-Fi, CAN • Dimensions: 490 × 670 × 265mm • Weight: 50kg
