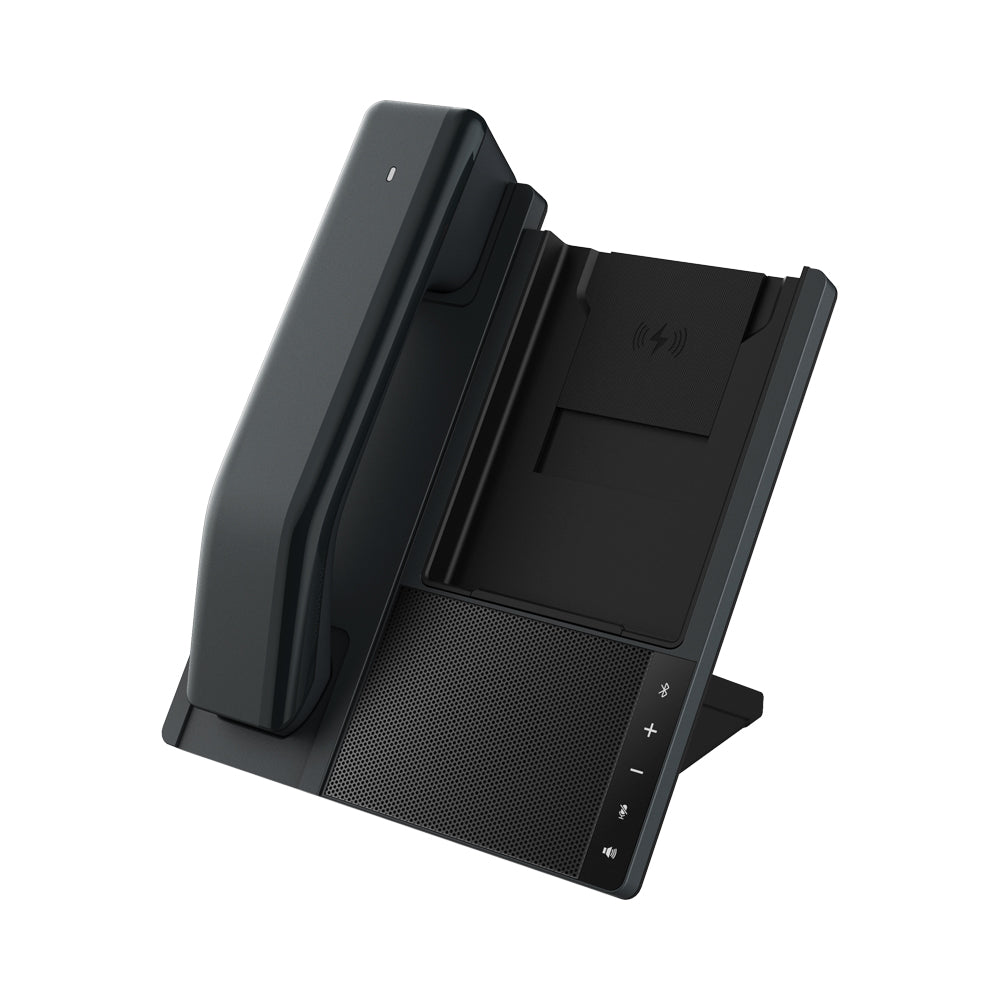

LINKVIL DB20-H ALL-IN-ONE PHONE STATION

FEATURES: • All-in-One Design - Combines speakerphone, wireless handset and charging dock to reduce desk clutter • Seamless Device Switching - Effortlessly switch between PC softphones and smartphone calls • Wireless Handset with Bluetooth 5.4 - Reliable connection with up to 10m range and anti-interference performance • Dual Microphone with ENC and ANS - Clear voice pickup with advanced noise reduction for improved call quality • 10W Wireless Charging - Conveniently charge smartphones while working • USB Type-C Connectivity - Easy connection to PC for unified communication platforms • Instant Access Controls - Quick buttons for call handling, volume, mute and Bluetooth • Adjustable Tilt Stand - Optimised viewing angle for video calls and daily use SPECIFICATIONS BASE • Microphone: 2× Omnidirectional Analogue Microphones • Voice Pickup Range: 1.5m • Sensitivity: -32dBFS • Frequency Range: 45Hz~7kHz • SNR: >65dB(A) • Full Duplex: Supported • Beamforming: Supported • ENC: Environmental Noise Cancellation • ANS: Adaptive Noise Suppression • AGC: Automatic Gain Control • Reverberation Reduction: Supported SPEAKERPHONE • Speaker Size: ø40mm • Rated Power: 4Ω 3W • Sensitivity: 87dB ±2dB • Frequency Range: 195Hz~20kHz • Impedance: 4Ω @1kHz • Max Input Power: 5W • Music Mode Bandwidth: 195Hz~20kHz • Speak Mode Bandwidth: 195Hz~8kHz • Audio Codec: SBC • Power Supply: 12V 1.5A • Power Consumption: Max. 18W WIRELESS HANDSET • Microphone: 1× Omnidirectional Analogue Microphone • Sensitivity: -38dBFS • Frequency Range: 45Hz~8kHz • Battery Type: Lithium Polymer • Battery Capacity: 300mAh • Talk Time: up to 18 Hours • Charging Time: 3.5 Hours • Standby Time: up to 21 Hours (Auto Sleep After 10 Minutes) • HAC: Hearing Aid Compatible WIRELESS CHARGING • Charging Coils: 1× • Output Power: 10W • Effective Charging Distance: 3~5mm (Centre Aligned) CONNECTIVITY • Base Connectivity: USB Type-C / Bluetooth • Wireless Handset: Bluetooth • Bluetooth Version: 5.4 • Profiles: A2DP, HSP, HFP • Operating Range: up to 10m • Pairing Capacity: up to 8 Devices • Simultaneous Connections: 2× PHYSICAL • Dimensions: - Base: 204.8 × 174.9 × 114.8mm - Handset: 203.7 × 45.8 × 47mm • Weight: - Base: 561g - Handset: 190g • Operating Temperature: -10~60°C • Operating Humidity: 10~95% RH
