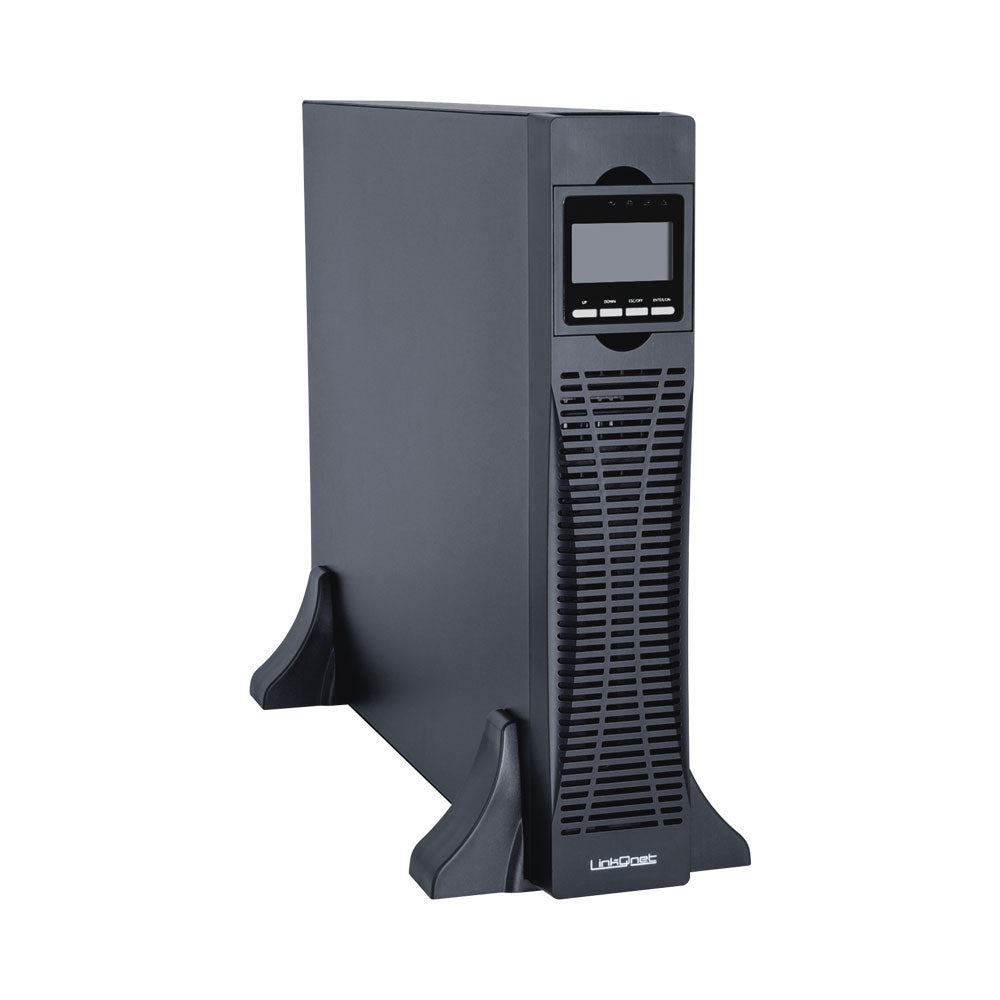

LINKQNET MP 6KVA XRT 2U RM ONL UPS NO BATT,.

FEATURES • Rack and Tower Convertible LCD Design - Flexible installation with clear status monitoring • 2U Rackmount Form Factor - High power density for efficient use of standard 19" racks • Online Double-Conversion Topology - Full digital control for continuous clean power output • Wide Input Voltage Range - Operates from 110~286Vac for improved utility tolerance • Generator Compatible Operation - Stable performance when powered by generators • ECO Mode Functionality - Energy-saving operation to improve overall efficiency • Comprehensive Communication Interfaces - RS232, USB and EPO for monitoring and control • Cold Start Capability - Allows UPS startup without utility power • Intelligent Fan Speed Control - Automatically adjusts cooling for quieter operation and longer fan life • Advanced Protection Systems - Safeguards against short-circuit, overload, overheat, battery overcharge and over-discharge, output low voltage and fan fault conditions • Battery-Ready Design - Requires external batteries for flexible runtime configuration • Enterprise-Grade Reliability - Built for data centres and critical IT environments SPECIFICATIONS Capacity • Rated Power: 6,000VA / 5,400W Input • Nominal Voltage: 208 / 220 / 230 / 240Vac • Input Voltage Range: 110~286Vac • Power Factor: ≥0.99 • Bypass Voltage Range: Max. Voltage 220V +25% (Optional +10%, +15%, +20%), 230V +20% (Optional +10%, +15%), 240V +15% (Optional +10%), Min. Voltage: –45% (Optional –20%, –30%) Battery • Battery Type: VRLA • Charging Current: 1A (Standard) / 10A (High) Frequency • Frequency Range: 40~70Hz Output • Output Voltage: 208 / 220 / 230 / 240Vac • Output Power Factor: ≥0.99 • Output Frequency: Line Mode: ±1% / ±2% / ±4% / ±5% / ±10% (Optional), Battery Mode: 50Hz / 60Hz • Crest Factor: 3:1 • Output Waveform: Pure Sinewave • Harmonic Distortion (THDv): ≤2% (Linear Load), ≤5% (Non-Linear Load) Transfer Time • AC Mode to Battery Mode: 0ms • Inverter to Bypass: 0ms Overload Capability • Line Mode: ≤110% load for 60 minutes, ≤125% load for 10 minutes, ≤150% load for 200ms, 150% Immediate Transfer to Bypass • Bypass Mode: 40A (Breaker) Efficiency • Operating Efficiency: ≥92% Standards and Protection • Safety Standard: IEC / EN 62040-1 • EMI: IEC / EN 62040-2 • EMS: IEC / EN 62040-2 • Ingress Protection: IP20
