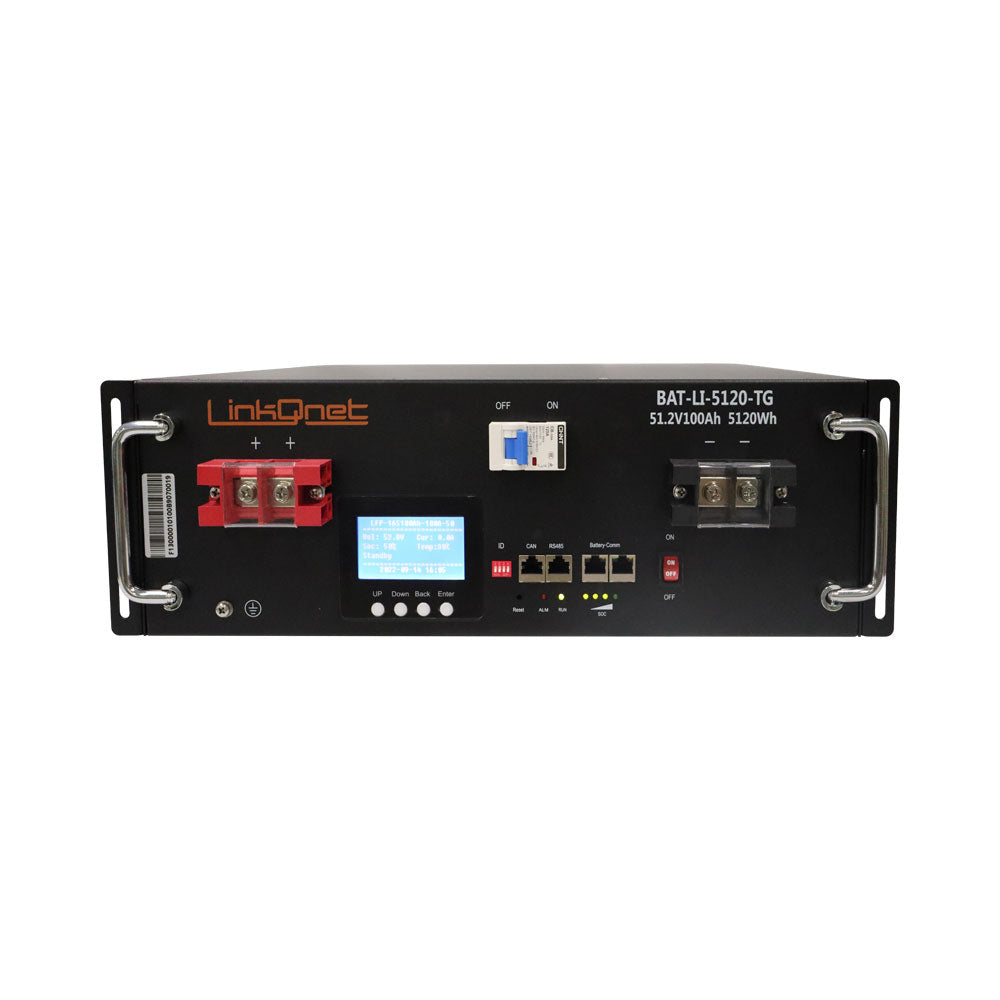

LINKQNET LIFEPO4 51.2V 100AH RACKMOUNT BATTERY PACK WITH CAN BMS

FEATURES • High Density Solution: The battery pack is expertly constructed from premium materials and complies with all major safety and performance SPECIFICATIONS • The core cell storage consists of sixteen new Lithium-Ion Phosphate (LFP) prismatic cells manufactured by Hefei Guoxuan Hi-Tech Power Energy Co., Ltd • Guoxuan are the manufacturers of choice for leading German EV brands and well as many other electric vehicle manufacturers • Innovative Battery Management System: The BMS has been designed with the experience of over ten years of battery management involvement • It uses internationally sourced components to ensure consistency, performance and reliability • The firmware is interactively developed and robust • The flexibility of both CAN bus and RS485 communications allows for a wide range of applications • The LCD display allows a clear overview of the battery state of charge and condition without the need for interfacing to a computer SPECIFICATIONS BASIC PARAMETERS • Rated Voltage: 51.2 Volts • Rated Capacity: 100 Amp Hours • Rated Energy: 5120 Watt Hours • Rating: 1C • • OPERATING PARAMETERS • Operating Voltage Range: 44.8 Volts - 56.0 Volts • Charge Voltage Range: 55.2 Volts - 56.0 Volts (Typical Inverter Bulk/Float Charge can be set to 55.3V) • Cut-Off Voltage: 44.8 Volts (Typical Inverter Cut Off can be set to 46.0V) • Recommended Charge Current: 50 Amps • Maximum Charge Current: 100 Amps • Maximum Discharge Current: 100 Amps • • PHYSICAL PARAMETERS • Dimensions: 442mm (D) x 470mm (W) x 154mm (3.5U - high) • Weight: 46kg • Communication Ports: RS485 (For programming) , CAN bus, 2x Inverter Battery-Comm / Stacking Ports • Display: LED and LCD with cursor keys for BMS Status and State of Charge • Output Terminal: 2x M6 Bolts for Positive, 2x M6 Bolts for Negative • Output Protection: Internal Electronic Circuit Disconnecter, 125 Amp DC Circuit Breaker • • ENVIRONMENTAL • Humidity: 5% - 95% Relative Humidity • Charge Temperature Range: 0°C to 45°C • Discharge Temperature Range: -20°C to 60°C • Storage Temperature Range: -20°C to 45°C • • SERVICE LIFE • Cycle Life: More than 6000 Cycles at 50 Amp Discharge Rate and 80% Depth of Discharge • Hardware Design Life: Fifteen Years • Warranty: Five Years, based on the terms and conditions of the warranty policy • • CERTIFICATION • Safety: CE, EMC, TUV (IEC62619), UL1973 • Transportation: UN38.3 • • INSTALLATION • Inverter Integration to BMS: Requires customised cable for each specific inverter brand, refer to manual • Inverter Integration without BMS: Will emulate Lead Acid battery, can be optimised by altering inverter parameters • BMS base protocol compatibility: Voltronic “LIb" BMS protocol / Optional Pylontech BMS protocol • Addressable Parallel Stacking: Battery packs can be paralleled up to sixteen addressable units per solution • Installation Competency: Not consumer installable. Needs to be wired into inverter/UPS by a qualified electrical contractor with appropriate experience.
