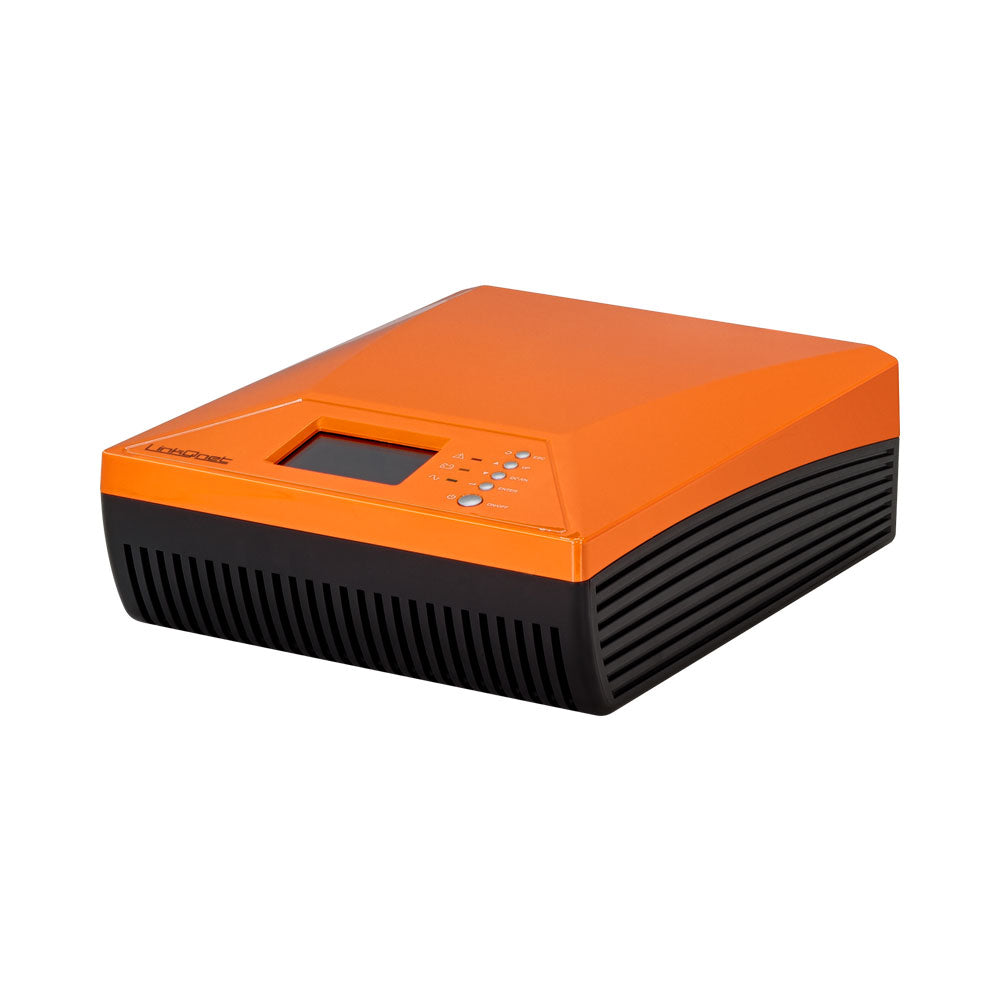

LINKQNET G3 230V, 2KVA, 1600W, 24V DC INV, 50A SCC

FEATURES • 2kVA 1600W Power Output - Delivers stable 230V AC power for essential loads • Integrated Solar Charge Controller - Built-in 50A SCC for efficient solar charging • Pure Sinewave Output - Safe for sensitive electronics and IT equipment • 24V DC Battery System - Requires 2× 12V batteries for simple setup • Compact and Efficient Design - Ideal for space-conscious installations • Reliable Backup Power Solution - Suitable for residential and light commercial use SPECIFICATIONS General • Capacity: 2000VA / 1600W • Nominal Battery Voltage: 24V DC AC Input (Line Mode) • Nominal Input Voltage: 230V AC • Voltage Range (Narrow): 170~280V AC • Voltage Range (Wide): 90~280V AC • Input Frequency: 50Hz / 60Hz (Auto Detection) AC Output (Line Mode) • Output Voltage: 230V AC • Frequency / Waveform: Following Utility Supply Transfer Time • Typical Transfer Time: 20ms AC Output (Backup Mode) • Output Voltage: 230V AC (+10% / −18%) • Output Frequency: 50Hz / 60Hz (Auto Detection) • Waveform: Simulated Sinewave Protection Features • Battery Over-Discharge Protection • Battery Over-Charge Protection • Over-Load Protection • Over-Temperature Protection • Short-Circuit Protection Battery Charger (AC Charging) • Charging Algorithm: 3-Step Charging • AC Charging Current: 10A / 20A Selectable • Floating Charging Voltage: 27.5V ±0.50V • Over-Charging Voltage: 30.6V Solar Battery Charger (PWM) • Maximum PV Input Power: 1200W • Charging Current (PWM): 50A • System DC Voltage: 24V DC • Optimal PV Working Voltage Range: 30~32V • Maximum PV Input Voltage: 60V • Maximum PV Input Current: 50A Physical • Dimensions (D × W × H): 316 × 227 × 92mm • Net Weight: 3.3kg Environmental • Operating Temperature: 0~50°C • Operating Humidity: 0~90% RH (Non-Condensing) • Storage Temperature: −15~55°C • Storage Humidity: 0~90% RH (Non-Condensing) • Noise Level: <50dB
