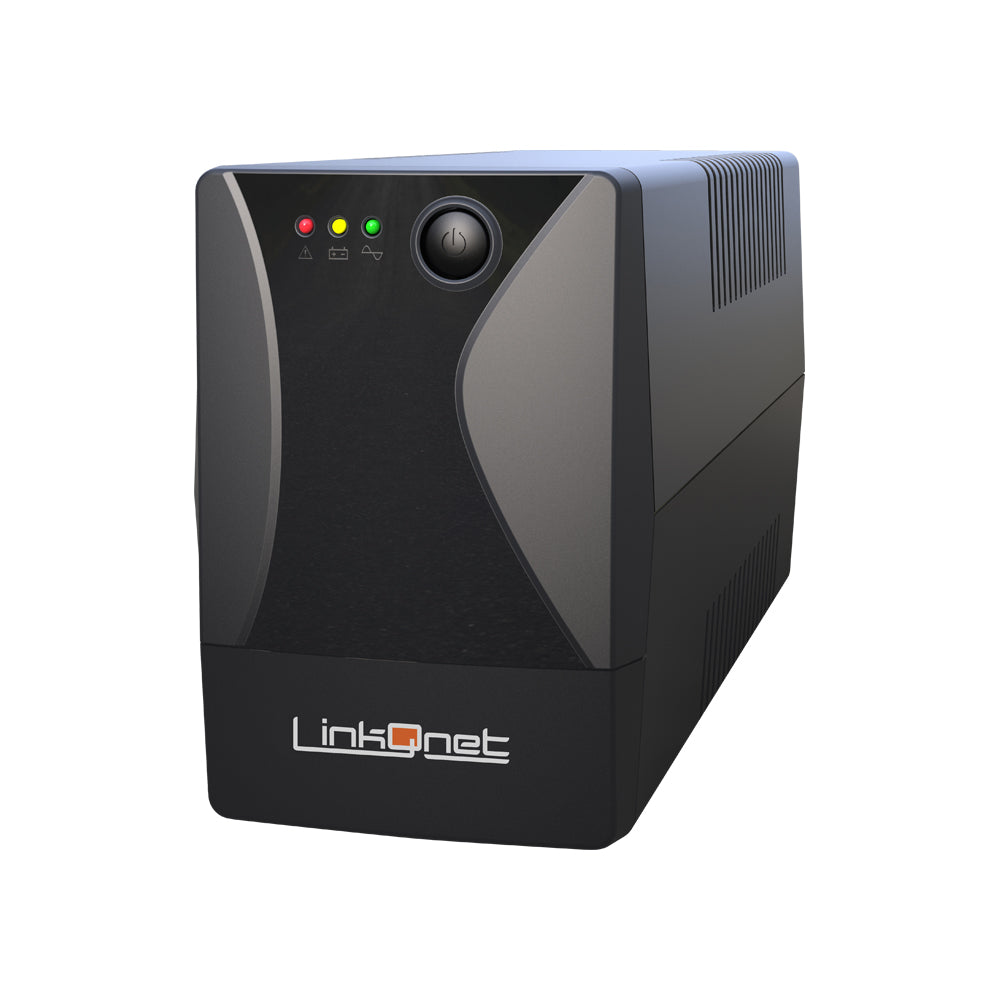

LINKQNET 800VA/480W 230V/50HZ LED DISPLAY 9AH

FEATURES • Comprehensive power protections for surges and spikes • Boost and buck AVR for voltage stabilisation • Built-in self-diagnostic function • Supports cold-start • Supports off-mode charging • Auto restart while AC is recovering SPECIFICATIONS • Capacity: 800 VA (480 W) • Input Voltage: 230 Vac • Input Voltage Range: 140 V ~ 300 V AC • Input Frequency: >40 Hz (Auto-Sensing) • Output Voltage Regulation (Battery Mode): 220 V / 230 V / 240 V ± 10% • Output Frequency (Battery Mode): 50 Hz ± 1 Hz or 60 Hz ± 1 Hz • Transfer Time: Typical 4 – 8 ms (Max ~13 ms) • Output Waveform (AC Mode): Simulated sinewave • Battery Configuration: 1 × 12 V 9 Ah • Max Charge Current: 1 A • AC Mode: Green Light (no LCD) • Battery Mode: Orange Flash • Fault: Red Light • Protection: Short-Circuit, Overload, Over-Charge and Over-Discharge • Battery Mode: Sounding every 10 s • Low Battery: Sounding every 1 s • Overload: Sounding every 0.5 s • Fault: Continuous alarm • Approx. Dimensions (D × W × H): 306 × 86 × 140 mm • Operating Environment: 0 – 90% RH @ 0 – 40°C (non-condensing) • Noise Level: Less than 40 dB
