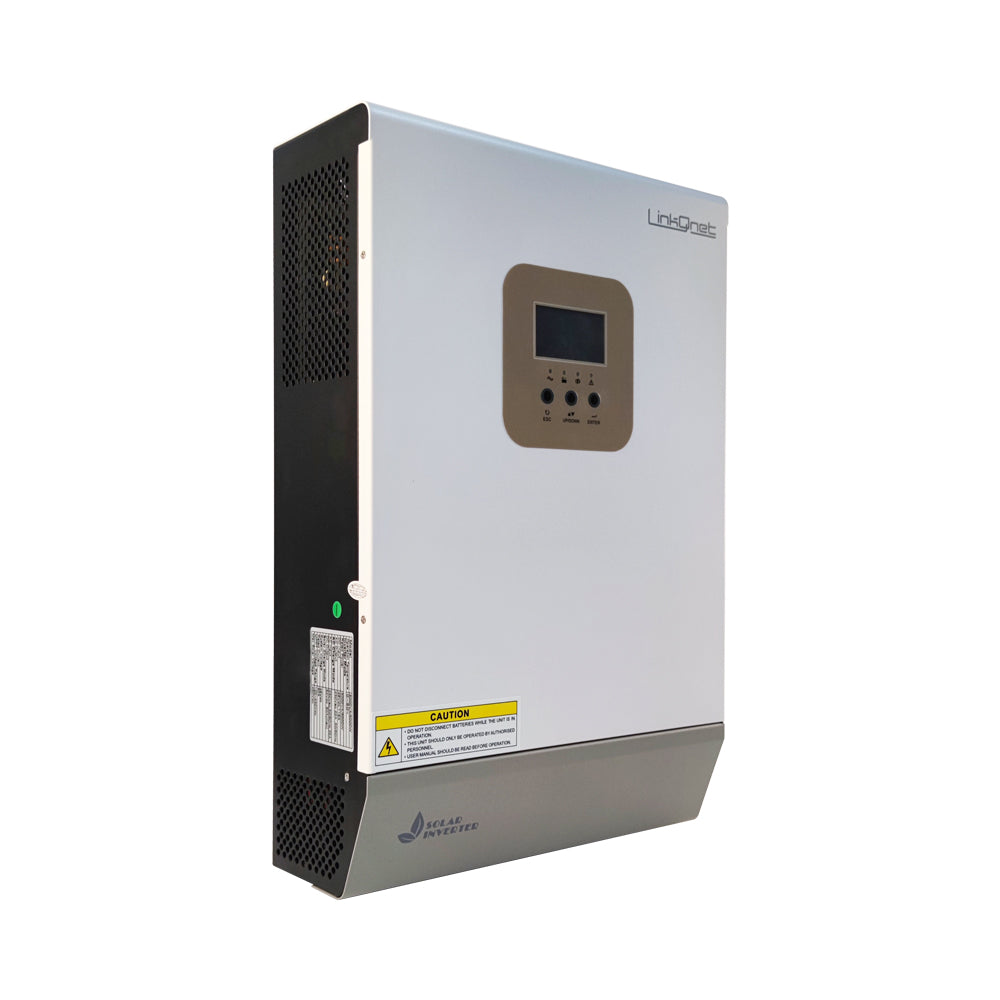

LINKQNET 5KW OFF-GRID / GRID BACKUP MPPT SOLAR INVERTER

FEATURES • 5KW Pure Sinewave Inverter - Delivers stable and clean power for sensitive electronic equipment • True Off-Grid Or Grid Backup Operation - Suitable for hybrid solar and backup power installations • Built-In 5500W MPPT Solar Charger - High-voltage MPPT charger with up to 450V DC input • 80A AC And Solar Charging - Efficient battery charging for demanding energy storage systems • Parallel Capable Design - Supports up to 9 units in single-phase or three-phase configurations • Unity Power Factor Output - Full 5000W real power output performance • Battery Independent Operation - Can operate without batteries when MPPT voltage exceeds 130V DC • Multiple Battery Compatibility - Supports Flooded, AGM, GEL, Li-Ion, LiFePO4 and Super Capacitor batteries • Configurable Power Management - Adjustable charging current and AC/Solar priority settings • UPS Transfer Functionality - Fast transfer times for backup power applications • Generator Compatible - Works with mains utility or generator power sources • Smart Battery Charging - Optimised charging performance for improved battery lifespan • Auto Restart Function - Automatically resumes operation when AC or PV power returns • Comprehensive Protection Features - Includes overload, over-temperature and short circuit protection • Optional Wi-Fi Monitoring - Supports cloud-based data logging via optional Wi-Fi dongle • RS485 And CANbus BMS Support - Compatible with LinkQnet LiFePO4 battery systems • Cold Start Function - Allows startup directly from battery power • Non-Export Design - Prevents power feedback towards the utility grid or generator SPECIFICATIONS INVERTER • Peak Power: 5000VA (10000VA Surge for Max 10 Seconds) • RMS Power: 5000W (PF=1) • AC Voltage: 230V Adjustable (220V - 240V) • AC Waveform: Pure Sinewave • Frequency: 50Hz / 60Hz Auto Sensing • Peak Efficiency: >94% • DC Voltage: 48V • Transfer Tolerance: 170V - 280V UPS Mode / 90V - 280V Appliance Mode • Transfer Time: 10ms UPS Mode / 20ms Appliance Mode CHARGING • AC Charging Current: 80A Adjustable • Solar Charge Controller Type: MPPT • SCC Voltage Range: 120V - 430V DC • Maximum PV Open Circuit Voltage: 450V DC • Maximum SCC Power: 5500W • SCC Charging Current: 80A Adjustable • Maximum Combined Charging Current: 80A Adjustable • SCC Efficiency: 98% OPTIONS AND COMMUNICATION • Parallel Support: Up to 9 Units in 1PH or 3PH • Communication Port: USB-B • BMS Support: RS485 / CANbus • Wi-Fi Support: Optional Wi-Fi Cloud Logging Dongle • Relay Support: NC / NO Relay Port for Generator Start Or Remote Devices BATTERY SUPPORT • Supported Battery Types: Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom • Compatible Battery Technologies: LiFePO4, VRLA AGM, GEL and Super Capacitors PHYSICAL • Dimensions: 110 × 300 × 440mm • Weight: 8.45kg ENVIRONMENT • Operating Humidity: 5% - 95% Non-Condensing • Operating Temperature: 0°C - 40°C • Installation Environment: Indoor Use Only INSTALLATION • Input Isolator And SPD: 40A - 63A Dual Pole Recommended • Input Circuit Breaker: 40A Normal Curve Recommended • Output Circuit Breaker: 25A Normal Curve Recommended • Bypass Switch: 40A - 63A Dual Pole Double Throw with Centre Off Recommended • Output Isolator: 25A - 63A Dual Pole Recommended • Earth Leakage Relay: 63A with 30mA Break Leakage Recommended • Installation Requirement: Qualified Electrician Required with CoC Compliance
