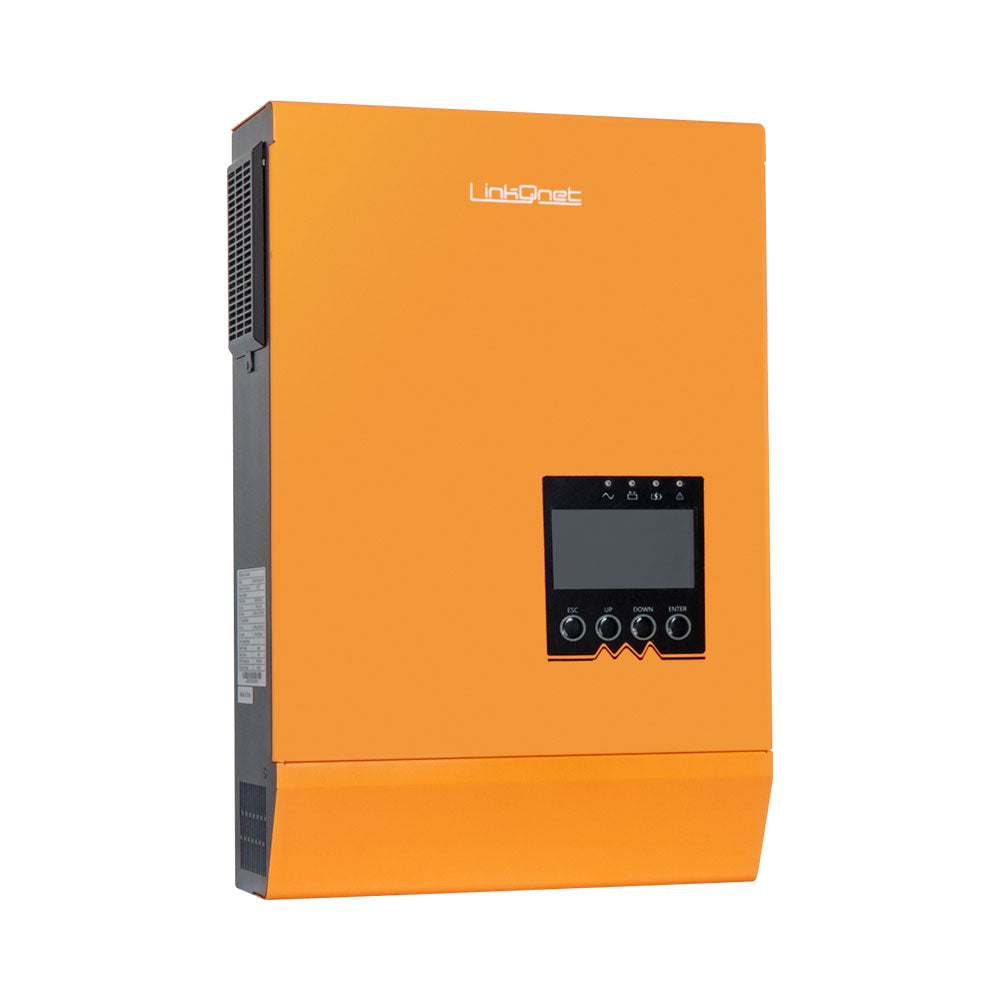

LINKQNET 3KVA 24V INVERTER WITH 1500W 145V MPPT

FEATURES • Pure sinewave inverter at full 3000W RMS power • Built-in MPPT medium voltage solar charge controller (145V DC MAX) • Configurable input voltage range for home appliances or UPS transfer (<10ms) • Configurable battery charging current based on application • Configurable AC/Solar charger priority • Battery independent design (MPPT voltages > 80V DC) • Compatible with mains or generator power • Auto restart when AC recovers or PV power is available • Overload / over temperature / short circuit protection • Smart battery charger design for optimised battery performance • Cold start function SPECIFICATIONS INVERTER • Peak Power: 3000VA (6000VA surge for max 10 seconds) • RMS Power: 3000W (PF=1) • AC Voltage: 230V • AC Waveform: Pure Sinewave • Efficiency (peak): 0.935 • DC Voltage: 24V (Can operate without batteries if MPPT voltage > 80V DC) • Transfer Tolerance: 170V to 280V (UPS mode) / 90V to 280V (Appliance mode) • Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode) CHARGING • AC Charge: 60A (Adjustable) • SCC Type: MPPT • SCC Voltage: 30V – 115V DC • Max PV OC Voltage: 145V DC • Max SCC Power: 1500W • SCC Charge: 60A (Adjustable) • Max Combined Charge: 120A (Adjustable) • SCC Efficiency: 0.98 • Standby Power Consumption: 2W OPTIONS • Parallel Capable: No • Communication: RS-232 / USB-A • Battery Types: Flooded, AGM, GEL, Li-Ion, Super capacitor, Custom • BMS Support: No – Third party solution can be used • Warranty: Two years – Conditional PHYSICAL • Weight: 8.20kg • Dimensions (D × W × H): 110 × 300mm × 440mm • Operating Humidity: 5% to 95% Relative humidity (Non-condensing) • Operating Temperature: 0°C to 40°C (Room temperature) INSTALLATION • Installation Environment: Indoor environment with no exposure to direct external air in coastal regions • Input Isolator: 25A–63A dual pole (To be purchased) • Input Circuit Breaker: 20A normal curve (To be purchased) • Output Circuit Breaker: 15A normal curve (To be purchased) • Bypass Switch: 25A–63A dual pole, double throw with centre off (To be purchased) • Output Isolator: 25A–63A dual pole (To be purchased) • Earth Leakage Relay: 40A–63A with 30mA break leakage for plug circuits (To be purchased) • Installation Competency: Not consumer installable. Needs to be wired into building electrical system. Requires qualified electrician with CoC for municipal and insurance compliance.
