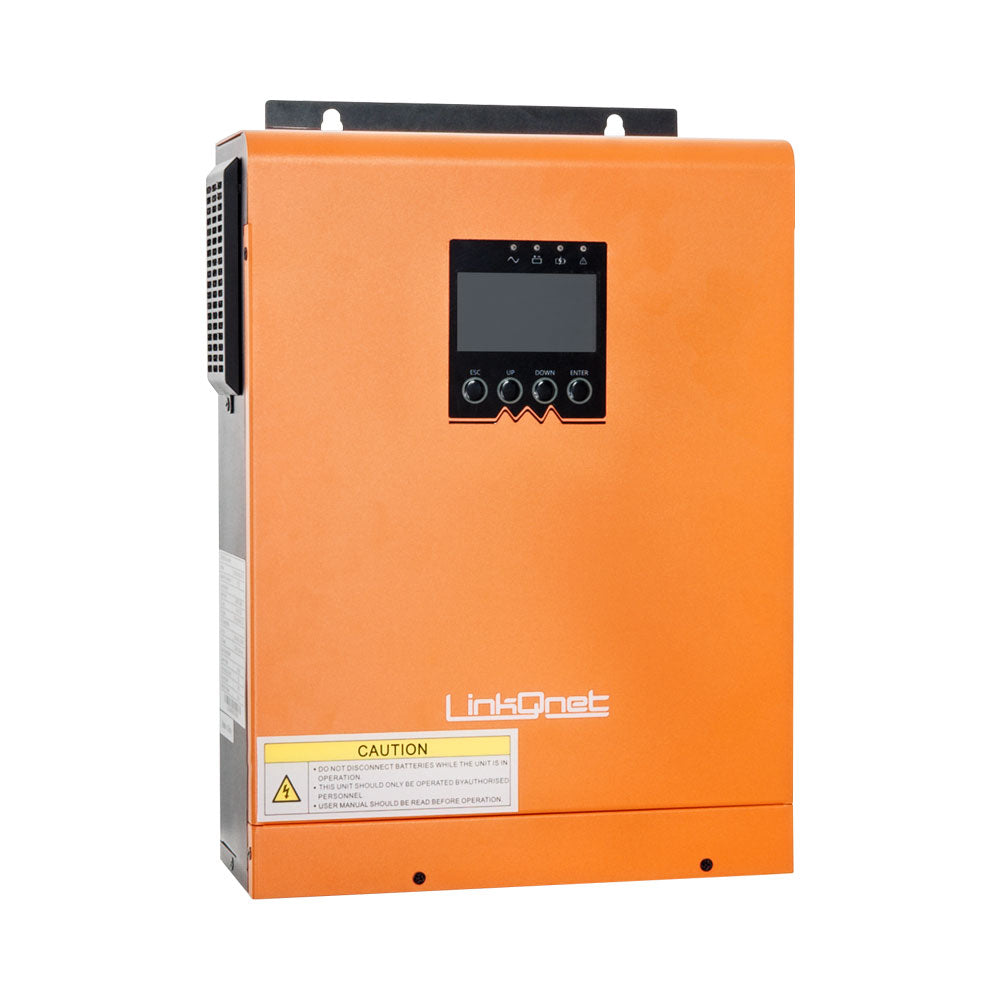

LINKQNET 3KVA/2.4KW 24V INVERTER WITH 60A PWM SCC

FEATURES • Pure sinewave inverter with 2400W RMS power (3000VA) • Built-in 50A PWM solar charge controller • Configurable input voltage range for home appliances or UPS transfer (<10ms) • Configurable battery charging current based on application • Configurable AC/solar charger priority • Can be wired to be powered from a standard South African 15A plug socket • Compatible with mains or generator power • Auto restart when AC recovers or PV power is available • Overload / over temperature / short circuit protection, variable speed low noise fans • Smart battery charger design for optimised battery performance • Cold start function SPECIFICATIONS INSTALLATION • Peak Power: 3000VA (6000VA Surge for Max 2 Seconds) • RMS Power: 2400W (PF=0.8) • AC Voltage: 230V • AC Waveform: Pure Sinewave • Efficiency (Peak): 0.93 • DC Voltage: 24V • Transfer Tolerance: 185V to 264V (UPS Mode) / 154V to 264V (Appliance Mode) • Transfer Time: <10ms (UPS Mode) / <20ms (Appliance Mode) CHARGING • AC Charge: 40A (Adjustable) • SCC Type: PWM • SCC Operating Voltage: 36V – 72V DC • Max PV OC Voltage: 85V DC • Max SCC Power: 1200W • Max SCC Charge: 50A • Max Combined Charge: 90A (Adjustable) • SCC Efficiency: 0.95 OPTIONS • Standby Power Consumption: 2W • Parallel Capable: No • Communication: RS-232 / USB-A • Battery Types: Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom • BMS Support: No – Third Party Solution Can Be Used • Warranty: Two Years – Conditional PHYSICAL • Weight: 4.20kg • Dimensions (D × W × H): 100 × 240 × 330mm • Operating Humidity: 5% to 95% Relative Humidity (Non-Condensing) • Operating Temperature: 0°C to 40°C (Room Temperature) INSTALLATION • Installation Environment: Indoor Environment With No Exposure to Direct External Air in Coastal Regions • Input Isolator: Not Needed If Connected to a SANS Compliant 15A Wall Socket With EL Protection • Input Circuit Breaker: Not Needed If Connected to a SANS Compliant 15A Wall Socket With EL Protection • Output Circuit Breaker: Dual Pole 10A–15A (To Be Purchased), or Multi-Plug With Thermal Overload • Bypass Switch: 25A–63A Dual Pole, Double Throw With Centre Off (To Be Purchased) • Output Isolator: 25A–63A Dual Pole (To Be Purchased) • Earth Leakage Relay: 40A–63A With 30mA Break Leakage for Plug Circuits (To Be Purchased) • Installation Competency: Not Consumer Installable. Needs to Be Wired Into Building Electrical System. Requires Qualified Electrician With CoC for Municipal and Insurance Compliance.
