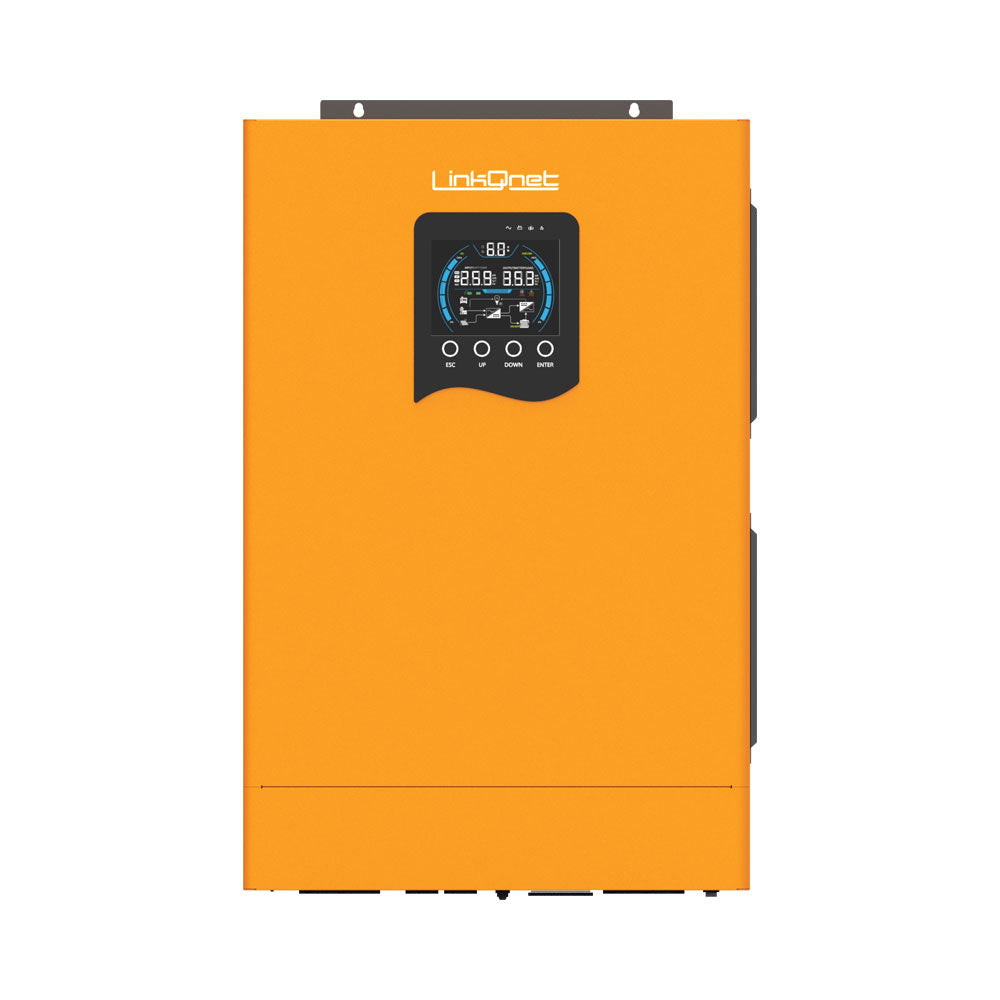

LINKQNET 10KVA DUAL OUTP 48V INV, 2X6KW 500V MPPT

FEATURES • Pure Sinewave Solar Inverter • Compatible with AC Mains or Generator Inputs • Considerable PV Input Types • Build-In Smart Solar Charger (PWM/MPPT) • Auto Restart while AC is Recovering • Configurable AC/Solar Input Priority via LCD Setting • Selectable Input Voltage Range for Home Appliances and Personal Computer Loads • Dual PV Input Max 36A SPECIFICATIONS • Rated Power: 10,000VA / 9,500W • Parallel Capability: Yes (optional), up to 4 units • Operation without Battery: No • Lithium Battery Communication: Yes • Dual Output: Yes INPUT • Voltage: 220/230/240VAC • Selectable Voltage Range: 170-264Vac (for personal computer), 90-280Vac (for home appliances) • Frequency Range: 50Hz/60Hz (auto sensing) OUTPUT • AC Voltage Regulation (Battery Mode): (220VAC-240VAC) ±5% • Surge Power: 20,000VA • Wave Form: Pure Sinewave • Inverter Efficiency (Peak): 0.94 • Transfer Time: 10ms (typical) BATTERY • Normal Voltage: 48VDC • Floating Charge Voltage (Settable): 55.2VDC • Overcharge Protection: 60VDC SOLAR CHARGER AND AC CHARGER • Max. PV Array Open Circuit Voltage: 500VDC • PV Array Voltage Range: MPPT 120-450VDC • Number of MPP Trackers: 2 • Max. PV Input Power: 12,000W (6000W ×2) • Max. PV Input Current: 18A ×2 • Max. Solar Charge Current: 100A ×2 • Max. AC Charge Current: 200A • Max. Charge Current: 200A COMMUNICATION • Interface: USB/RS485/CAN/DRY CONTACT • Wi-Fi Monitoring: Yes (optional) MECHANICAL SPECIFICATIONS • Machine Dimensions (H × W × D): 460 × 700 × 120mm • Package Dimensions (H × W × D): 805 × 530 × 200mm • Net Weight: 22.85kg • Gross Weight: 25.05kg CERTIFICATION • CE EMC standards (EN IEC 61000-6-3, EN IEC 61000-3-2, EN IEC 61000-3-3, EN IEC 61000-6-1) • VD standards (EN 62109-1, EN 62109-2) OTHER • Humidity: 5% to 95% Related Humidity (Non-condensing) • Operating Temperature: 0°C~40°C • Storage Temperature: -15°C~60°C
