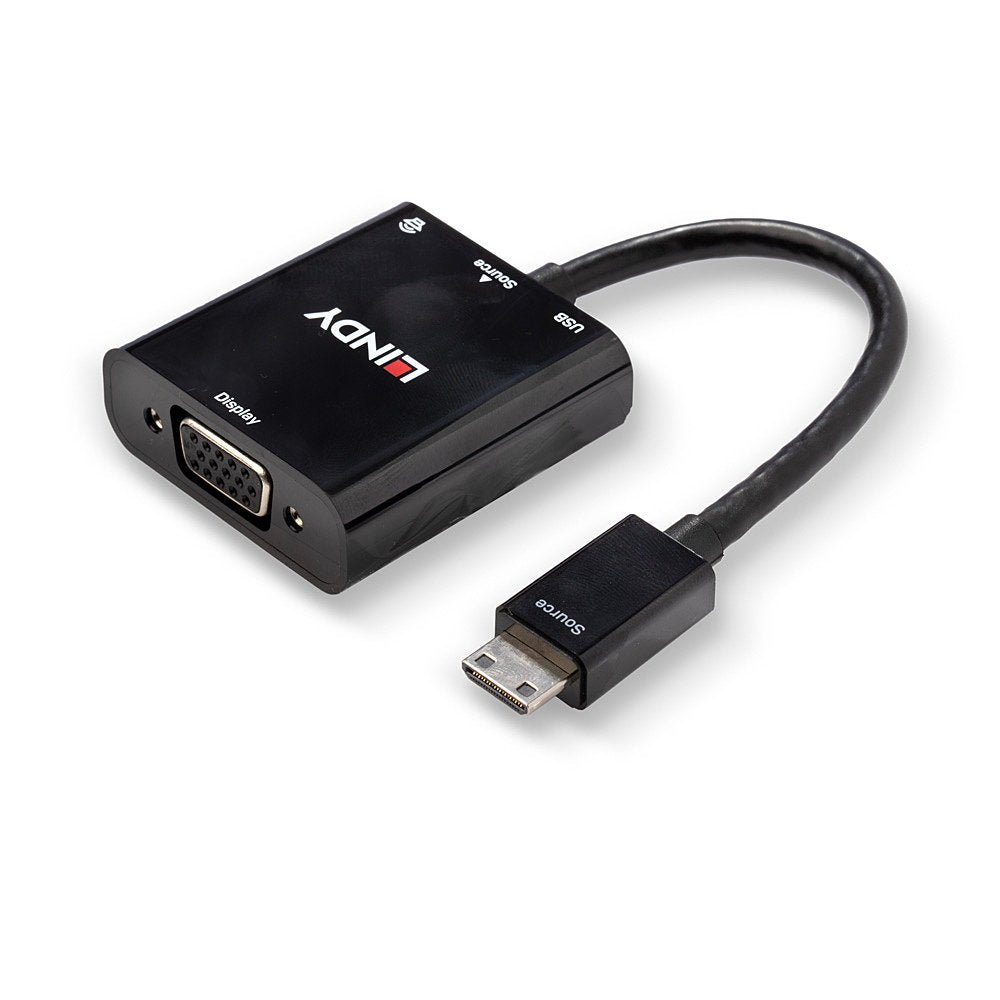

LINDY MINI HDMI TO VGA CONVERTER (38286)

FEATURES • Connects an Mini HDMI equipped device to a VGA display and analogue speakers • Supports resolutions up to 1920×1200 including 1080p • Direct signal conversion, without scaling • Compact dimensions for easy installation and use SPECIFICATIONS • AV Interface: HDMI to VGA and 3.5mm Stereo Audio • Interface Standard: HDMI 1.3, VGA • Supported Bandwidth: 180MHz • Maximum Input Resolution: 1920×1200 • Maximum Output Resolution: 1920×1200 @60Hz • Chipset: Algoltek AG6200A • Supported Audio: Pass-Through • Separate Audio Ports: 3.5mm Stereo Audio Socket • Special Features: USB Micro-B Socket for Power CONNECTORS • Input: Mini HDMI Type-C Male, USB Micro-B Female (Power) • Output: VGA Female, 3.5mm Stereo Audio Female PHYSICAL PROPERTIES • Dimensions (Approx.) W × D × H: VGA: 45 × 43 × 14.5mm, Mini HDMI: 21 × 14 × 7.8mm • Cable Length: 100mm • Housing Material: ABS • Jacket Material: PVC • Jacket Diameter: 4.8mm • Net Weight: 0.029kg • Operating Temperature: 0~70°C • Storage Temperature: -10~80°C • Humidity: 5~95% RH (Non-Condensing) • Colour: Black MISCELLANEOUS • Packaging Type: Polybag • Packaging Dimensions: 160 × 160 × 20mm • Gross Weight: 0.039kg • Product Compliance: CE, FCC, RoHS and REACH
