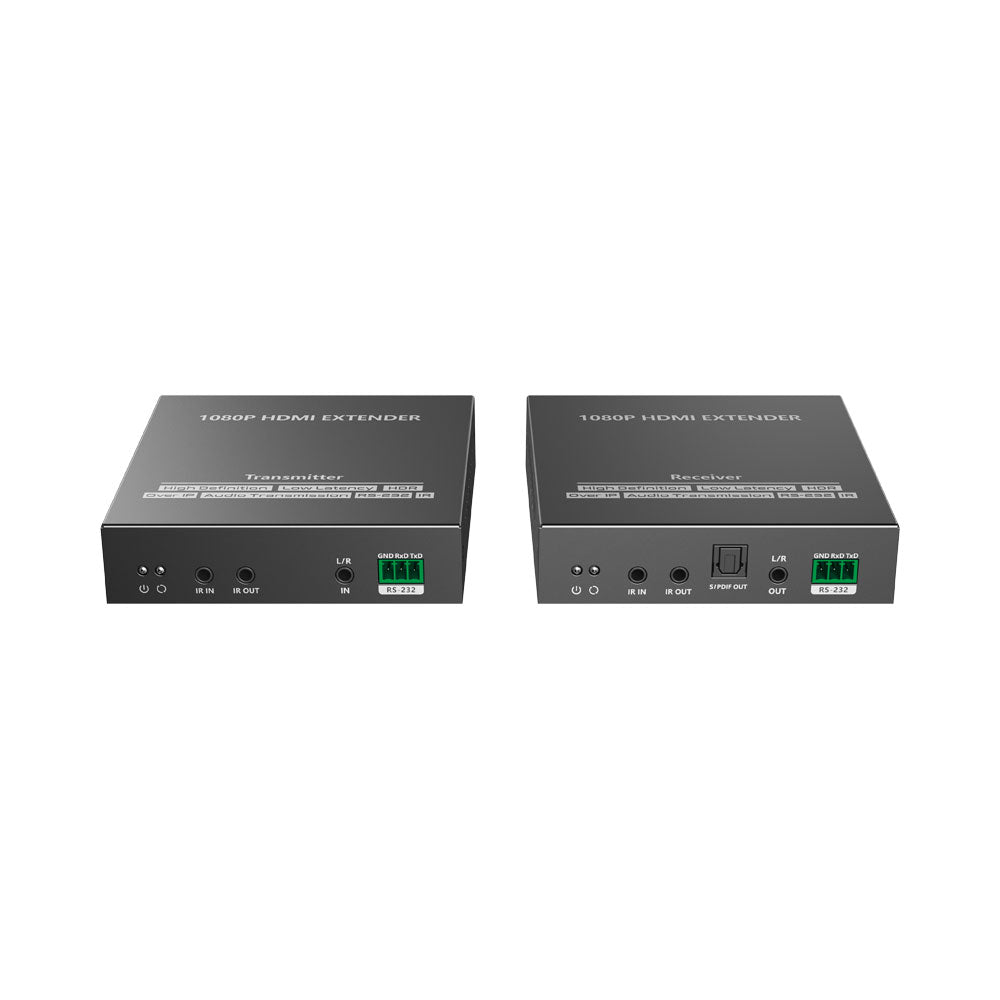

LENKENG UNCOMPRESSED 1080P HDMI / IP EXTENDER-150M

FEATURES • Adopting ipcolor PIXEL technology for uncompressed and low latency transmission • Supports up to 1080p @60Hz Resolution • Video signals can travel up to 150m over CAT6 or higher network cable • Supports one-to-many connection through a Gigabit switch or switch cascade • Supports HDR10 • Supports EDID pass-back • Supports RS232 passthrough • With HDMI loop-out on the transmitter • Supports bi-directional IR passthrough • The transmitter has a 3.5mm audio input for sound embedding • The receiver has an independent 3.5mm and S/PDIF audio output • Lightning, Surge and ESD protection SPECIFICATIONS • HDMI Cable Length: ≤5m • Compatibility: HDMI 1.4 (HDR10), HDCP 1.4 • Supported Resolutions: 1080p @24/25/30/50/60Hz, 720p @50/60Hz, 1024×768 @60Hz, 1280×800 @60Hz, 1280×960 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1600×900 @60Hz, 1600×1200 @60Hz, 1680×1050 @60Hz, 1920×1200 @60Hz, 480p @60Hz, 576p @50Hz, 1360×768 @60Hz (and other common resolutions) • Connection Types: One-To-One, One-To-Many, Switch Cascading • Transmission Distance: CAT6/6A/7 ≤150m • Transmission Latency: 16ms – 33ms • HDMI Audio Output: DTS-Audio / Dolby Digital 5.1 / LPCM 2.0 • S/PDIF Audio Output: LPCM 2.0 / DTS-Audio 5.1 / Dolby Digital 5.1 • 3.5 mm L/R Audio Output: PCM 2.0 • Audio Sampling Rates: 32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz • Audio bit Depth: 16-bit, 24-bit • IR Receiving Range: ≤5m • IR Frequency Range: 20~60kHz • RS232 Support: Standard GND / RxD / TxD, Default Baud Rate ~9600 (Varies By Device) • Power Supply: DC 5V 2A (Typical for TX and RX) • Power Consumption: TX <5W, RX <4W (Approx.) • Working Temperature Range: –20~60°C • Storage Temperature Range: –30~70°C • Humidity (No Condensation): 0~90% RH • Housing Material: Metal • Colour: Black • Dimensions (Approx.): TX and RX 106 × 103 × 25mm each • Protection: ESD Protection (Contact ±4kV / Air ±8kV), Lightning and Surge Protection
