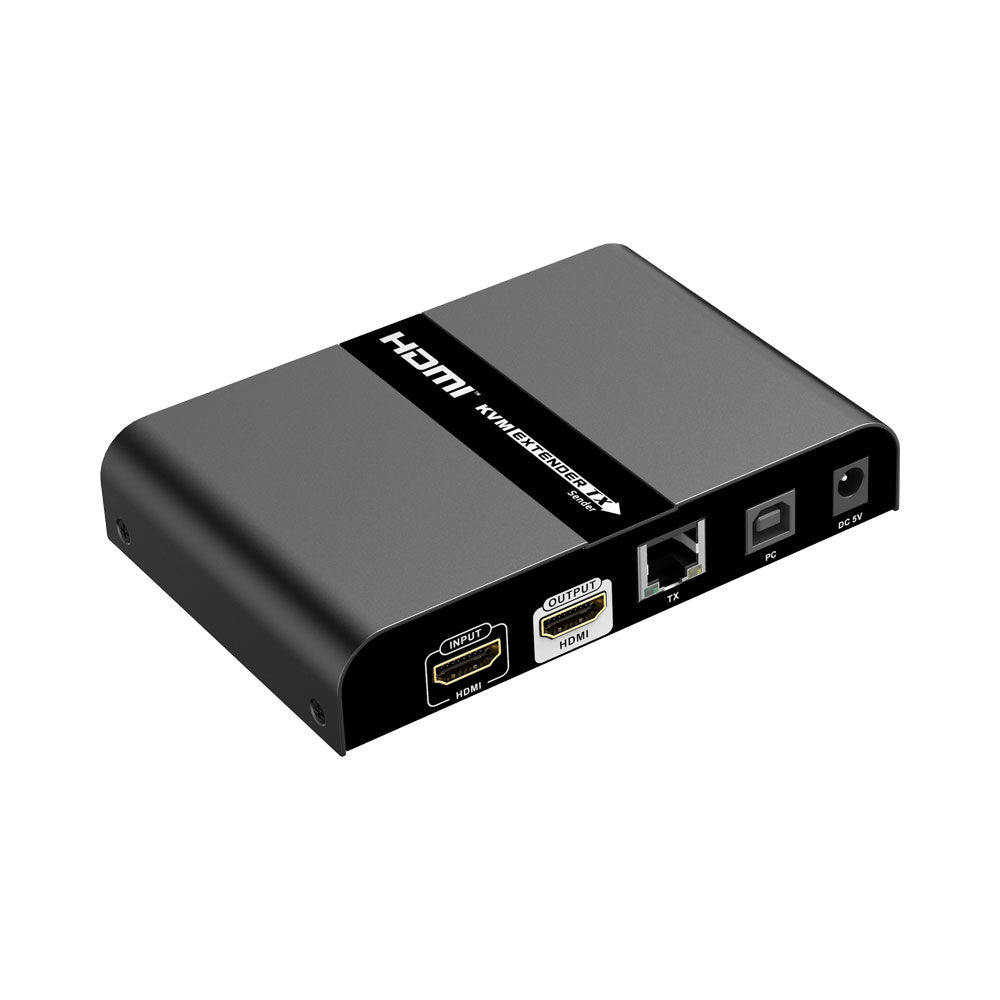

LENKENG LKV671KVM 100M 4K @30HZ HDMI KVM EXTENDER OVER CAT6/6A/7 CABLE- TRANSMITTER

FEATURES • Point-to-Point and One-to-Many • Near Zero Latency • Distance up to 100m - 4K @30Hz • HDCP2.2 • HDMI Loop-Out • Supports EDID Passback • Supports KVM Function SPECIFICATIONS • Power Supply: DC5V 1A • Power Consumption: TX <3W, RX <2W • HDMI Compliance: HDMI 1.4 • HDCP Compliance: HDCP 2.2 • Supported Resolutions: 800×600 @60Hz, 1024×768 @60Hz, 1280×720 @60Hz, 1280×800 @60Hz, 1280×1024 @60Hz, 1440×900 @60Hz, 1680×1050 @60Hz, 1920×1080 @60Hz, 2560×1080 @60Hz, 3840×2160 @30Hz, And 4096×2160 @30Hz • Supported Audio Formats: PCM, LPCM, Dolby, DTS • Max. Transfer Rate: 10.2Gbps • Input and Output TMDS Signal: 0.7~1.2Vp-p (TMDS) • Input and Output DDC Signal: 5Vp-p (TTL) • Supported Input Cable Length: ≤5m (AWG24) • Supported Output Cable Length: ≤5m (AWG24) • Transmission Length Over CAT6/6A/7: 100m • Electrostatic Protection: Contact Discharge Level 3 And Air Discharge Level 3 (IEC61000-4-2 Standard) • Working Temperature: 0~60°C • Storage Temperature: -10~70°C • Humidity Tolerance (No Condensation): 0~90% • Dimensions (L×W×H): 132.37×89.70×24.90mm • Material: Metal-Alloy with a Crystal Panel • Surface Finish: Powder Coating • Colour: Black • Weight: TX 320g, RX 310g
