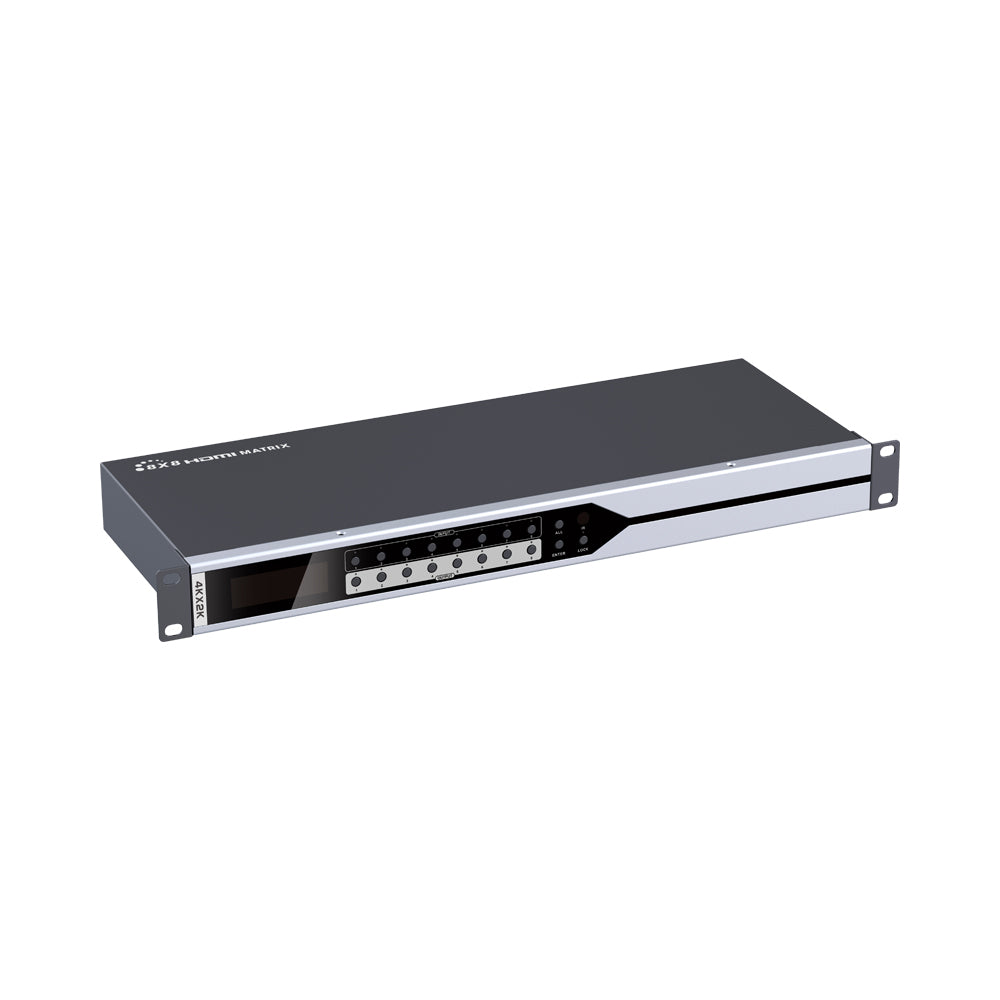

LENKENG 8X8 HDMI MATRIX SWITCH 4KX2K (30HZ)

FEATURES • Connect up to 8× HDMI Sources and Output to 8× Displays Simultaneously • Crystal-Clear 4K @30Hz Resolution • Ultra-Fast 10.2Gbps Transmission Data Rate • Easy IR Remote Control for Seamless Switching • RS232 Control for Advanced Integration • 3D Ready for Immersive Viewing • Pure Hardware, Plug-and-Play Design - No Software Needed • Quick Button Control for Effortless Input/Output Switching SPECIFICATIONS • HDMI Signal: HDMI 1.4, Fully Compatible with HDCP1.4 • Inputs: 8× HDMI • Outputs: 8× HDMI • Transmission Rate: 10.2Gbps • Supported Resolutions: 480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60 Hz, 1080i @50/60Hz, 1080p @50/60 Hz, 4K @25/30Hz • Supported Audio Formats: DTS-HD / Dolby-true HD / LPCM7.l / DTS / Dolby-AC3 / DSD • YUV: 4:2:2 • Video Signal: 0.5~1.5Vp-p (TMDS) • DDC Signal: 5Vp-p (TTL) • Video Bandwidth: 340MHz • HDMI Port: Type-A 19-pin, Female • RS232: Serial Control • Working Temperature: 0~60°C • Working Humidity: 0~90% (No Condensation) • Power Supply: DC12V 3A • Power Consumption: 27W (Max.) • Dimensions (L × W × H): 482.45 × 179.60 × 44.40mm • Weight: 2.07kg • Colour: Black
