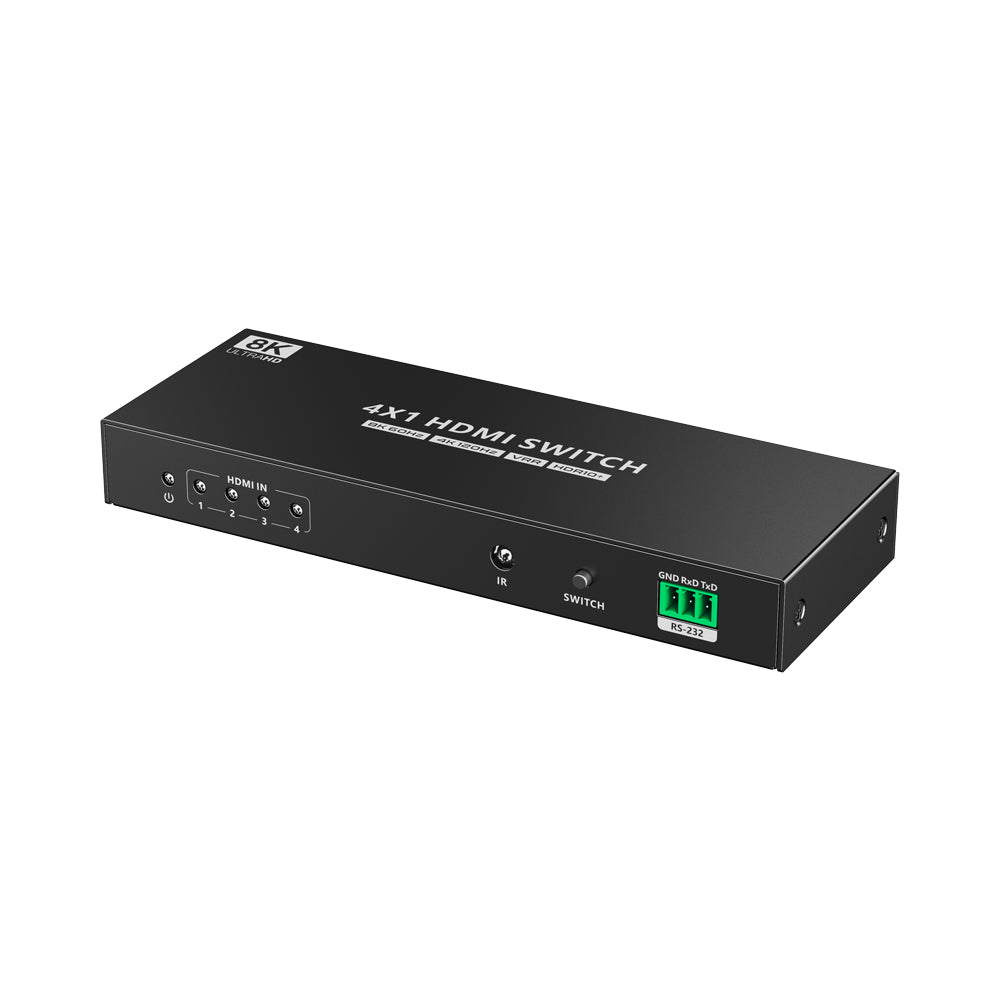

LENKENG 4X1 HDMI HDR SWITCH WITH SPDIR AUDIO RS232

SPECIFICATIONS • HDMI Version: Support HDMI 2.1 (Backward Compatible), Support HDCP 2.3 (Backward Compatible) • HDMI Ports: 4x HDMI Input and x1 HDMI Output • Transmission Speed: 48Gbps • Video Bandwidth: 1200MHz • HDMI Resolution: 7680x4320@24/25/30/50/60Hz, 4096x2160@24/25/30/50/60/100/120Hz, 3840x2160@24/25/30/50/60/100/120Hz, 3440x1600@60Hz, 3440x1440@60Hz, 2560x1600@60Hz, 2560x1440@60/100/120Hz, 2560x1080@60Hz, 2048x1080@60Hz, 1920x1440@60/100/120Hz, 1080p@50/60/100/120Hz, 1080i@50/60Hz, 720p@50/60Hz • S/PDIF Output: Dolby Atmos, Dolby True HD, DTS:X, DTS-HD, etc. • HDMI Output: Dolby Atmos, Dolby Digital 7.1CH, Dolby True HD, DTS:X, DTS-HD, LPCM 7.1CH • RS-232: 3-Pin (GND/RxD/TxD) , Baud Rate 9600 • Voltage/Current: DC5V/1A • Power consumption: < 2.0W • Working Temperature: -20°C~60°C • Storage Temperature: -30°C~70°C • Humidity (No Condensation): 0~90%RH • Housing: Metal • Colour: Black • Weight: 275g • Dimension (L x W x H): 160.0 x 58.0 x 20.6mm • Protection: ESD Protection, 1a Contact Discharge level 2, 1b Air Discharge level 3 Implementation of the standard: IEC61000-4-2, Lightning protection, Surge protection
