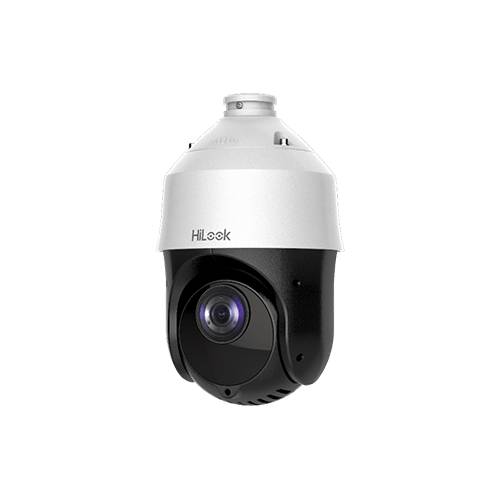

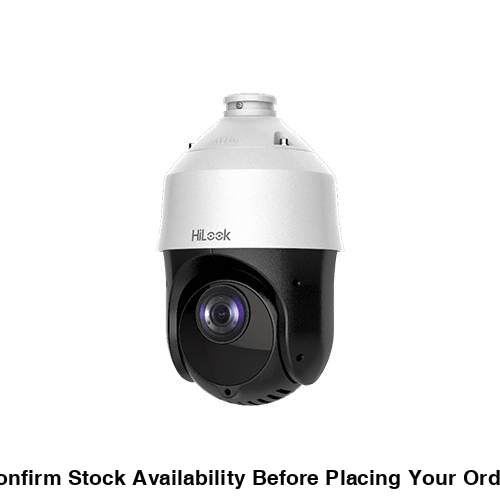

HiLook Outdoor HD 1080p 100m IR True WDR IP PTZ Camera

Name: HiLook Outdoor HD 1080p 100m IR True WDR IP PTZ Camera
Brand: ILLUDER CCTV
SKU: HIL070-PTZ-N4225I-DE
Price: 8395.00 ZAR
Availability: InStock

R 8,395.00 ZAR

Sale Sold out

Shipping calculated at checkout.

Master Card
Visa Card
Visa Electron

Maestro Card
Instant Eft
MobiCred

SKU:HIL070-PTZ-N4225I-DE

HiLook Outdoor HD 1080p 100m IR True WDR IP PTZ Camera

2.0-MP high-performance 1/28''CMOS; 12VDC & POE; Smart IR Technologie; h,265+; 4,8mm-120mm Lens(25x Optical); 16x Digital Zoom; IP66

4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome

Four-inch 2 MP camera with pan, tilt and zoom (25x) ability
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Excellent night-time performance with up to 100 m enhanced IR
Water and dust resistant (IP66)
- Camera
- Image Sensor1/2.8" progressive scan CMOS
- Max. Resolution1920 × 1080
- Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/1 s to 1/30,000 s
- Day & Night IR Cut Filter
- Zoom25x optical, 16x digital
- Lens
- Focal Length4.8 mm to 120 mm, 25× optical
- FOV
  Horizontal field of view: 57.6° to 2.5° (Wide-Tele),

  Vertical field of view: 34.4° to 1.4° (Wide-Tele),

  Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
- FocusAuto, semi-auto, manual
- ApertureF1.6 to F3.5
- Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 100 m
- Smart Supplement Light Yes
- PTZ
- Movement Range (Pan)360° endless
- Movement Range (Tilt)From -15° to 90° (Auto-flip)
- Pan Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
- Tilt Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
- Proportional PanYes
- Presets300
- Preset Freezing Yes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Park Action Preset /Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PTZ Status Display Yes
- Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
- Power-off Memory Yes
- Video
- Main Stream
  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
  50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),

  60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
  50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),

  60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
  Main Stream: H.265+/H.265/H.264+/H.264,

  Sub-Stream: H.265/H.264/MJPEG,

  Third Stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16384 Kbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)Main stream, sub-stream and third stream respectively support four fixed areas
- Audio
- Audio CompressionG.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
- Simultaneous Live View Up to 20 channels
- API Open Network Video Interface, ISAPI, SDK, ISUP
- User/Host Up to 32 users. 3 levels: Administrator, Operator and User
- Security User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Network Storage NAS (NPS, SMB/ CIPS), ANR
- ClientiVMS-4200, HiLook Vision
- Web BrowserIE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Wide Dynamic Range (WDR)120 dB
- Defog Digital defog
- Image Stabilization No
- Image Enhancement BLC, HLC, 3D DNR
- Privacy Mask24 programmable privacy masks
- Regional Focus Yes
- Regional Exposure Yes
- Interface
- Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4)
- On-board Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
- Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
- Event
- Basic Event Motion Detection, Video Tampering Detection, Exception Detection
- Smart Event Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
- General
- Power
  12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4

  Max.:18 W (IR Max.6 W)
- DimensionØ 165.9 mm × 290 mm (Ø 6.53" × 11.42")
- Weight Approx. 2.5 kg (5.51 lb)
- MaterialADC 12, PC+10% GF
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Approval
- EMC
  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7);

  KC (KN 32: 2015, KN 35: 2015)
- Safety
  UL (UL 62368-1)

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014+A11:2017),

  BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);

  LOA (IEC/EN 60950-1)

View full details
