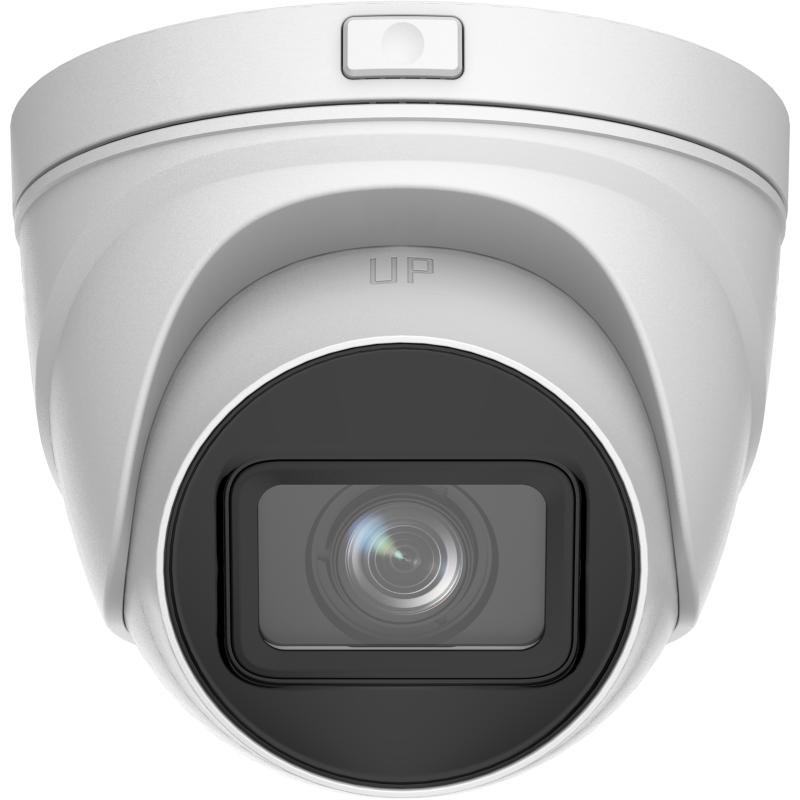

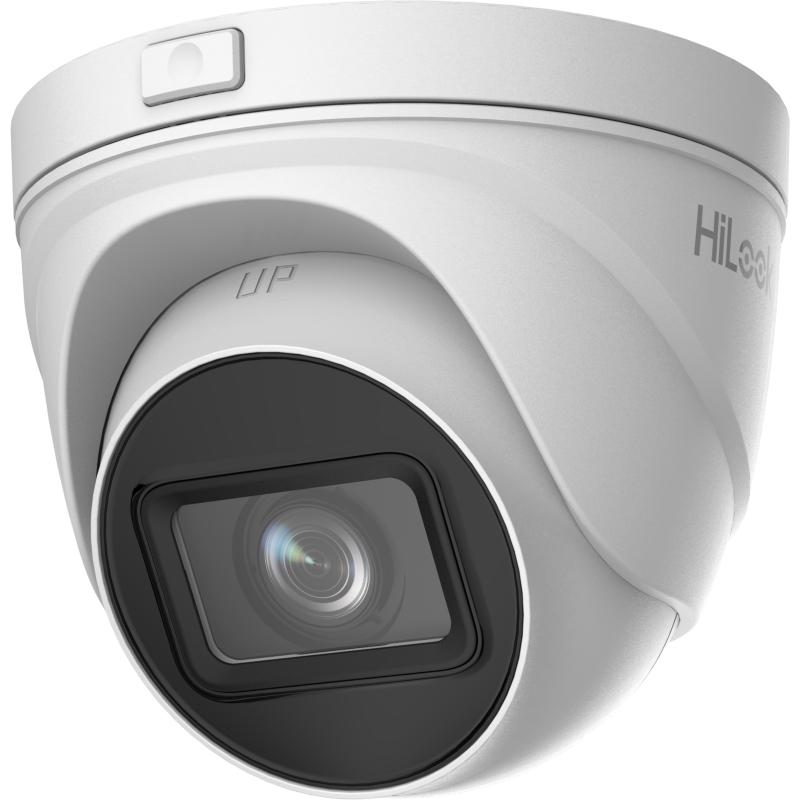

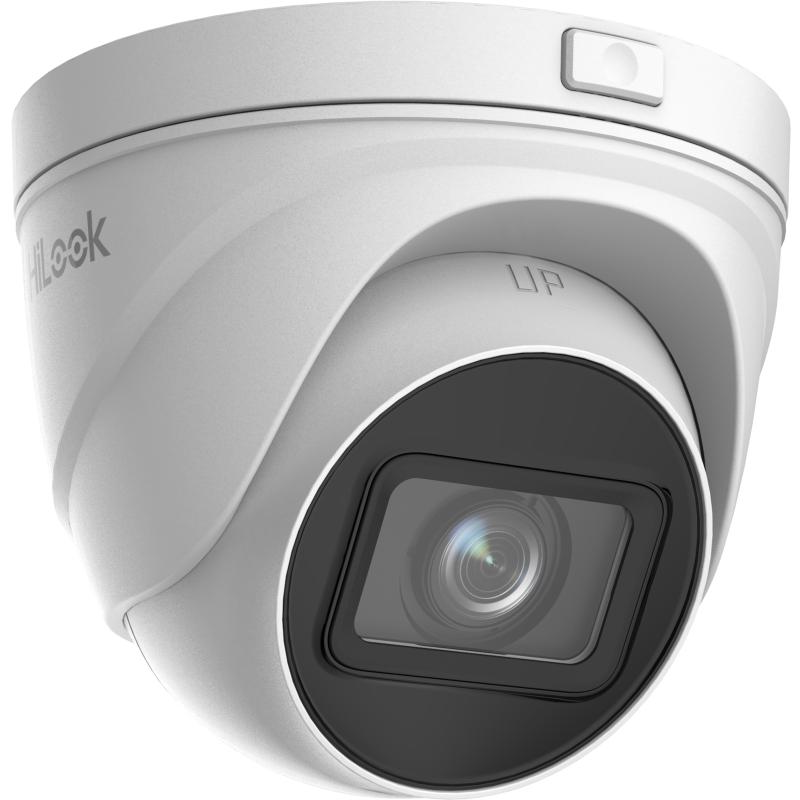

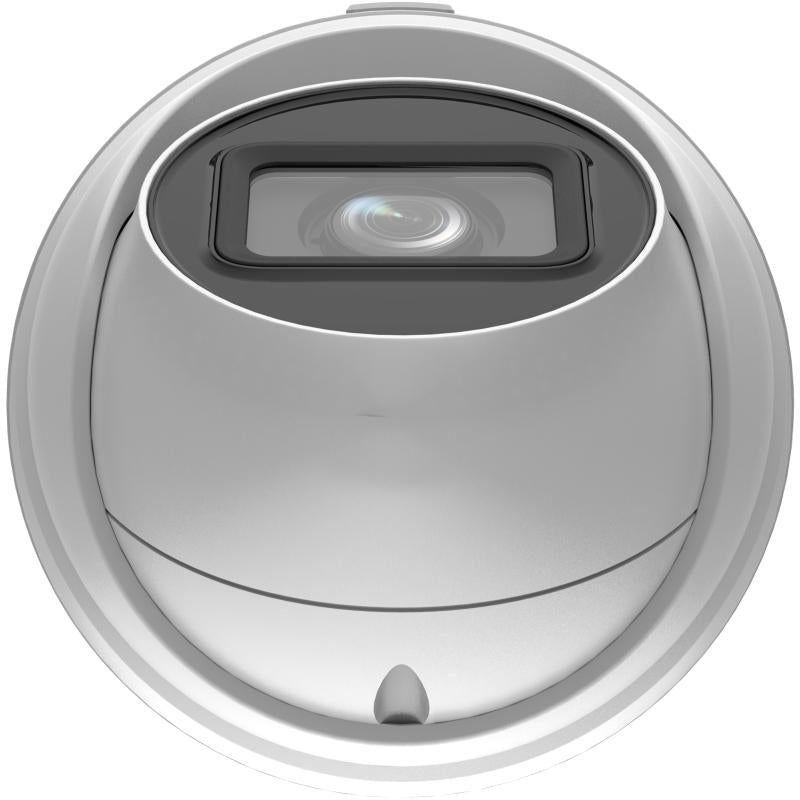

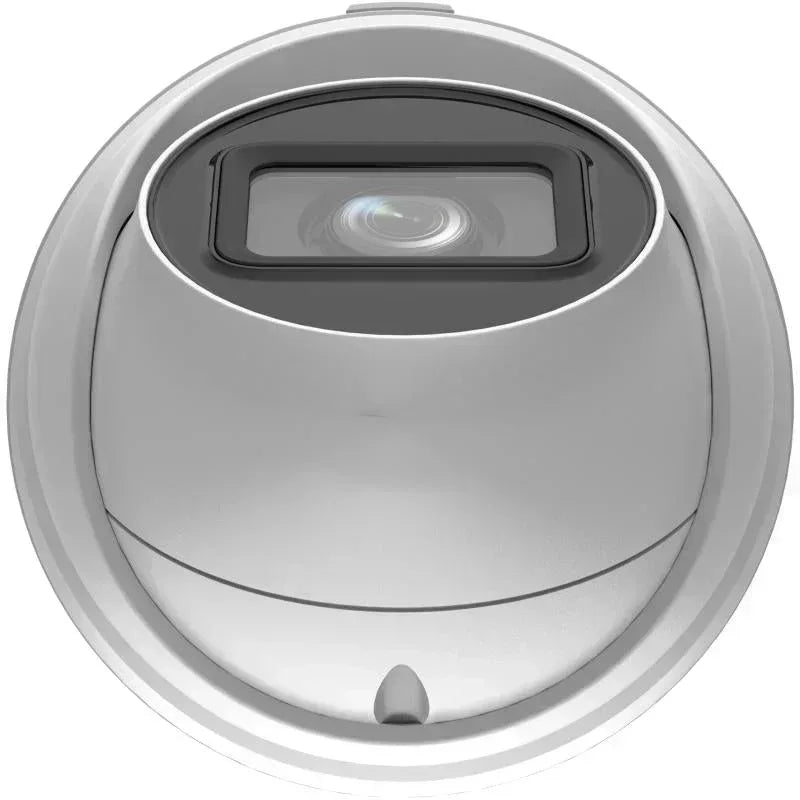

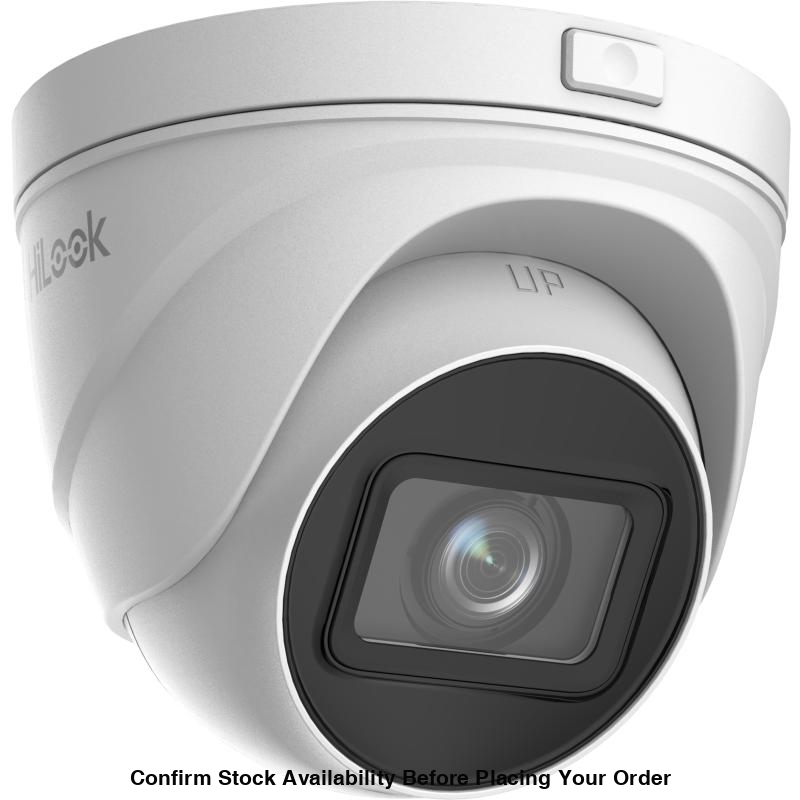

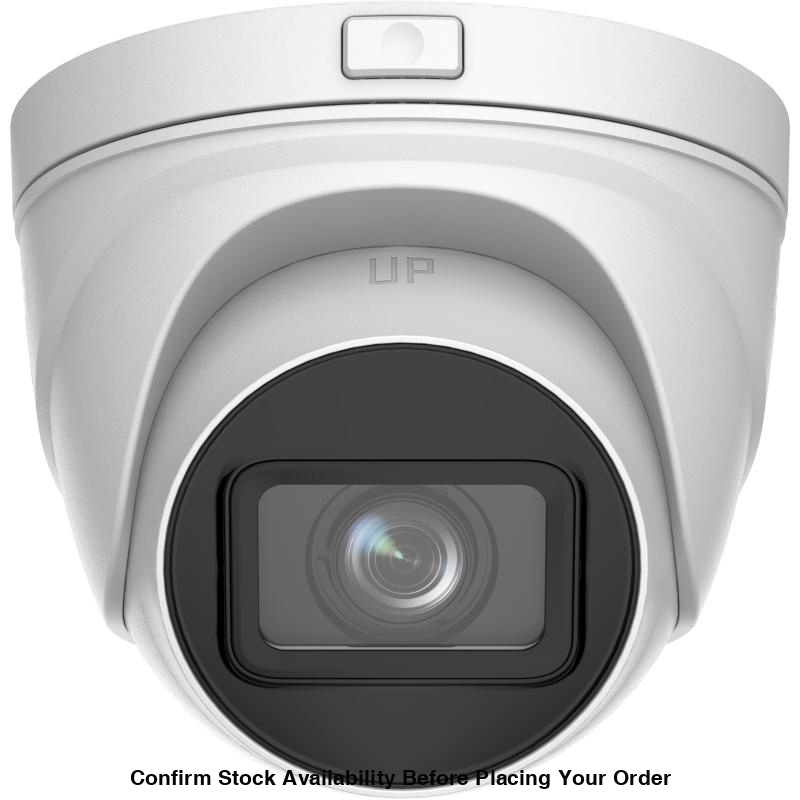

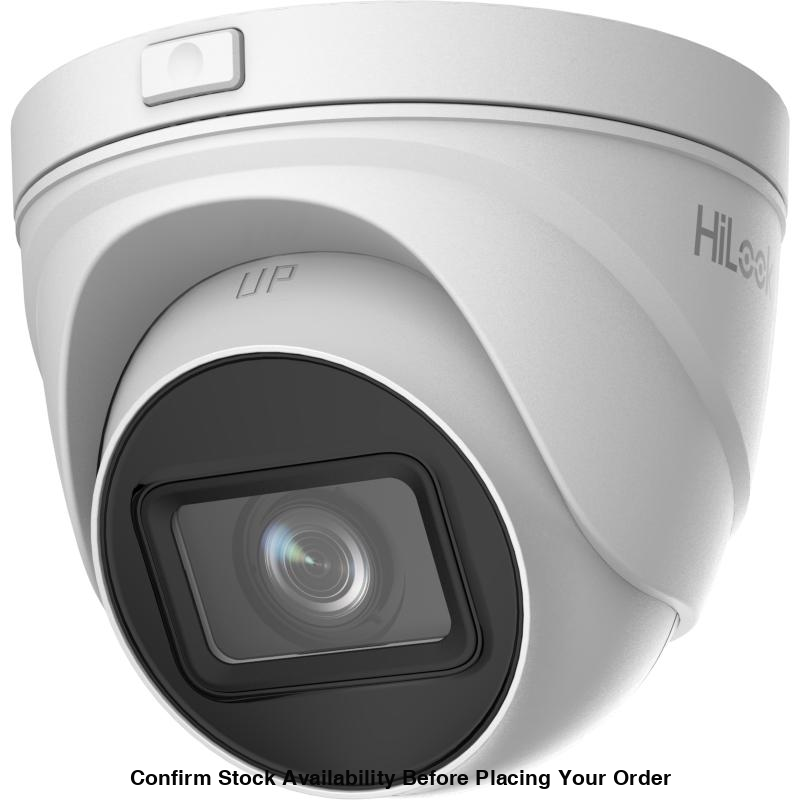

HiLook Outdoor 4MP 50m IR EXIR POE Dome Camera 2MP

HiLook Outdoor 4MP 50m IR EXIR POE Dome Camera 2MP

R 3,065.00 ZAR
R 3,065.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

HIL046-IPC-T640H-Z

HiLook Outdoor 4MP 50m IR EXIR POE Dome Camera 2MP

high-performance 1/28''CMOS; H,264+; BLC/3D DNR, Digital WDR; ICR; 12 VDC/POE; Smart IR; 2,8-12mm V/F Motorized Lens; IP67

4 MP MD 2.0 Varifocal Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
  • Up to 256 GB SD card slot for storage
  • Water and dust resistant (IP67)
  • EXIR 2.0: advanced infrared technology with long IR range
  • Clear imaging even with strong back lighting due to 120 dB WDR technology
  • Efficient H.265+ compression technology
    • Camera
    • Image Sensor1/3" Progressive Scan CMOS
    • Max. Resolution2560 × 1440
    • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
    • Lens
    • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
    • Focal Length & FOV2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
    • Lens MountØ14
    • Iris TypeFixed
    • ApertureF1.6
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 30 m
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Video
    • Main Stream

      50 Hz:

      20 fps (2560 × 1440)

      25 fps (1920 × 1080, 1280 × 720)

      60 Hz:

      20 fps (2560 × 1440)

      24 fps (1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Region of Interest (ROI)1 fixed region(s) for main stream
    • Network
    • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • ClientiVMS-4200,HiLookVision
    • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Local service: Chrome 57.0+, Firefox 52.0+

    • Image
    • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Day/Night SwitchAuto,Schedule,Day,Night
    • Wide Dynamic Range (WDR)120 dB
    • Image EnhancementBLC,HLC,3D DNR
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage



      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

    • Reset KeyYes
    • Event
    • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • LinkageUpload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture
    • General
    • Power

      12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W

    • Material



      Cover: plastic, main body: metal

    • Dimension



      Ø129.4 mm × 116.4 mm (Ø5.1 × 4.6\")"

    • Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
    • WeightApprox. 570 g (1.2 lb.)
    • With Package WeightApprox. 850 g (1.9 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • LanguageEnglish, Ukrainian
    • General FunctionHeartbeat,anti-banding,mirror,password protection,privacy mask, watermark
    • Approval
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7

    • Safety

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017

    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006

    • ProtectionIP67: IEC 60529-2013
