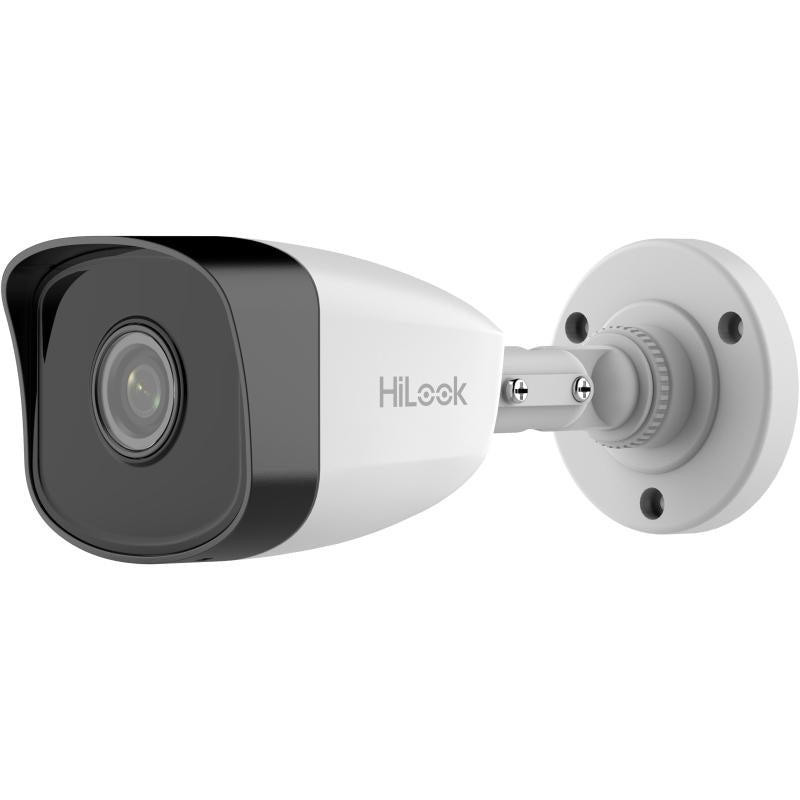

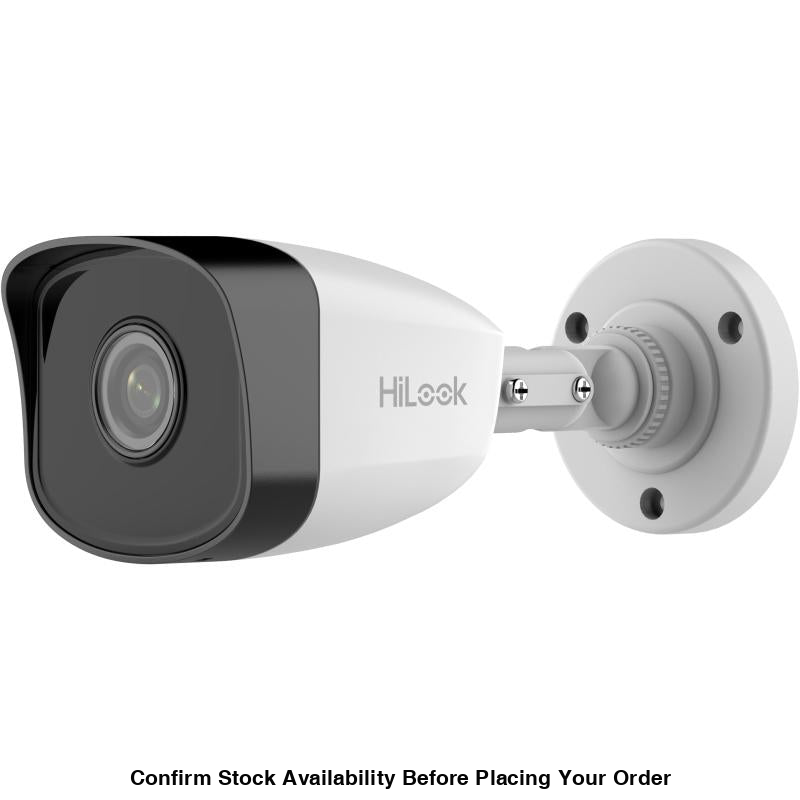

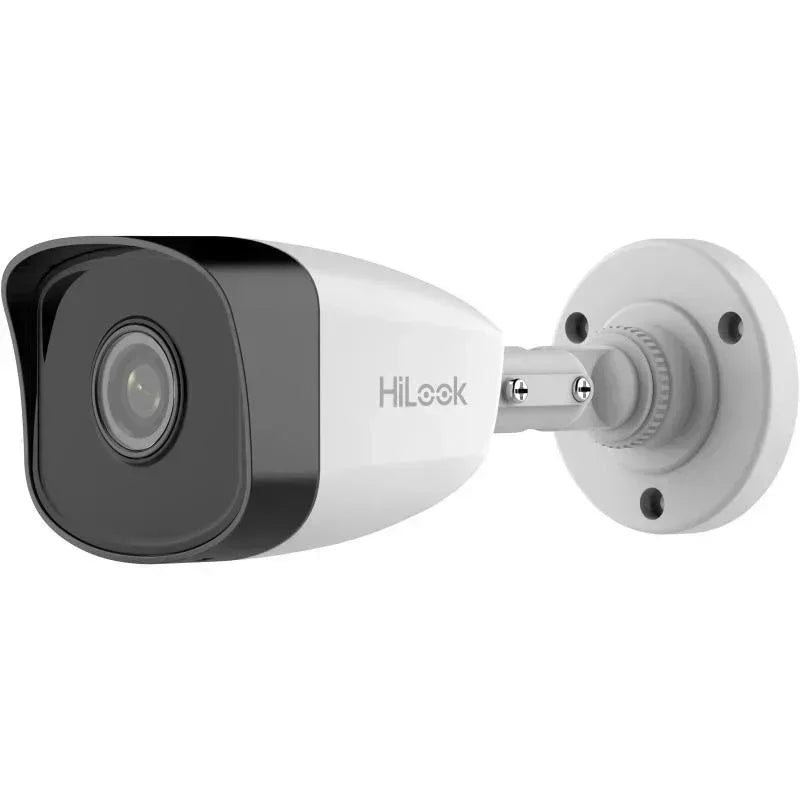

HiLook 2 MP Fixed Bullet Network Camera
HiLook 2 MP Fixed Bullet Network Camera
Regular price
R 949.00 ZAR
Regular price
Sale price
R 949.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:HIL030-C IPC-B121
HiLook 2 MP Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to DWDR technology
- Water and dust resistant (IP67)
- EXIR 2.0: advanced infrared technology with long IR range
-
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100, 000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Lens
-
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
- Lens MountM12
- Focus Fixed
- ApertureF2.0
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Iris TypeFixed
- Illuminator
- Supplement Light TypeIR
- Supplement Light Range Up to 30 m
- IR Wavelength850 nm
- Smart Supplement Light Yes
- Video
-
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface, ISAPI
- User/Host Up to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night Switch Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement BLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventM otion detection, video tampering alarm, exception
- Linkage Upload to FTP, notify surveillance center, send email
- General
-
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension186.3 mm × 71.4 mm × 66.7 mm (7.3" × 2.8" × 2.6")
- Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
- Weight Approx. 270 g (0.6 lb.)
- With Package Weight Approx. 490 g (1.1 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
