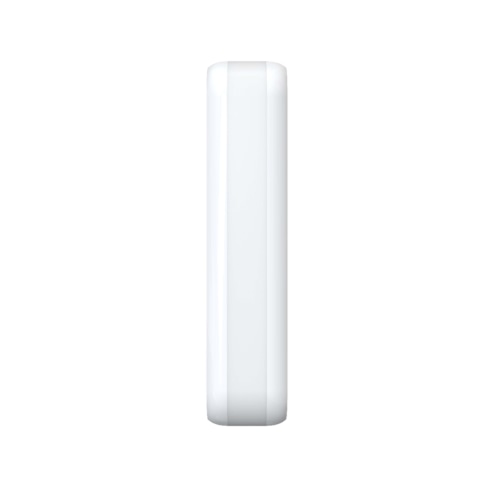

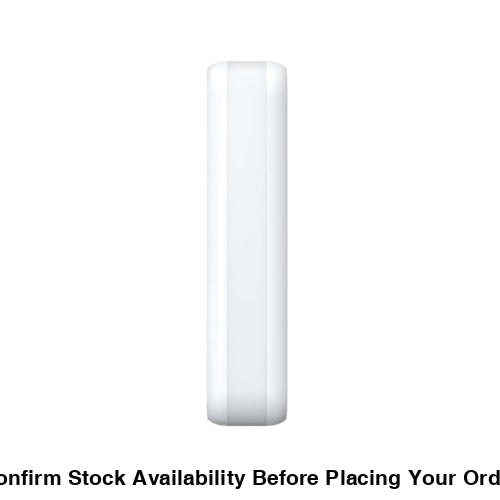

• Hikvision Wireless PIR AM Curtain Detector
1 1

Hikvision Wireless PIR AM Curtain Detector

Hikvision Wireless PIR AM Curtain Detector

R 1,265.00 ZAR
R 1,265.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-PDC10AM-EG2-WE

Hikvision Wireless PIR AM Curtain Detector

  • Slim design for window frame installation
  • IP65 weather resistance for outdoor application
  • Active IR anti-masking
  • Directional detection support
  • Multiple enrollment methods and easy installation
  • Frequency hopping against jamming for reliable transmission
    • Detection Performance
    • Detection Method Passive Infrared
    • Detection Range

      Wall mount: 10 m

      Ceiling mount: 5 m

    • Detection Angle5°
    • Detection Zones32
    • Detectable Speed0.3～2m/s
    • Sensitivity Auto; Pet
    • White Light Filter6500lux
    • Pet Immunity

      Wall mount: 12 kg

      Ceiling mount: None

    • Digital Temperature Compensation Support
    • Creep Zone Protection Support
    • Anti-masking Support
    • Feature
    • Digital Processing Support
    • Sealed Optics Support
    • Tamper Protection Front; Rear
    • Environment Temperature Indicator Support
    • Signal Strength Indicator Support
    • Directional Detection Support
    • Interface
    • Power Switch Power up enrolling
    • LED Indicator Blue (alarm), green+ orange (mask)
    • Transmission
    • Transmission Technology Tri-X Wireless
    • Transmission Method Two-Way RF Wireless
    • Transmission Frequency868MHz
    • Transmission SecurityAES-128 Encryption
    • Transmission Range(Free Space)1.6Km
    • Frequency Hopping Support
    • Enrolling Method Power up; Remote ID;QR Code
    • Electrical Characteristics
    • Standard Battery Life Up to 5 years (standby time) (The battery working time can be significantly reduced at low temperatures)
    • Power Supply Battery powered
    • Battery TypeCR123A × 2
    • Typical Voltage3V
    • General
    • Operation Temperature-25°C to 60°C (-13°F to 140°F)
    • Storage Temperature-25°C to 60°C (-13°F to 140°F)
    • Operation Humidity10% to 90%
    • IP RateIP65
    • Dimension(WxHxD)29.2 mm × 134.4 mm × 39.5 mm
    • Weight118.5 g
    • Mounting Height2 m to 3.5 m
    • Mounting Method Wall; Ceiling
    • Application Scenario Indoor, outdoor
    • Bracket L-shaped adapter included
