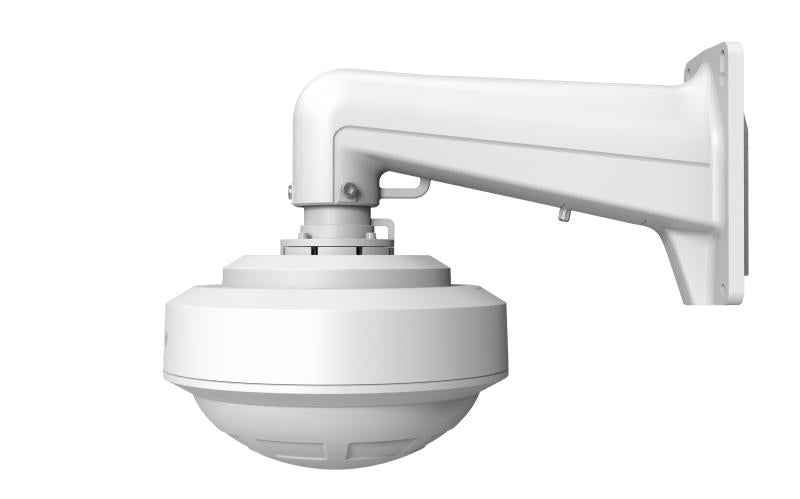

Hikvision WiFi 6 3000Mbps outdoor access point

Hikvision WiFi 6 3000Mbps outdoor access point

R 5,727.00 ZAR
R 5,727.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-3WAP6630-EI
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision WiFi 6 3000Mbps outdoor access point

Hikvision DS-3WAP6630-EI: Hikvision WiFi 6 3000Mbps outdoor access point.

Key Features

  • 1 × Gigabit PoE in port,1 × Gigabit fiber optical port
  • Wi-Fi 6 Dual Band 3000 Mbps
  • Auto RF Optimization
  • Wide Signal Coverage
  • IP68 Waterproof

Specifications

General
Net Weight 1.6 kg (3.53 lb)
Gross Weight 5.64 kg (12.43 lb)
Installation Mode Wall mounting, Holding pole (holding pole diameter 67-127mm)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity 0% to 100% (condensation)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Storage Humidity 0% to 100% (no condensation)
Product Dimensions (W × H × D) Ø240 mm × 200 mm (excluding bracket）
Packing List 3000 M Access Point × 1, Screw Pack × 1, Installation bracket × 1, Waterproof cap × 1, Fiber optic converter head × 1, Afety rope x 1, Quick Start Guide × 1, Regulatory Compliance and Safety Information × 1
Power Supply Method DC power supply: 12 V, 2 A; PoE power supply: IEEE 802.3at;
Power Consumption Standby Power Consumption: 5.5W Typical Power Consumption: 15W Maximum Power Consumption: 18W
Protection Grade IP68
Wireless Speed Max: 2976 Mbps; 2.4G: 574 Mbps; 5G: 2402 Mbps;
Wireless Standard Wi-Fi 6
Working Frequency Band Radio 1: 5G (11a/n/ac/ax); Radio 2: 2.4G (11b/g/n/ax);
Bandwidth 2.4G: Auto/20/40 MHz; 5G: Auto/20/40/80/160 MHz;
Recommended Coverage Range Recommended Coverage Radius: 150 meters. Note: The signal coverage range is greatly affected by the environment. For example, walls, glass doors, and other obstacles will affect the signal coverage. The above - mentioned values are for reference only.
Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMA
Max. Number of Connected Clients 256
Recommended Number of Connected Clients 110
Transmitting Power 2.4G: Combined power: 28 dBm; 5G: Combined power: 30 dBm; Note: The actual transmission power varies according to regulations in different countries and regions;
Wireless Security WPA2-PSK, WPA-WPA2-PSK, WPA3-PSK, WPA2-WPA3-PSK
Antenna 2.4 GHz: 2 built-in omnidirectional antennas 5 GHz: 3 built-in omnidirectional antennas
Antenna Gain 2.4 GHz: 4 dBi 5 GHz: 5.1 dBi
RF Design Dual-radio 4 spatial streams 2.4G: 2 × 2, MU-MIMO 5G: 2 × 2, MU-MIMO
FEM 2.4 GHz: 2 x eFEM 5 GHz: 3 x eFEM
Ports 1 × Gigabit PoE in port, 1 × Gigabit fiber optical port
RESET 1 × Reset hole
Max. Number of Wireless SSIDs 8
Internet Access Mode DHCP,Static
VLAN ID Range 1~4000
Max. Number of VLANs 8
Operation Mode AP mode (default); Routing mode;
Interface Support uplink port VLAN; Support MAC address modification; Support LAN configuration; Support Port VLAN;
IP Services Support DHCP Client; Supports DHCP Server; Support LLDP; Support SADP;
Portal Authentication Support Portal Authentication;
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Radio EN 50385, EN IEC 62311, EN 62311, EN IEC 62368-1, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 50130-4, EN 300 328, EN 301 893, EN 300 440

Product Details

  • Model: DS-3WAP6630-EI
  • Brand: Hikvision
  • Hikvision model reference: DS-3WAP6630-EI
