Hikvision Thermal256x192,12µm, Optical4MP2688×1520;Thermal 3mm,FOV50°.Optical 4mm.Strobe Light&Audio Alarm. VCALine crossingIntrusion

Hikvision Thermal256x192,12µm, Optical4MP2688×1520;Thermal 3mm,FOV50°.Optical 4mm.Strobe Light&Audio Alarm. VCALine crossingIntrusion

R 13,338.00 ZAR
R 13,338.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-2TD2628-3/QA_C 3MM
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision Thermal256x192,12µm, Optical4MP2688×1520;Thermal 3mm,FOV50°.Optical 4mm.Strobe Light&Audio Alarm. VCALine crossingIntrusion

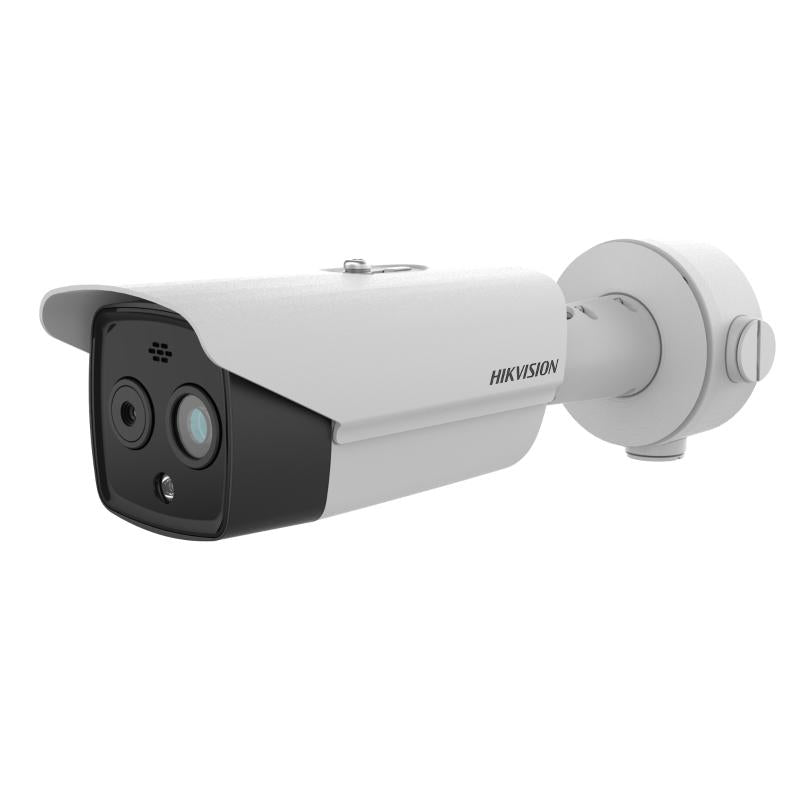

Hikvision DS-2TD2628-3/QA_C: Thermal256x192,12µm, Optical4MP2688×1520;Thermal 3mm,FOV50°.Optical 4mm.Strobe Light&Audio Alarm. VCALine crossingIntrusion detection.

Key Features

  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Support smoking detection algorithm
  • Support sun-reflection filter algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Specifications

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD < 40 mK (25°C, F1.0)
Focal Length 3.6 mm
IFOV 3.33 mrad
Field of View 50.0° × 37.3° (H × V)
Min. Focusing Distance 0.5 m
Aperture F1.0
Digital Zoom ×2, ×4
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Focal Length 4.3 mm
Field of View 84.0° × 43.1° (H × V)
Aperture (Range) F1.6
WDR 120 dB
Target Coloration Yes. Supported in white hot and black hot mode.
IR Distance Up to 30 m
IR Intensity and Angle Automatically adjusted
White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 150°C (-4°F to 302°F)
Temperature Accuracy ± 8°C (± 14.4°F)
General Function Fire detection, smoking detection, sun-reflection filter
Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Product Details

  • Model: DS-2TD2628-3/QA_C
  • Brand: Hikvision
  • Hikvision model reference: DS-2TD2628-3/QA Discontinued
