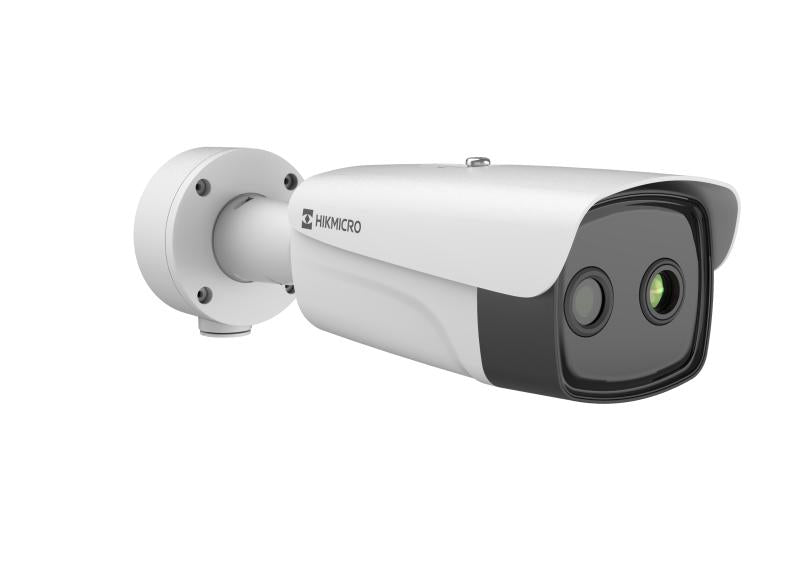

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera (HM-TD2638-25/G1/T3Y)

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera (HM-TD2638-25/G1/T3Y)

R 84,228.00 ZAR
R 84,228.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

HM-TD2638-25/G1/T3Y
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera (HM-TD2638-25/G1/T3Y)

Hikvision HM-TD2638-25/G1/T3Y: Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera.

Key Features

  • 384 × 288 resolution, 12 μm, VOx UFPA, NETD ≤ 20 mK (25°C, F1.0)
  • Extended human/vehicle detection distance and ultra low false alarm with GUANLAN Large-Scale AI Model
  • Temperature exception alarm, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
  • Fire detection Algorithm
  • Built-in TPM2.0 encryption module for cybersecurity
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Specifications

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 384 x 288
Pixel Pitch 12 μm
NETD ≤ 20 mK (@25° C,F# = 1.0)
Focal Length 25 mm
IFOV 0.48 mrad
Aperture F1.0
Field of View 10.5° × 7.9° (H × V)
Min. Focusing Distance 23 m
Digital Zoom ×2, ×4，×8
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View 24.6° × 14° (H × V)
Focal Length 12.4 mm
Shutter Speed 1 s to 1/100,000 s
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
EIS Thermal channle supports EIS, exclusive with all smart functions
IR Distance Up to 100 m
IR Intensity and Angle Automatically adjusted
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ± 8 °C (±14.4 °F)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Main Stream Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288)
Sub-stream Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
Network Storage MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User

Product Details

  • Model: HM-TD2638-25/G1/T3Y
  • Brand: Hikvision
  • Hikvision model reference: HM-TD2638-25/G1/T3Y
