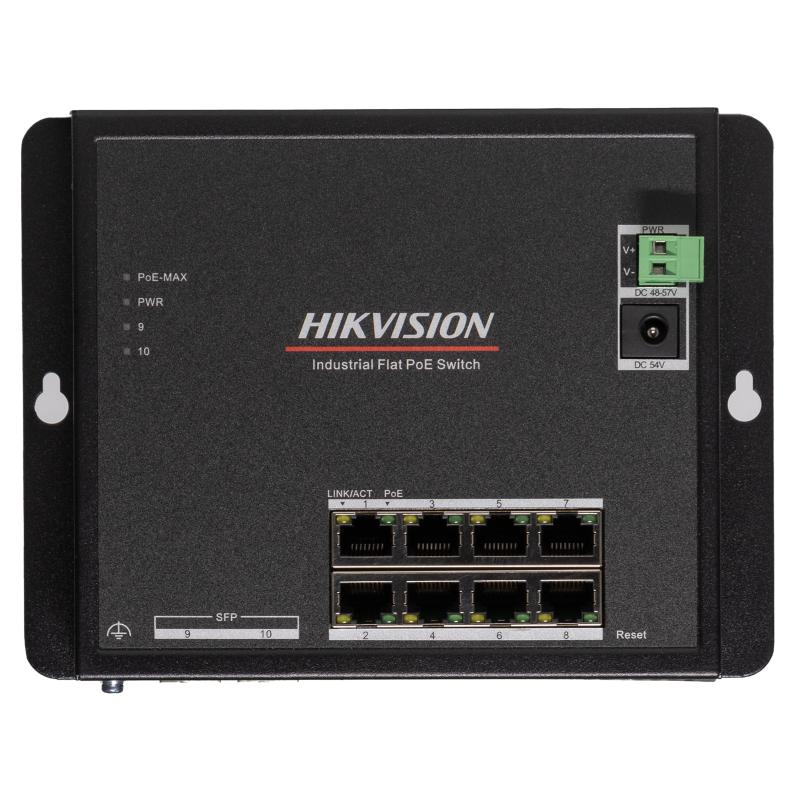

Hikvision L2-managed flat industrial POE switch, 8x POE ports, 2x gigabit SFP, 48-57V input. No PSU included

Hikvision L2-managed flat industrial POE switch, 8x POE ports, 2x gigabit SFP, 48-57V input. No PSU included

R 3,420.00 ZAR
R 3,420.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-3T1510P-SI-FLT
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision L2-managed flat industrial POE switch, 8x POE ports, 2x gigabit SFP, 48-57V input. No PSU included

Hikvision DS-3T1510P-SI-FLT: Hikvision L2-managed flat industrial POE switch, 8x POE ports, 2x gigabit SFP, 48-57V input. No PSU included.

Key Features

  • 8 x Gigabit RJ45 port,2 x Gigabit fiber optical port
  • Support DHCP snooping
  • Support 802.1Q VLAN
  • Support ACL list
  • Support STP/ERPS loop prevention, storm control
  • Support ARP Anti-Spoofing
  • Support SNMP, QoS
  • Wider Temperature (-40 °C to 75 °C) Design

Specifications

General
Shell Metal material
Net Weight 0.58 kg (1.27 lb)
Gross Weight 0.64 kg (1.41 lb)
Dimensions (W × H × D) 180.00 mm × 25.00 mm × 134.00 mm (7.08'' × 0.98'' × 5.27'')
Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 48-57 V, 7.5 A
Installation Mode Desk-Mounted,Rail,Wall-Mounted
Max. Power Consumption 250 W
Power Consumption in Idle 10 W
Surge Protection 2 kV
Ports 8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table 8 K
Switching Capacity Whole-Device Performance: 20 Gbps Port Performance: 20 Gbps
Packet Forwarding Rate Whole-Device Performance: 14.88 Mpps Port Performance: 14.88 Mpps
Internal Cache 4.1 Mbits
Long Range Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
QoS QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS.
VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm Control Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
DHCP Snooping DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
ACL Support ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type. Support ACL application on ports. Support IPv4 ACL and MAC ACL configurations. Support inbound ACLs.
IPSG IPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security table entries.
PoE Standard IEEE 802.3at,IEEE 802.3af
PoE Power Pin End-span: 1/2(-), 3/6(+)
PoE Port PoE: Ports 1 to 8
Max. Port Power 30 W
PoE Power Budget 240 W
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Product Details

  • Model: DS-3T1510P-SI-FLT
  • Brand: Hikvision
  • Hikvision model reference: DS-3T1510P-SI-FLT
