Hikvision KD8 Series Pro Modular Door Station

Hikvision KD8 Series Pro Modular Door Station

R 3,729.00 ZAR
R 3,729.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-KD8003-IME1/SURFACE(B)

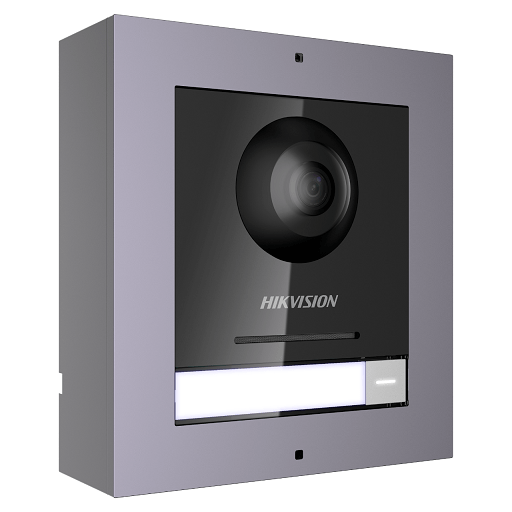

Hikvision KD8 Series Pro Modular Door Station

  • Surface mounting main unit of modular door station
  • 2 MP fisheye Camera with IR Supplement
  • One call Physical Button For easier calls
  • Two-lock control
  • Standard PoE power supply
  • IP65 protection level
  • Convenient configuration via Web remotely
  • Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
    • System parameters
    • Operating system Embedded Linux operation system
    • ROM32 MB
    • RAM256 MB
    • CPU Embedded Processor
    • Display parameters
    • Screen size NA
    • Operation method NA
    • Type NA
    • Resolution NA
    • Video parameters
    • Supplement light Low illumination, IR supplement lights
    • Video standardH.264
    • Lens1
    • FOV Horizontal: 146°, Vertical: 82°
    • WDR

      Support

    • Resolution2 MP
    • Audio parameters
    • Audio input

      Built-in omnidirectional microphone

    • Audio compression standardG.711 U, G.711 A
    • Audio output Built-in loudspeaker
    • Audio compression bitrate64 Kbps
    • Audio quality Noise suppression and echo cancellation
    • Volume adjustment Adjustable
    • Capacity
    • Fingerprint capacity/
    • User capacity2000
    • Card capacity6000
    • Face capacity NA
    • Linked indoor station capacity500
    • Event capacity/
    • Sub door station capacity16
    • Network parameters
    • Communication protocol TCP/IP, RTSP
    • Wired network10/100 Mbps self-adaptive Ethernet
    • Wi-Fi NA
    • Bluetooth NA
    • 3G/4GNA
    • Device interfaces
    • Alarm input4 (2 exit buttons and 2 door contacts by default)
    • Network interface1 RJ45
    • TAMPER1
    • Exit button2 (2 for lock control)
    • Door contact input2
    • RS-4851 (1 for Hikvision's sub module communication)
    • Wiegand NA
    • TF card NA
    • Alarm output NA
    • Lock control2 (2 relay, max to 30 V, 2 A)
    • USBNA
    • Power interface12 VDC power output (max to 12 V, 500 mA)
    • Two-wire IP interface NA
    • General
    • Power supply12 VDC/PoE ( IEEE 802.3af)
    • Working temperature-40° C to 60° C (-40° F to 140° F)
    • Working humidity10% to 95%
    • Button1
    • Protective levelIP65
    • Installation Surface mounting
    • Dimensions(L × W × H)

      Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94\" × 1.65\")

      Cover:117 × 107 × 4 mm (4.61 × 4.21\" ×0.16\")

      Installation Frame:117 × 107 × 32.7mm (4.61 × 4.21\" ×1.29\")"

    • LanguageEnglish,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
    • Indicator0
    • Weight

      Without package: 0.600 kg

      With Package: 0.865 kg

    • Battery/
    • Application environment Outdoor
    • Power consumption≤ 5 W
