Hikvision Fingerprint Reader
Hikvision Fingerprint Reader
Regular price
R 1,425.00 ZAR
Regular price
Sale price
R 1,425.00 ZAR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:DS-K1201AMF_C

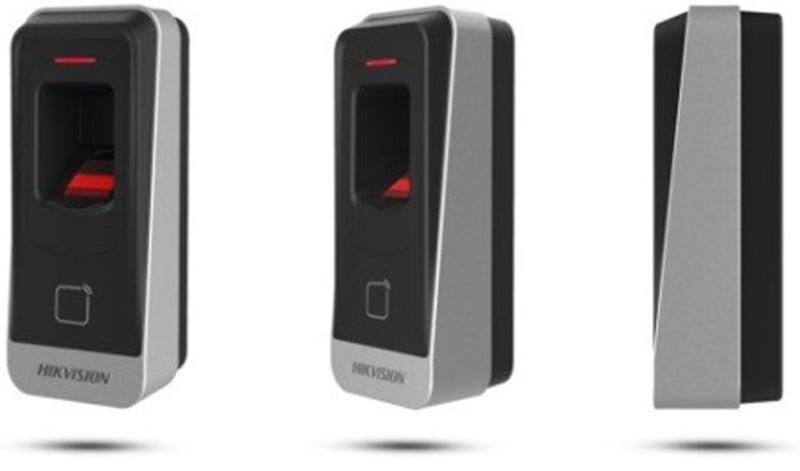

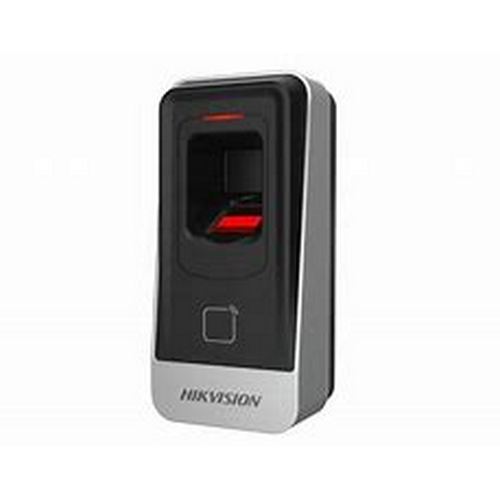

Hikvision Fingerprint Reader
- A group of messy code encrypted data for the security of fingerprint storage
- Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
- Supports M1 card reading
- Card induction distance is 30 mm to 100 mm
- Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
- Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
- Max. 5000 fingerprints storage
- Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
- Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
- Communication circuit is designed with optical coupling isolation and noise suppression function
- Built-in buzzer for status indication
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
- Tamper-proof function
-
- Interface
- TAMPER1
- Authentication
- Fingerprint moduleOptical fingerprint module
- Fingerprint comparing mode1:1/1:N
- Card typeM1 card
- General
- Power supply12 VDC ± 10%
- Power consumption≤ 1.6 W
- Working temperature-40 °C to 70 °C (-40 °F to 158 °F)
- Working humidity10% to 90% (no condensing)
- Dimensions62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73")
- Installation Surface mounting
- Buzzer Support
