DS-KD9203-FE6

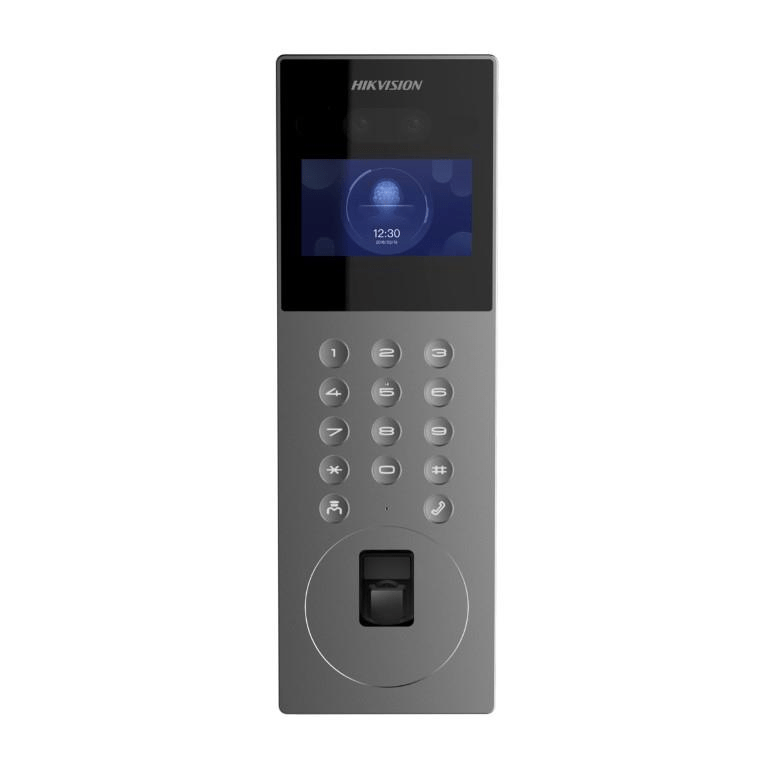

Hikvision Facial Recognition Door station

  • 4.3-inch colorful LCD screen with 800 × 480 resolution
  • 2 × 2 MP wide-angle HD lens
  • IP65 protection level
  • Built-in M1 card reading module
  • Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
  • Convenient configuration via Web remotely
  • Convenient unlock methods: face, cards, PIN code and fingerprints
    • System parameters
    • Operation system Linux
    • ROM1 GB
    • RAM4 GB
    • Processor Embeded high performance processor
    • Display parameters
    • Screen size4.3-inch
    • Operation method/
    • Type Colorful LCD
    • Resolution800 × 480
    • Video parameters
    • Lens2 × 2 MP HD camera
    • Resolution

      Main stream: 1080p@30fps, 720p@30fps

      Sub stream: VGA@25fps, VGA@30fps

    • FOV
    • Wide dynamic range (WDR)Digital WDR/120 dB
    • Supplement light IR light, up to 3 m
    • Video compression standardH.264; h.265; MJPEG
    • Audio parameters
    • Audio input1 built-in omnidirectional microphone
    • Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
    • Audio output1 built-in loudspeaker
    • Audio compression bitrate64 Kbps
    • Audio quality Noise suppression and echo cancellation
    • Volume adjustment Adjustable
    • Capacity
    • User capacity10,000
    • Face capacity5000
    • Card capacity50,000
    • Fingerprint capacity5000
    • Network parameters
    • Network protocol TCP/IP, RTSP, ipv6, onvif
    • Wi-Fi/
    • Bluetooth/
    • 3G/4G/
    • Device interfaces
    • Alarm input4
    • Network interface1 RJ-45 10/100/1000 Mbps self-adaptive
    • TAMPER1
    • Exit button1
    • RS-4852 RS-485 (Half duplex, HIKVISION)
    • USB/
    • Wiegand/
    • TF card/
    • Alarm output/
    • Lock control2 relays, Max. 30 VDC, 2 A
    • Door contact input1
    • General
    • Button Physical buttons
    • Installation Flush mounting
    • Indicator/
    • Weight

      Net weight: 1.05 kg

      Gross weight: 2.166 kg

    • Protective levelIP65
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10% to 90% (no-condensing)
    • Dimension (W × H × D)373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
    • Battery/
    • Power supply12 VDC, 1.5 A
    • Application environment Outdoor
    • Power consumption≤ 13 W
    • Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
