Hikvision dual-lens Guanlan thermal, 7mm thermal lens, 8mm optical lens, Guanlan AI analytics, 60m hybrid-light, 12VDCPOE

Hikvision dual-lens Guanlan thermal, 7mm thermal lens, 8mm optical lens, Guanlan AI analytics, 60m hybrid-light, 12VDCPOE

R 13,599.00 ZAR
R 13,599.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

HM-TD2628-7/G1/T3A 7MM
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision dual-lens Guanlan thermal, 7mm thermal lens, 8mm optical lens, Guanlan AI analytics, 60m hybrid-light, 12VDCPOE

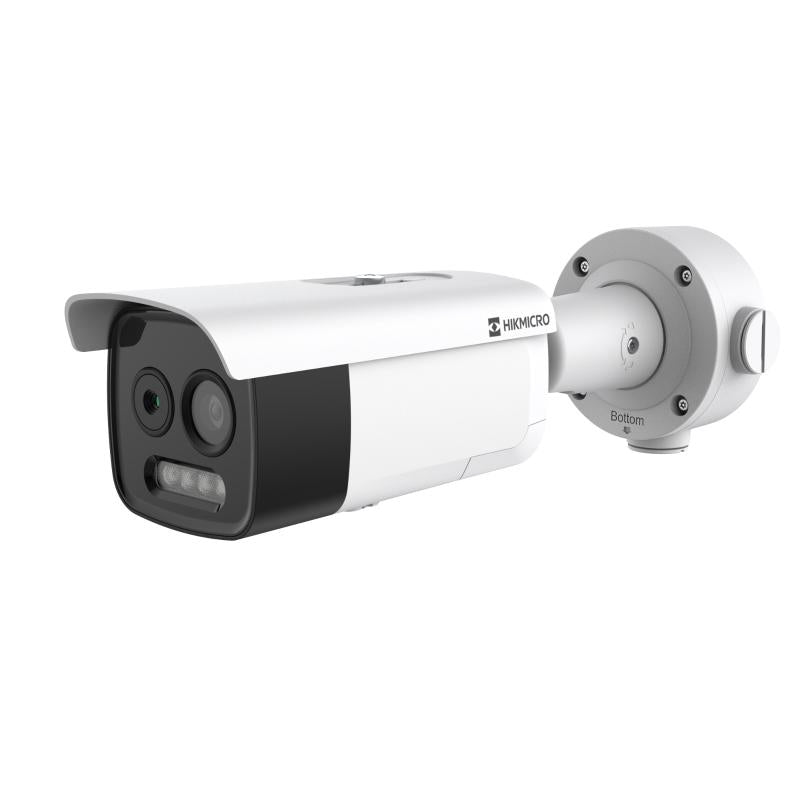

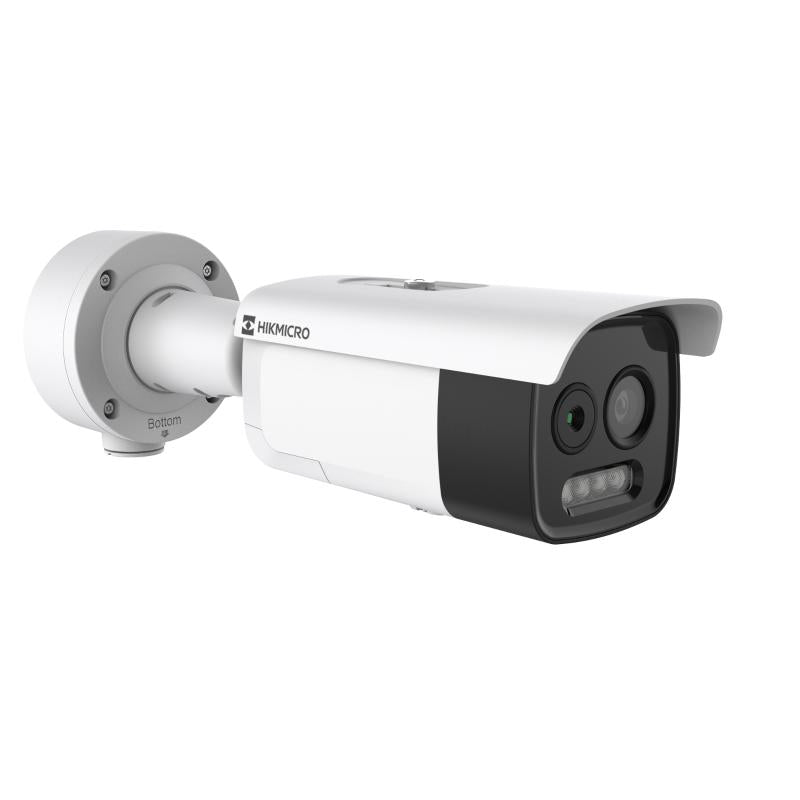

Hikvision HM-TD2628-7/G1/T3A: Hikvision dual-lens Guanlan thermal, 7mm thermal lens, 8mm optical lens, Guanlan AI analytics, 60m hybrid-light, 12VDCPOE.

Key Features

  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤25 mK (25°C, F1.0)
  • Extended human/vehicle detection distance and ultra low false alarm with GUANLAN Large-Scale AI Model
  • Support smart hybrid light: white light, IR and smart mode
  • Temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8°C (± 14.4°F)
  • Support fire point detection algorithm
  • Support smoking detection algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Specifications

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD ≤25 mK (25°C, F1.0)
Focal Length 6.9mm
IFOV 1.74mrad
Field of View 24.9° × 18.7° (H × V)
Min. Focusing Distance 1 m
Aperture F1.0
Digital Zoom ×2, ×4
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 5MP, 2688 × 1944
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Focal Length 8
Field of View 39.4° × 22° (H × V)
Aperture (Range) F1.6
WDR 120 dB
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target Coloration Yes. Supported in white hot and black hot mode.
Light Supplement Hybrid (IR, White light or Smart mode)
IR Distance Up to 60m
White Light Range Up to 60 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for two types of audible alarm (VCA and Temperature Exception) 2 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types (point, area, line), 21 rules in total
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ±8°C (±14.4°F)
Fire Detection Dynamic fire detection, up to 10 fire points detectable
Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Protocols IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
Network Storage MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),OTAP

Product Details

  • Model: HM-TD2628-7/G1/T3A
  • Brand: Hikvision
  • Hikvision model reference: HM-TD2628-7/G1/T3A
View full details
