Hikvision Ops Module
The Hikvision DS-D5AC13T5-8S2 OPS Module brings a solid computing core to professional digital signage setups. It ships in two build levels: the DS-D5AC13T5-8S2 with a 13th-generation Intel Core i5, 8 GB of RAM and a 256 GB SSD, and the DS-D5AC13G7-16S5 with a 13th-generation Intel Core i7, 16 GB of RAM and a 512 GB SSD. Both carry Wi-Fi 6 and ship with Windows 11 built in, so a screen is ready to run signage or a full desktop workload the moment the module is seated. The module fits into OPS slots for easy integration without the need for extra tools or cables.
With plentiful connectivity options including USB 3.0 and 2.0 ports, HDMI, DisplayPort, LAN, and M.2 NVMe storage support, this module adapts well across varied commercial environments like retail stores, corporate lobbies, and control rooms.

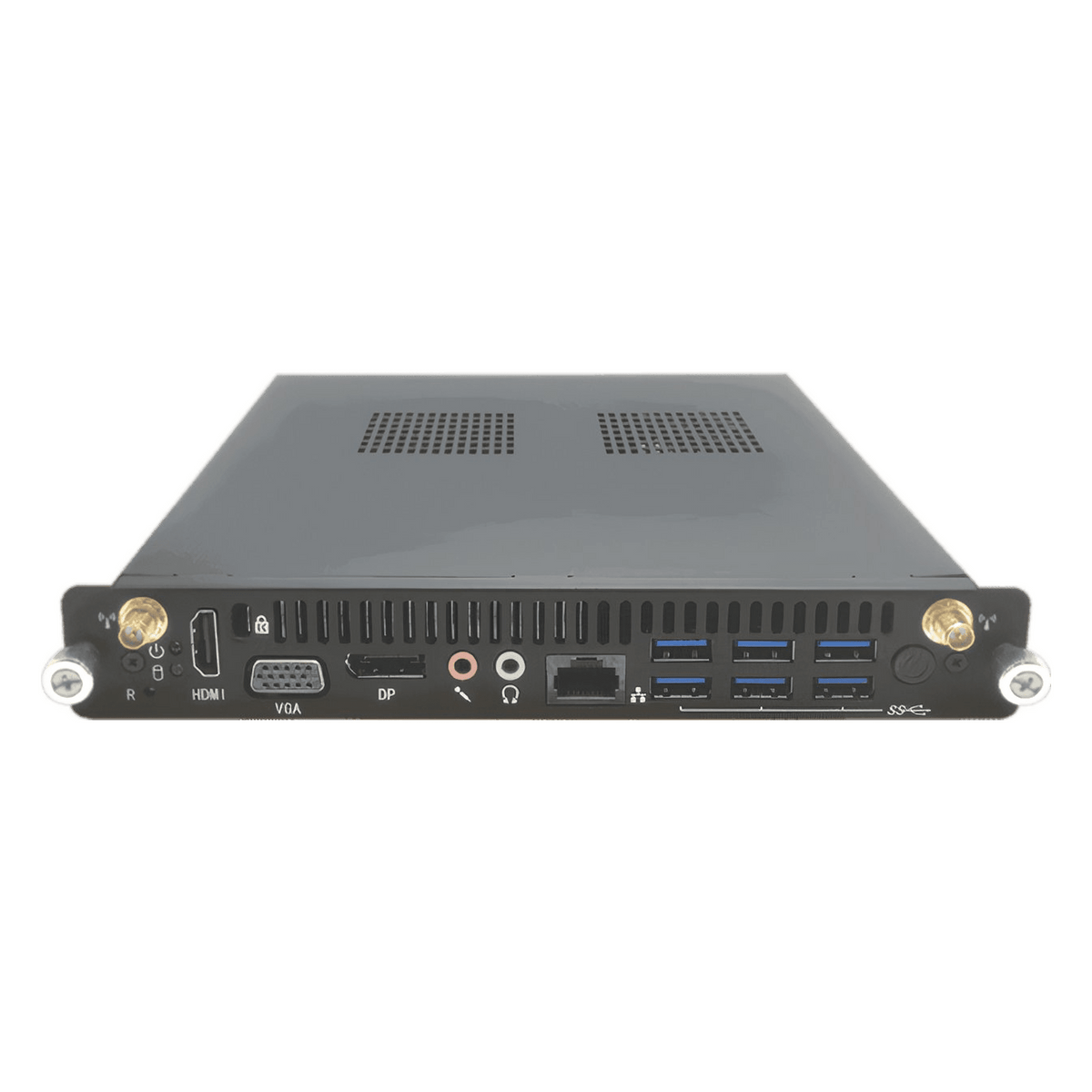

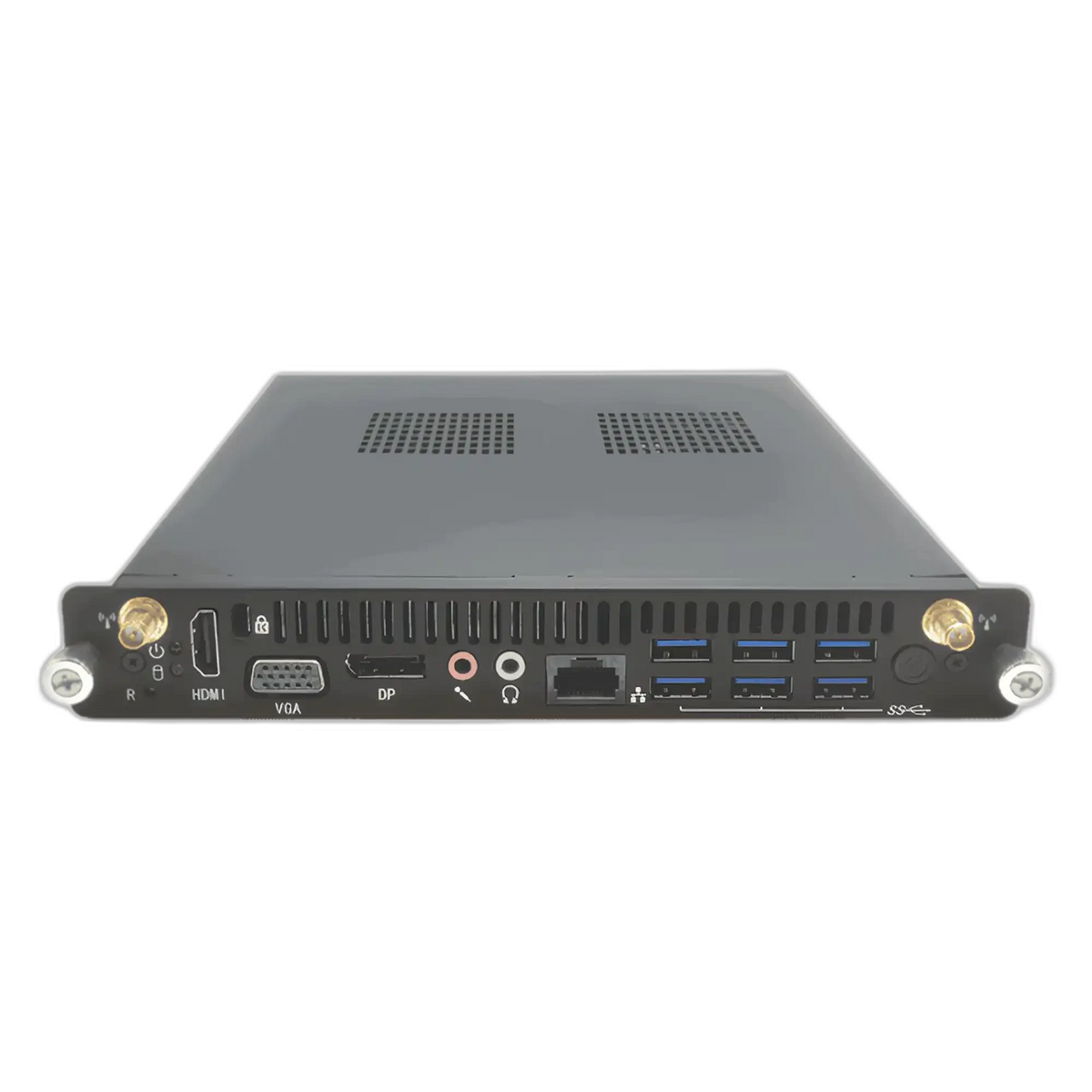

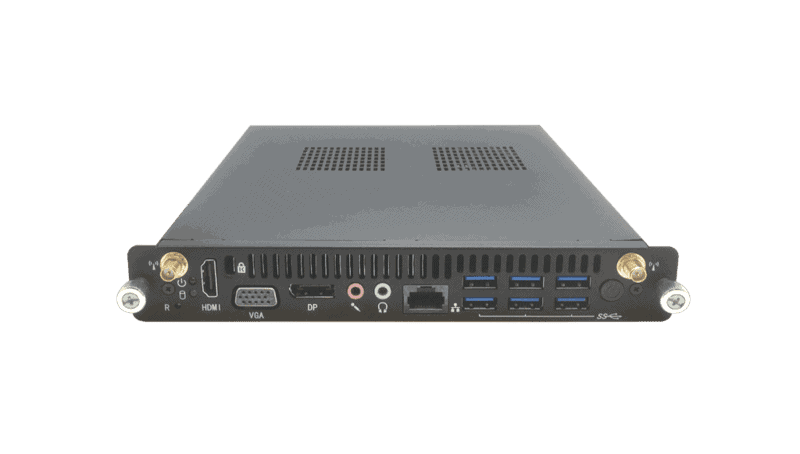

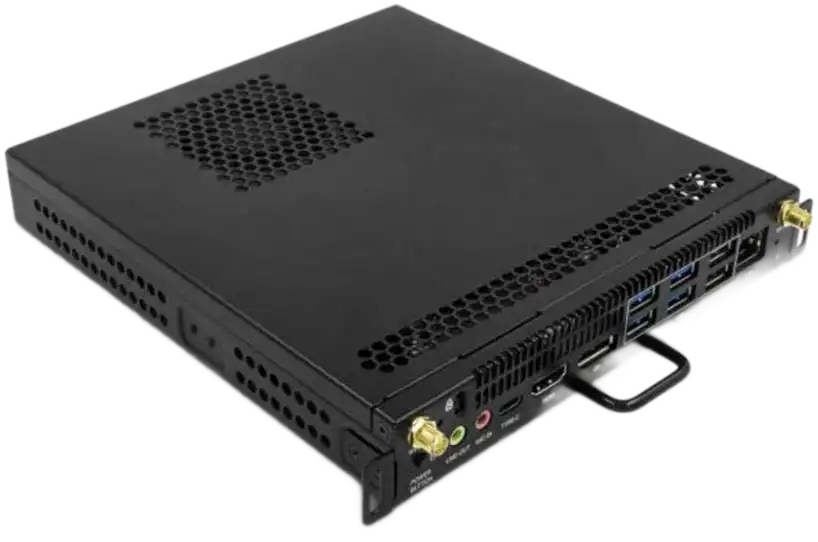

Its compact, black chassis and active cooling via a single brass and fan system help maintain stable operation during extended use. Simple plug-and-play installation through the OPS interface streamlines upgrades and system maintenance. Supports sharp 4K resolution video with H.265 hardware decoding for smooth playback of high-quality content. Multiple I/O options including 4 USB 3.0, 2 USB 2.0, HDMI, DP, Type-C, RJ45 LAN, Wi-Fi, and Bluetooth enable flexible networking and peripheral connections. Engineered for 24/7 continuous operation with efficient cooling and low standby power consumption. Expandable storage via M.2 NVMe SSD and dual-channel memory support for future-proofing performance.
The module slots directly into the OPS bay of Hikvision’s D5B (55/65/75/86-inch), D5A (65/75/86-inch) and D5C (75-inch) interactive panels, so the display and the computer stay a single unit — no external mini-PC bracketed to the back of the screen, no separate power brick, and one cable run to the wall. Choose the i5 build for scheduled signage playback and everyday meeting-room use, and the i7 build where the panel also has to drive whiteboarding software, video conferencing and a browser full of dashboards at the same time.
About Hikvision: visit the manufacturer at www.hikvision.com for the official product page, firmware updates and technical specifications.
Key features
- 4K resolution and H.265 decoding for premium video playback quality
- Multiple connectivity options including HDMI, DisplayPort, USB, and Wi-Fi
- Engineered for 24/7 continuous operation with active cooling system
- Expandable M.2 NVMe storage and dual-channel memory for scalability
Specifications
| Resolution |
4K 1 x HDMI 1.4, 1 x DP 1.2 |
| Intel Core generation |
13th i5-13420H |
| Memory |
8 GB i5 model; 16 GB on the i7 model |
| Processor |
i5, i7 |
| Compatible with |
Hikvision interactive flat panels (OPS slot) |
| Operating system |
Windows 11 Enterprise |
| Storage |
256 GB M.2 NVMe (i5 model); 512 GB SSD (i7 model) |
| Ports |
HDMI 1.4 × 1, DP 1.2 × 1, USB 3.0 × 4, USB 2.0 × 2, USB-C × 1, RJ45 (10/100/1000 Mbps) × 1, audio input/output |
| Wireless |
Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.2 |
| Power |
12 to 19 V DC input; 90 W max, 0.5 W standby (i5 model) |
| Dimensions |
195 × 30 × 180 mm |
| Weight |
About 1.2 kg in its carton |
