Hikvision commercial dashcam, 5 channel recording, ADAS, DSM, GPS, 4G, Wi-Fi, Bluetooth, dual SD and two way audio

Hikvision commercial dashcam, 5 channel recording, ADAS, DSM, GPS, 4G, Wi-Fi, Bluetooth, dual SD and two way audio

R 10,730.00 ZAR
R 10,730.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

AE-DI5052-G40 Pro INDOOR
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision commercial dashcam, 5 channel recording, ADAS, DSM, GPS, 4G, Wi-Fi, Bluetooth, dual SD and two way audio

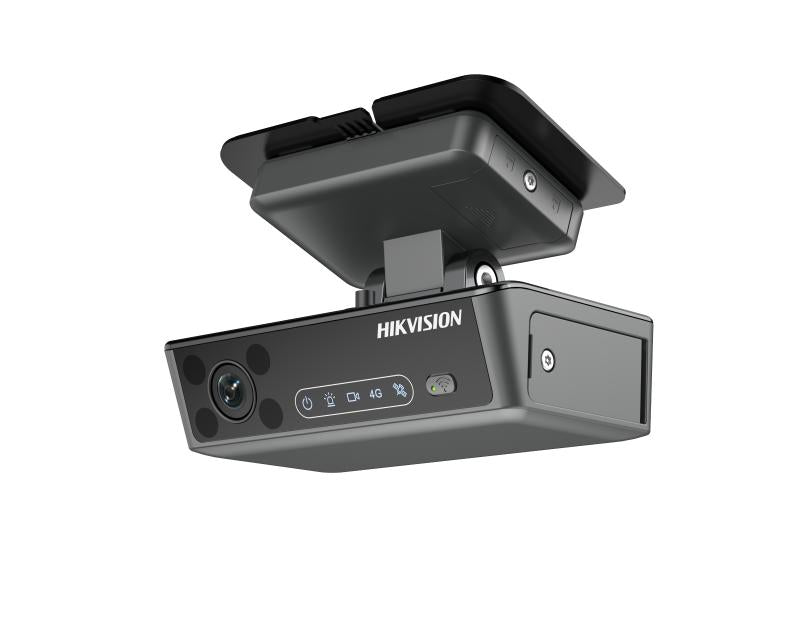

Hikvision AE-DI5052-G40 Pro: Hikvision commercial dashcam, 5 channel recording, ADAS, DSM, GPS, 4G, Wi-Fi, Bluetooth, dual SD and two way audio.

Key Features

  • Support up to 5-channel video recording, 2-ch default and 3-ch extension.
  • Front camera: 1620P，Rear camera: 1080P，Extension channel: 1080P.
  • Built-in Microphone and Speaker, support two-way audio function.
  • Support GPS/GLONASS/GALILEO and time, speed overlay on picture.
  • Built-in Wi-Fi communication module, support AP access point.
  • Built-in Bluetooth module, support connecting to third-party sensors.
  • Built-in 4G module, support 2×NANO SIM card.
  • Support 2 × Micro-SD card storage, each up to 1 TB. Support recording overwrite.
  • Support preview, playback and editing parameters via APP.
  • Support HCT, HCP and CMSV6 Platforms.
  • Built-in 6-axis gyroscope sensor, start emergency video and video backup lock when the vehicle has a collision or severe vibration.
  • Support 2-ch IO alarm input, 3-ch steering signal.

Specifications

Camera
Image Sensor Front view: 1/2.7" CMOS Rear view: 1/2.8" CMOS
Min. Illumination Front view: 0.1 Lux Rear view: support IR
Shutter Speed Front view: 1/30 s Rear view: 1/30 s
Focal Length Front view: 3mm Rear view: 2.28mm
FOV Front view: HFOV: 123° VFOV: 63° DFOV: 142° Rear view: HFOV:145° VFOV:78° DFOV: 172° Note: Horizontal, Vertical Tolerance±3°; Diagonal Tolerance±5°
Lens Mount Front view: M12 Rear view: M12
Max. Aperture Front view: F1.6 Rear view: F2.2
IR Wavelength 940nm
Supplement Light Type IR
Main Stream CH1: 2880 × 1620, 1920 × 1080 (default), 1280 × 720 CH2: 1920 × 1080 , 1280 × 720(CH2 Default) Note: The default resolution of CH3-CH5 is decided by external camera.
Sub-Stream CH1: 1280 × 720 (Default), 640 × 480 CH2~CH5: 640 × 480 (Default)
Video Compression H.264 (Default), H.265
Video Bit Rate CH1: 20 Mbps, 16 Mbps, 8 Mbps, 4 Mbps (default), 2 Mbps, 1 Mbps CH2~CH5: 4 Mbps, 2 Mbps, 1 Mbps (default), 512 Kbps
Stream Type PS Stream
Frame Rate Main Stream Frame Rate： 10 fps, 15 fps, 25fps, 30 fps available. The default CH1 is 25 fps, and CH2-CH5 is 15 fps. Sub-Stream Frame Rate： 10fps, 15fps, 25fps, 30 fps available, CH1-CH5 default 15 fps.
Video Input 5-Channel Video (Default: 2-Channel; Extension: 3-Channel)
Audio Compression AAC/G711u (Default)/G711A
Audio Bit Rate G711U: 64 kbps (Default) G711A: 64 kbps AAC: 64 kbps
Audio Sampling Rate G711U: 8kHz(Default) G711A: 8kHz AAC: 16kHz
Built-in Mic Support
Built-in Speaker Support
Audio Input 2-Way
Wi-Fi Protocol 802.11 b/g/n
Frequency Range 2.4 GHz
Antenna 2.4 GHz
Mobile Communication Type 4G/3G/2G
SIM Card Type Nano SIM card
SIM Card Slot 2 (plug-in type, support industrial-grade Nano SIM card, dual-card single waiting)
Dial-up Support
SNR Front view: Wide Dynamic Range Rear view: Linear
Wide Dynamic Range (WDR) Front view: 42dB Rear view: 42dB
OSD Date, time, GPS latitude and longitude, speed, license plate, and channel name.
bluetooth Support
Ethernet Interface 1 x 6-pin aviation header
Local Storage Up to 2TB (up to 1TB each)
Video Output 1-Way CVBS/TVI/AHD Video Output
Audio Audio Output:1-Way, Built-In Speaker Audio Input:2-Way, Built-In Sound Pickup
RS-232 1
Reset Key 1 (pinhole button) Press (≥1 sec & < 5 sec) to reset the device to restart. Press and hold the reset key (≥ 5 sec) to restore the default parameter settings.
Power Output 1 (10pin BMW)

Product Details

  • Model: AE-DI5052-G40 Pro
  • Brand: Hikvision
  • Hikvision model reference: AE-DI5052-G40 PRO NEW
