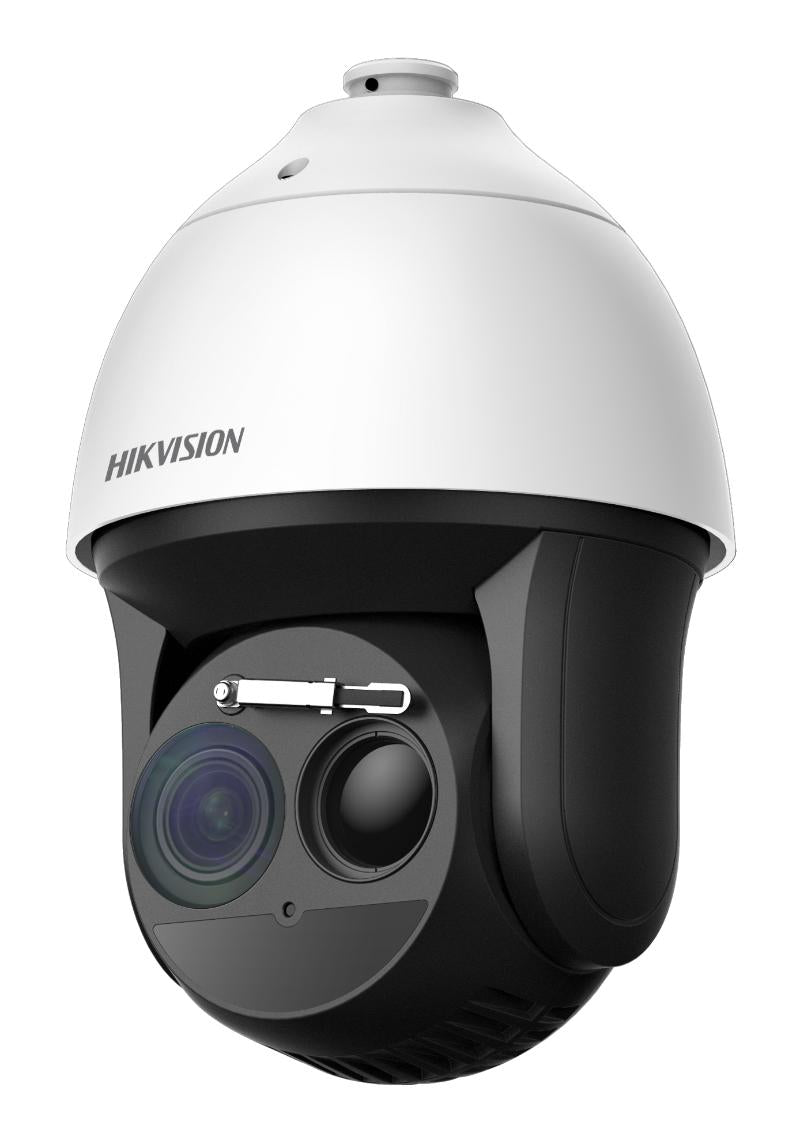

Hikvision Anti-corrosion Thermal & Optical Bi-spectrum Network Speed Dome

Name: Hikvision Anti-corrosion Thermal & Optical Bi-spectrum Network Speed Dome
Brand: Sensor Security
SKU: DS-2TD4137-50/WY
Price: 164429.00 ZAR
Availability: InStock

R 164,429.00 ZAR

Sale Sold out

Shipping calculated at checkout.

Quantity

Master Card
Visa Card
Visa Electron

Maestro Card
Instant Eft
MobiCred

SKU:DS-2TD4137-50/WY

Hikvision Anti-corrosion Thermal & Optical Bi-spectrum Network Speed Dome

Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance and exit
Temperature exception alarm for fire prevention
384× 288 (the resolution of output image is 384 × 288) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
High quality detector with 10 years guarantee
Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
Thermal channel supports EIS, conflicted with intelligent function
Fire and smoke detection algorithm
- Thermal Module
- Image Sensor VOx Uncooled Focal Plane Arrays
- Resolution384 × 288
- Pixel Interval17 μm
- Response Waveband8 μm to 14 μm
- NETD Less than 40 mK (@ 25 °C,F#=1.0)
- Focal Length50 mm
- Focus Mode Athermalized
- IFOV0.34 mrad
- ApertureF1.0
- Field of View7.5° × 5.6° (H × V)
- Min. Focusing Distance50m
- Digital Zoom×2, ×4, ×8
- Optical Module
- Image Sensor1/1.8" Progressive Scan CMOS
- Resolution2688 × 1520, 4 MP
- Min. Illumination Color: 0.005 Lux @(F1.3，AGC ON), B/W: 0.001 Lux @(F1.3，AGC ON)
- Field of View56.6° ×33.7° (H × V)~1.8° ×1.0° (H × V)
- Focal Length6-240 mm, 40x
- Aperture (Range)F1.3-F4.6
- Focus Mode Auto/Semi-auto/Manual
- Digital Zoom×2, ×4, ×8, ×16
- Shutter Speed1s to 1/30,000s
- WDR120 dB
- Optical Defog Yes
- Image Effect
- Picture in Picture Display partial image of thermal channel on the full screen of optical channel
- Target Coloration Supported in white hot and black hot mode
- PTZ
- Movement Range Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip)
- Pan Speed Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s
- Tilt Speed Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s
- Proportional Zoom Yes
- Presets300 in total, 273 are configurable.
- Patrol Scan8; Up to 32 Presets Per Patrol
- Pattern Scan4; More Than 10 Minutes Per Pattern
- Power Off Memory Yes
- Park Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- PT Status Turn On/Turn Off
- Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
- Illuminator
- IR Distance Up to 150m
- IR Intensity and Angle Automatically adjusted
- Smart Function
- VCA Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
- Temperature Measurement Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy± 8 °C (±14.4 °F)
- Fire Detection Dynamic fire detection, up to 10 fire points detectable.
- Video and Audio
- Main Stream
  Thermal channel

  50fps(1920 × 1080, 1280 × 960, 1280 × 720，704×576，640×512，384×288)

  Optical channel

  50Hz:25fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)

  60Hz:30fps(2688 × 1520，1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-stream
  Thermal channel

  50fps(704×576，640×512，384×288)

  Optical channel

  50Hz:25fps(704 × 576, 352 × 288)

  60Hz:30fps(704 × 576, 352 × 288)
- Video Compression
  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG
- Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
- Network Storage MicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- APIISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G)
- Simultaneous Live View Up to 20 channels
- User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
- Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Input7-ch inputs (0-5 VDC)
- Alarm Output2-ch relay outputs, alarm response actions configurable
- Alarm Action Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear Level; Impedance: 600 Ω
- Communication Interface
  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface
- Analog Video Output1.0 V [p-p]/75 Ω
- General
- Web Client Language
  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%, Hi-PoE
- Power Consumption65W Max
- Work Temperature/Humidity From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less
- Wiper Yes
- Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Dimension220 mm × 410 mm × 198.6 mm (8.66" × 16.15" × 7.82")
- Weight Approx. 9kg (19.84 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans350 m
- VCA Range for Vehicles1050 m
