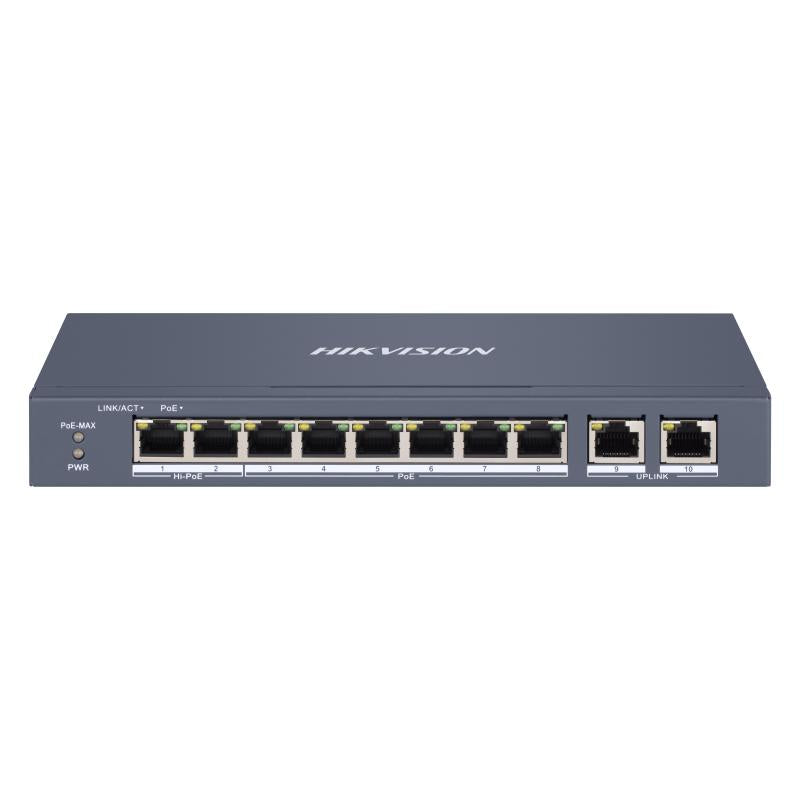

Hikvision 8 Port Fast Ethernet Smart POE Switch

Hikvision 8 Port Fast Ethernet Smart POE Switch

R 2,530.00 ZAR
R 2,530.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-3E1310HP-EI
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 8 Port Fast Ethernet Smart POE Switch

Hikvision DS-3E1310HP-EI: Hikvision 8 Port Fast Ethernet Smart POE Switch.

Key Features

  • 8 × 100 Mbps PoE RJ45 ports, 2 × gigabit network RJ45 ports
  • IEEE 802.3at/af/bt standard for PoE ports
  • Network topology management, and alarm push
  • 6 KV surge protection for PoE ports
  • Up to 300 m long-range transmission
  • AF/AT camera can reach up to 300 m in extend mode

Specifications

General
Shell Metal material, IP40
Net Weight 0.550 kg (1.21 lb)
Gross Weight 0.950 kg (2.09 lb)
Dimensions (W × H × D) 217.6 mm × 27.8 mm × 103.35 mm (8.56" × 1.09" × 4.06")
Operating Temperature 0 °C to 40 °C (0 °F to 104 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 54 VDC, 2.22 A
Installation Mode Desk-Mounted,Wall-Mounted
Max. Power Consumption 120 W
Power Consumption in Idle 4 W
Surge Protection 6 KV
Ports 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table 16 K
Switching Capacity 9.2 Gbps
Packet Forwarding Rate 6.84 Mpps
Internal Cache 4 Mbits
Long Range Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port Hi-PoE: Ports 1 to 2,PoE: Ports 3 to 8
Max. Port Power Port 1 to 2：90 W Ports 3 to 8：30 W
PoE Power Budget 110 W
Chemistry CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

Product Details

  • Model: DS-3E1310HP-EI
  • Brand: Hikvision
  • Hikvision model reference: DS-3E1310HP-EI Discontinued
View full details
