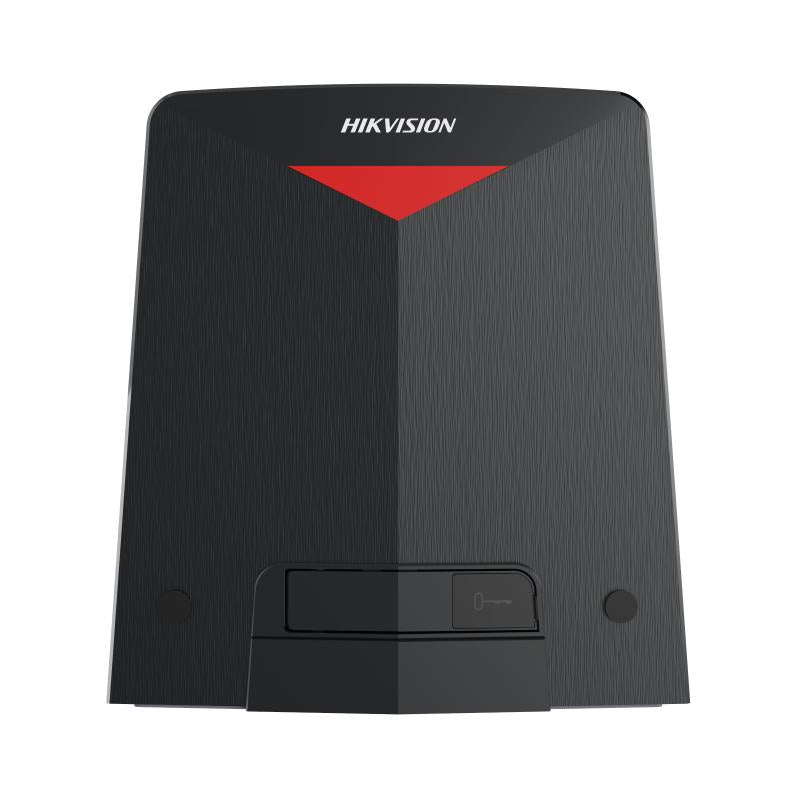

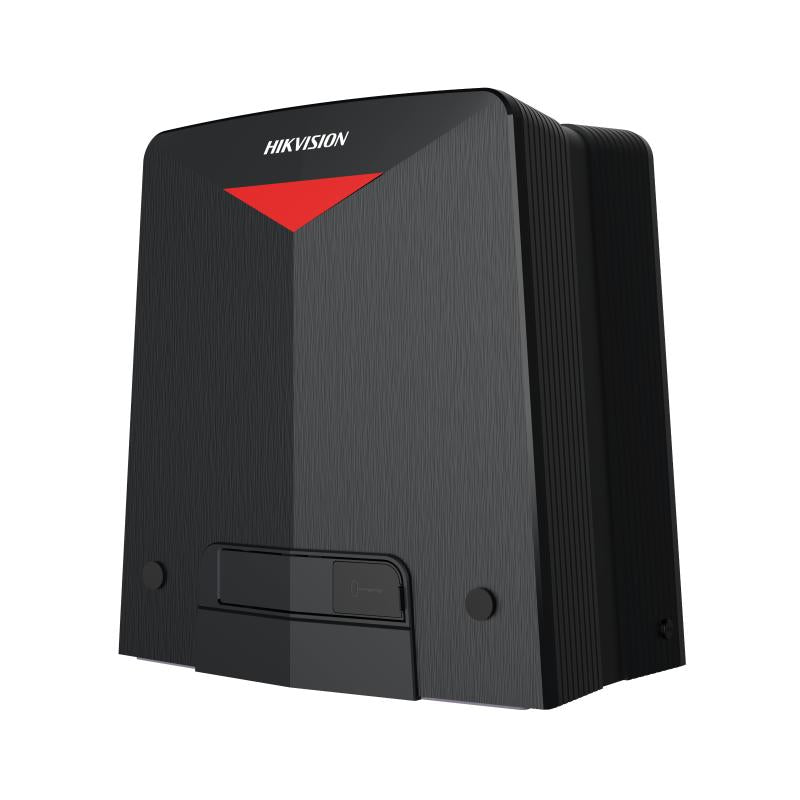

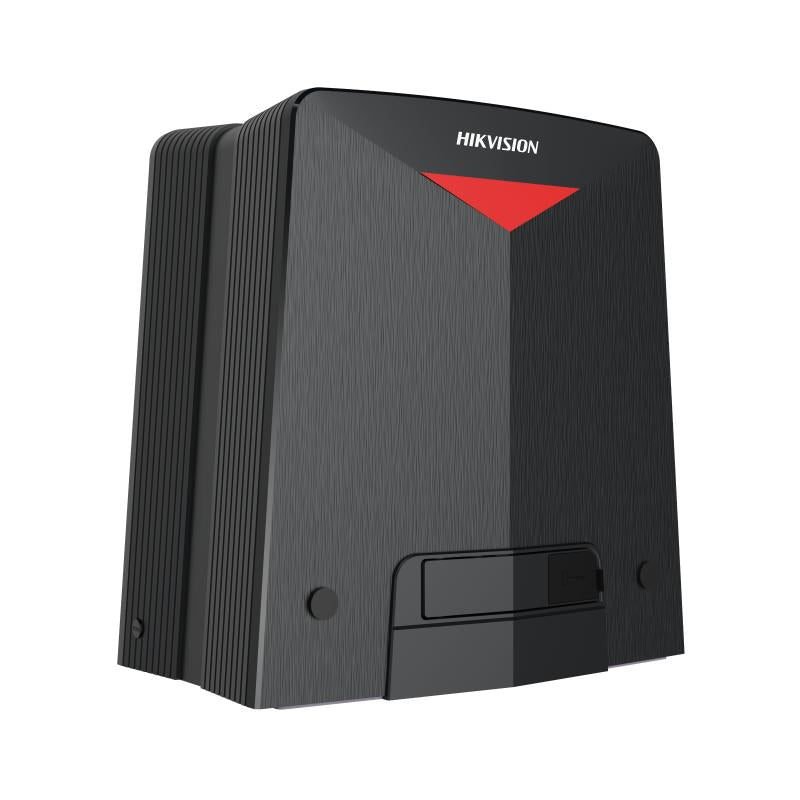

Hikvision 600KG gate motor -Includes 2x keyfob & baseplate (Requires 2x 7/8Ah 12V batteries - Non Lithium)

Hikvision 600KG gate motor -Includes 2x keyfob & baseplate (Requires 2x 7/8Ah 12V batteries - Non Lithium)

R 8,711.00 ZAR
R 8,711.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-K3GL606WX-WE
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 600KG gate motor -Includes 2x keyfob & baseplate (Requires 2x 7/8Ah 12V batteries - Non Lithium)

Hikvision DS-K3GL606WX-WE: Hikvision 600KG gate motor -Includes 2x keyfob & baseplate (Requires 2x 7/8Ah 12V batteries - Non Lithium).

Key Features

  • Support built-in WIFI and LAN interfaces, easy for remote management system.
  • Battery-driven, max open speed at 0.6 m/second, @17 Kgf (2 x 12V 7AH batteries are essential for normal operation, max dimension (W × H × D): 151mm x 94mm x 65mm).
  • Support Mobile web configuration with AP mode by a simple touch on NFC tags.
  • Support component status self- diagnostics
  • Support built-in access system, could achieve the functions of opening doors via PIN code, card, and QR code with external AC card reader.
  • The system supports linkage function, enabling integrated applications with intercom, alarm, and access control systems.
  • The product supports low-power mode, which allows for excellent power consumption management after a power outage, achieving longer standby times and more door opening and closing cycles.

Specifications

System
Motor Brush motor
MCBF ≥ 0.8 million times
Gate mass - maximum 600 Kg
Open speed Up to 0.6 m/second, @17 Kgf
Battery 12V 7AH x 2 (Not included in the box, purchase separately)
Motor Push Force - Starting 30 Kgf
Motor Push Force - Rated 17 Kgf
Gate Length - Maximum 20 m
Remote Keyfob Capacity 3,000
Wired network 10/100 Mbps self-adaptive Ethernet
Wi-Fi Support
4G Optional
Network interface 1
Exit button 2
Alarm output 2
TAMPER 1
RS-485 1
Case input 2
IR connection 2
Emergency Input 1
Power Supply Output 12V/0.2A*2
Buzzer Support
Expansion screw M12 X 150mm
Card capacity 250,000
Event capacity 500,000
Configuration via PC Web Support
Configuration via mobile Web Support
Hik-Connect Support
Multi-factor authentication Support
AP mode Support
Communication protocol TCP/IP,ISAPI
Keyfob Support, 868 MHz, within 200 m (Open area)
Pedestrian Mode Support
Reopen Support
Soft Start & Stop Support
Flashing light Support
Power consumption Standby: 5 W Working: 280 W Peak: 400 W
Power supply method Power supply: 100 to 240 VAC~, 50/60 Hz, Rated current: 0.8A, Peak current: 4A
Working temperature -15 °C to 55 °C (5 °F to 131 °F)
Working humidity 10% to 95% (No condensing)

Product Details

  • Model: DS-K3GL606WX-WE
  • Brand: Hikvision
  • Hikvision model reference: DS-K3GL606WX-WE
