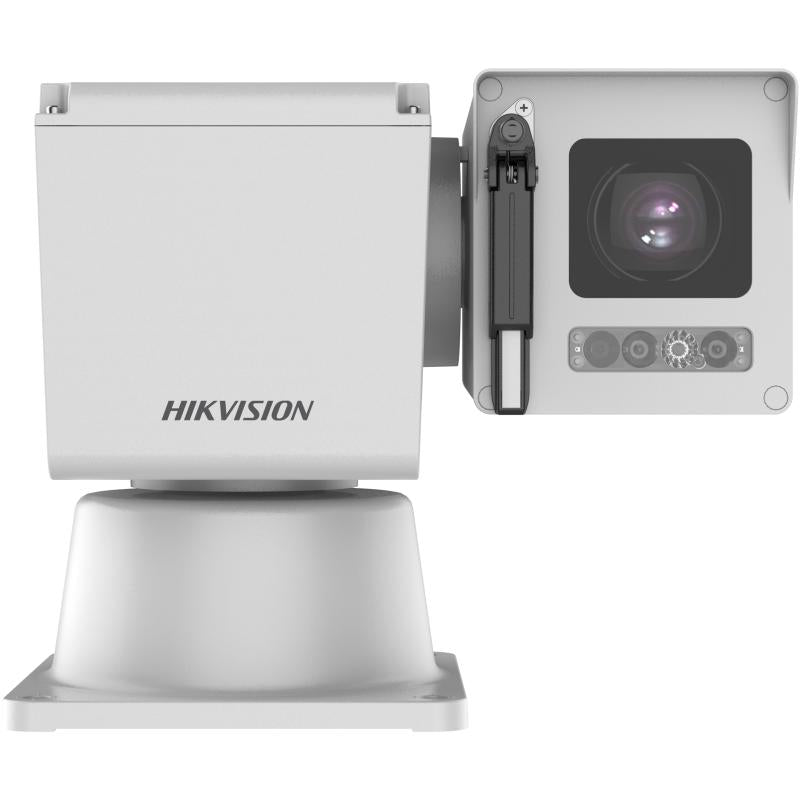

Hikvision 4MP 32X Powered by DarkFighter IR Network Positioning System PTZ Camera

Hikvision 4MP 32X Powered by DarkFighter IR Network Positioning System PTZ Camera

R 18,641.00 ZAR
R 18,641.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-2DY5A432MWG-ELW 32X
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 4MP 32X Powered by DarkFighter IR Network Positioning System PTZ Camera

Hikvision DS-2DY5A432MWG-ELW: Hikvision 4MP 32X Powered by DarkFighter IR Network Positioning System PTZ Camera.

Key Features

  • 1/2.8" progressive scan CMOS
  • Up to 2560 × 1440 @ 30 fps resolution
  • Min. illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
  • 32 × optical zoom, 16 × digital zoom
  • Low bit rate, True WDR, Defog, Smart IR
  • Smart Pan-Tilt Correction
  • Up to 100 m IR distance and 80 m white light
  • Support Hi-PoE

Specifications

Camera
Image Sensor 1/.2.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR
Shutter Speed 1/1 s to 30,000 s
Day & Night IR cut filter
Zoom 32 × optical,16 × digital
Slow Shutter Yes
Focal Length 5.5 to 176 mm
FOV Horizontal field of view: 60.72° to 2.2°, vertical field of view: 35.92° to 1.3°, diagonal field of view: 68.42° to 2.6°
Focus Auto,semi-auto,manual
Aperture F1.6
Zoom Speed Approx. 2.7 s
Supplement Light Type IR,White Light
Supplement Light Range White light distance: up to 80 m,IR distance: up to 100 m
Smart Supplement Light Yes
Movement Range (Pan) 360° endless
Movement Range (Tilt) +90° to -90°
Pan Speed Pan speed: configurable from 0.1° to 100°/s, preset speed: 100°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Power-off Memory Yes
Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 ×1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 ×1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16384 Kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) Support
Region of Interest (ROI) 8 fixed regions for each stream
Audio Compression G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-160 Kbps (MP2L2)

Product Details

  • Model: DS-2DY5A432MWG-ELW
  • Brand: Hikvision
  • Hikvision model reference: DS-2DY5A432MWG-ELW
