Hikvision 4ch 4A CCTV PSU

Hikvision 4ch 4A CCTV PSU

R 246.00 ZAR
R 246.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-2FA1225-C4
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

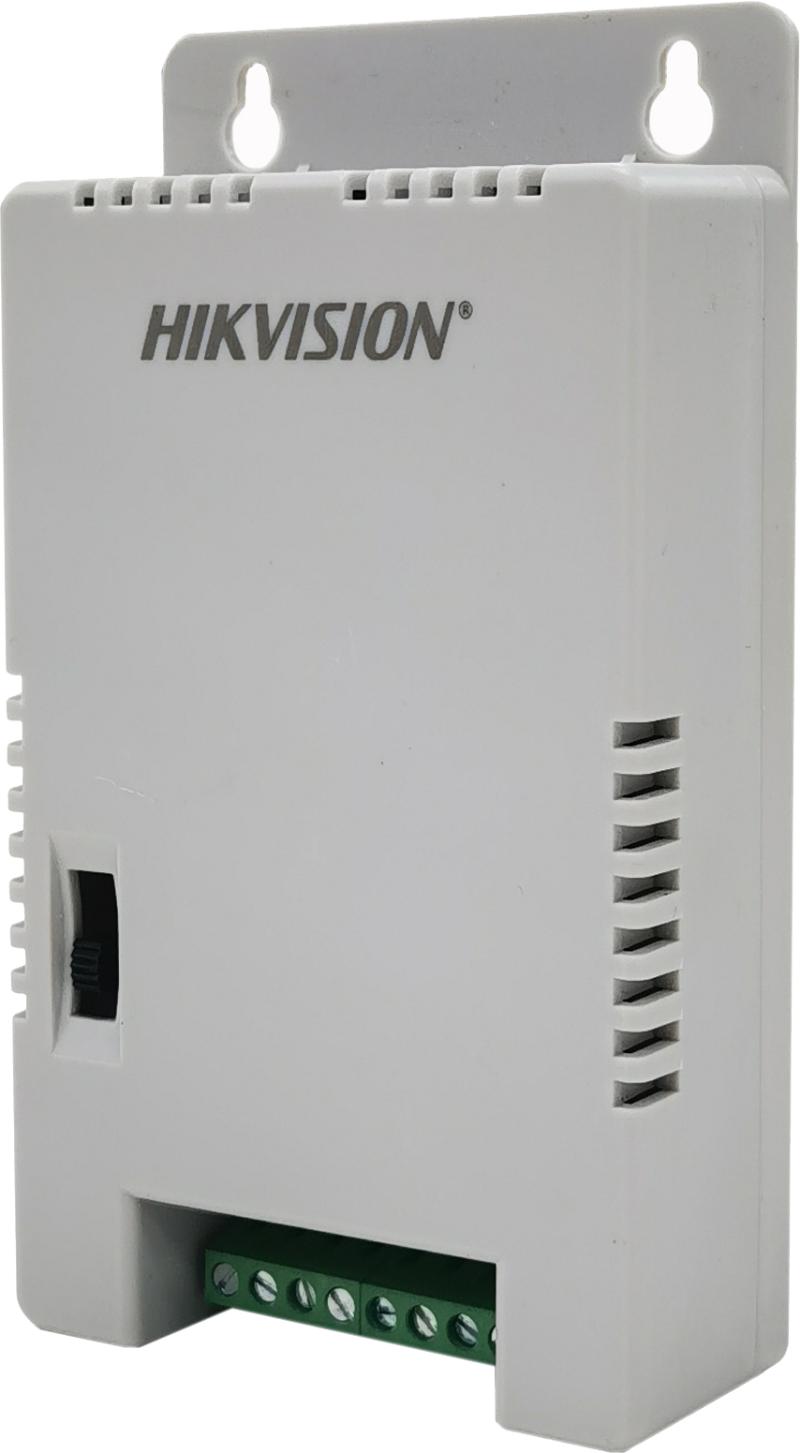

Hikvision 4ch 4A CCTV PSU

Hikvision DS-2FA1225-C4: Hikvision 4ch 4A CCTV PSU.

Key Features

  • 48 W, 12 VDC/1 A per channel
  • Over current/short circuit/over voltage protection
  • Good EMC performance
  • Compact size; applicable to cameras
  • 150 to 285 VAC wide voltage input

Specifications

Parameters
Appearance White
Dimension 144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")
Operating Conditions 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED Indicator Green
Input 150 to 285 VAC, 47 Hz to 63 Hz
Output 12 VDC/1 A per channel
Ripple & Noise 150 mVp-p 0.15 Vp-p (150 mV)
AC Input Connector C4
DC Output Connector DC Plug: grid terminal
Storage Conditions -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation Normal: 12 VDC Long: 13.5 VDC Ex-Long: 15 VDC

Product Details

  • Model: DS-2FA1225-C4
  • Brand: Hikvision
  • Hikvision model reference: DS-2FA1225-C4(UK)
