DS-3T0506HP-E/HS_C

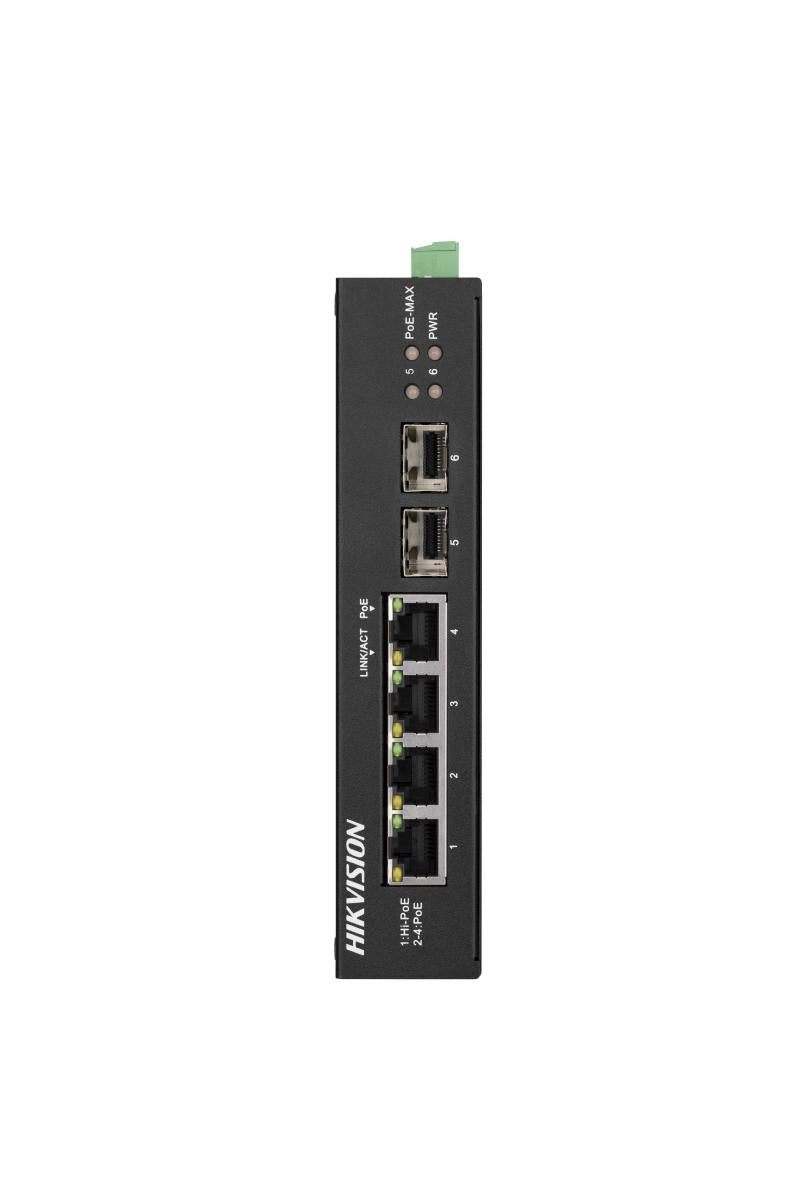

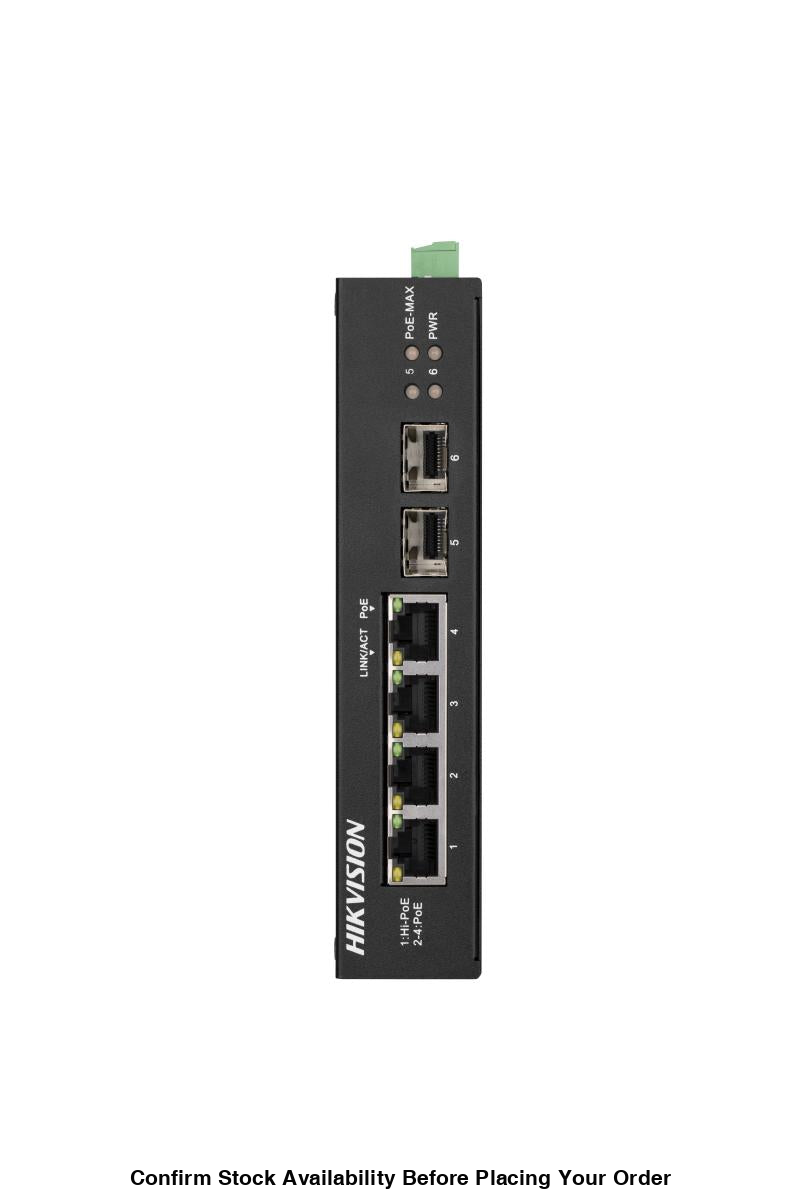

4 Port Gigabit Unmanaged Harsh POE Switch

Industrial 4 port gigabit POE switch 60w POE budget 2 SFP ports

  • 3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical port.
  • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
  • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
  • 6 kV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • PoE watchdog to auto detect and restart the cameras that do not respond.
  • Port isolation to improve network security.
  • Wire-speed forwarding.
  • Wider temperature (-30 °C to 65 °C) design.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Reliable fan-free design.
    • General
    • ShellMetal material, fan-free design
    • Net Weight0.38 kg (0.84 lb)
    • Gross Weight0.94 kg (2.07 lb)
    • Dimensions (W × H × D)158.0 mm × 101.2 mm × 31.6 mm (6.22'' × 3.98'' × 1.24'')
    • Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Relative Humidity5% to 95% (no condensation)
    • Power Supply48VDC, 1.35A
    • Max. Power Consumption65 W
    • Power Consumption in Idle5 W
    • Installation Mode Desk-Mounted Rail
    • Surge Protection6 KV
    • Network Parameters
    • Ports4 × Gigabit PoE port,2 × Gigabit fiber optical port
    • MAC Address Table2 K
    • Switching Capacity12 Gbps
    • Packet Forwarding Rate8.928 Mpps
    • Internal Cache1 Mbits
    • PoE Power Supply
    • PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
    • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    • PoE Port

      Hi-PoE: Port 1

      PoE: Ports 2 to 4

    • Max. Port Power

      Port 1: 60 W

      Ports 2 to 4: 30 W

    • PoE Power Budget65 W
    • Dialing Function
    • Long Range

      Ports 3 to 4: up to 300 m

      Long range performance may vary depend on camera model or cable condition.

    • Port Isolation Ports 1 to 4: port isolation mode to improve network security.
    • PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
    • Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • Chemistry CE-RoHS (2011/65/EU)
