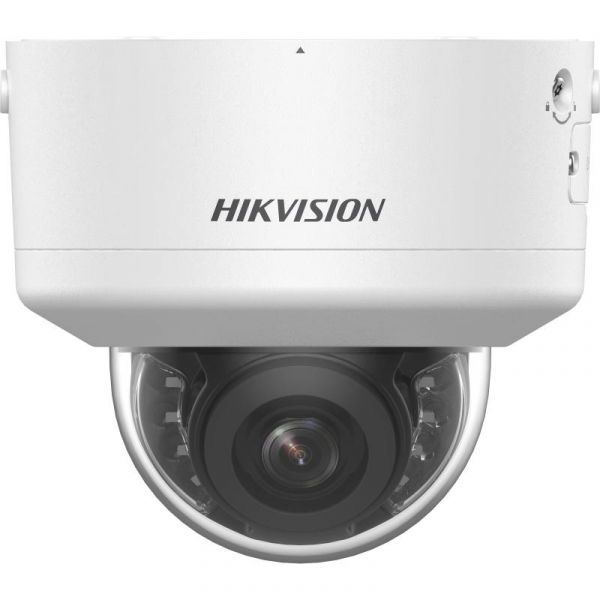

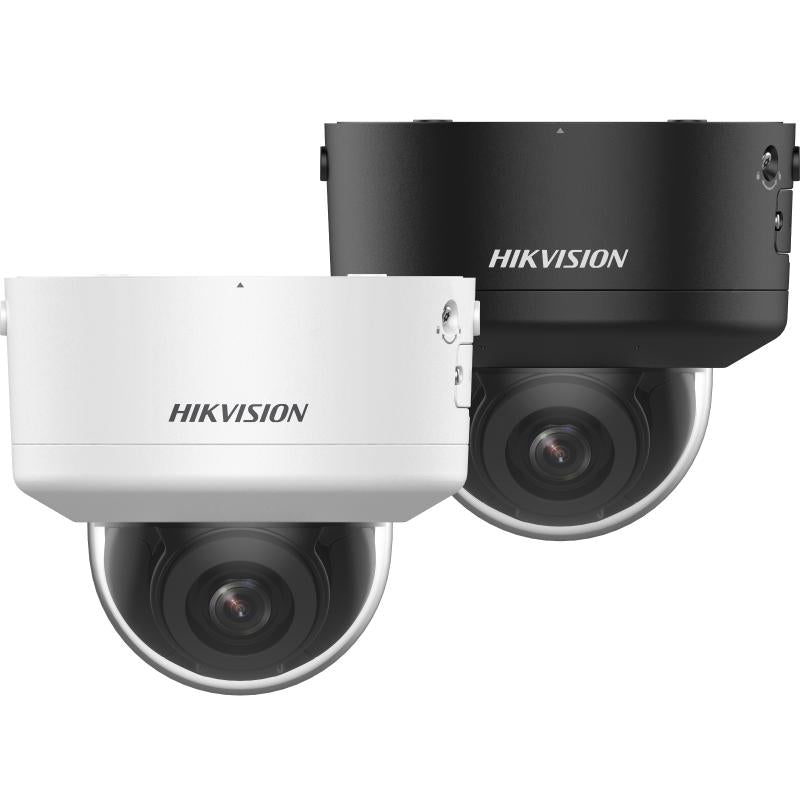

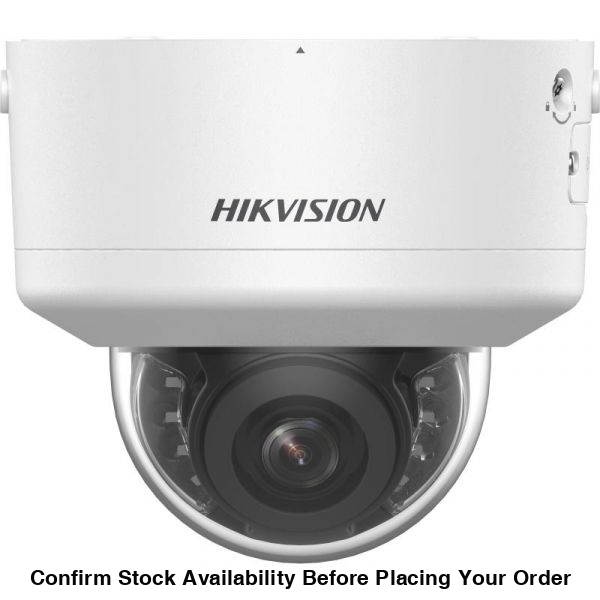

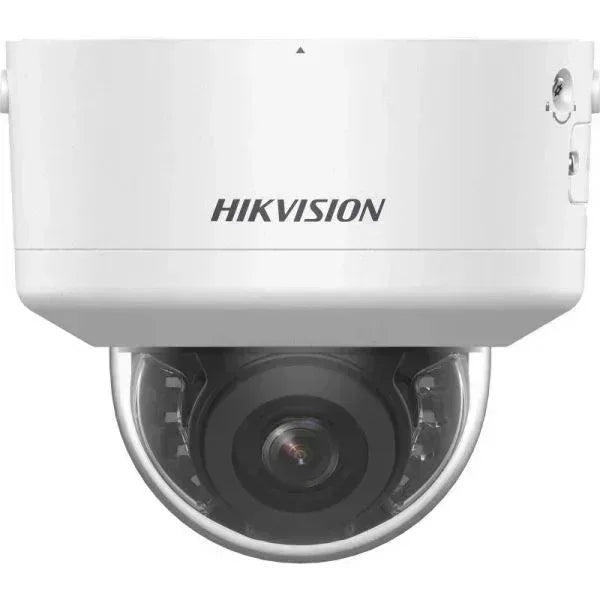

Hikvision 4 MP AcuSense PTRZ Varifocal Dome Network Camera

Hikvision 4 MP AcuSense PTRZ Varifocal Dome Network Camera

R 6,799.00 ZAR
R 6,799.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-2CD2746G2H-IPTRZS 2.8-12mm

Hikvision 4 MP AcuSense PTRZ Varifocal Dome Network Camera

  • Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Human and vehicle classification based on deep learning
  • Water and dust resistant (IP66) and vandal resistant (IK10)
  • Audio and alarm interface available
    • Camera
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution2688 × 1520
    • Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • Day & Night IR cut filter
    • Angle Adjustment

      Remote adjustment (Max. 1,000 cycles)

      Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

    • Lens
    • Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
    • Focal Length & FOV2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
    • Lens Mount Integrated
    • Iris Type Fixed
    • Aperture Max. F1.2
    • Depth of Field1 m to ∞
    • DORI
    • DORI

      Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m

      Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m

    • Illuminator
    • Supplement Light Type IR
    • Supplement Light Range Up to 40 m
    • Smart Supplement Light Yes
    • IR Wavelength850 nm
    • Video
    • Main Stream

      50 Hz:

      25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz:

      30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz:

      25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz:

      30 fps (1280 × 720, 640 × 480, 640 × 360)

    • Third Stream

      50 Hz:

      10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz:

      10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      *Third stream is supported under certain settings.

    • Video Compression

      Main stream: H.265/H.264/H.264+/H.265+,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264,

      *Third stream is supported under certain settings.

    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 Type Baseline Profile, Main Profile, High Profile
    • H.265 Type Main Profile
    • Bit Rate Control CBR,VBR
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Audio
    • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Type Mono sound
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
    • Environment Noise Filtering Yes
    • Network
    • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Web Socket, Web Sockets, SRTP, SFTP
    • Simultaneous Live View Up to 6 channels
    • APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
    • Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
    • ClientiVMS-4200,Hik-Connect,Hik-Central
    • Web Browser

      Plug-in required live view: IE 11,

      Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

      Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

    • Image
    • Image Parameters Switch Yes
    • Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
    • Day/Night Switch Day, Night, Auto, Schedule
    • Image EnhancementBLC,HLC,3D DNR
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)120 dB
    • Privacy Mask4 programmable polygon privacy masks
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage Built-in memory card slot, support microSD/micro SDHC/micro SDXC card, up to 512 GB
    • Audio

      1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

    • Alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
    • Reset Key Yes
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
    • Smart Event Scene change detection
    • Linkage Upload to FTP/NAS/memory card ,notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
    • Deep Learning Function
    • Face Capture Yes
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggering by specified target types (human and vehicle)

    • General
    • Power

      12 VDC ± 25%, 1.05 A, max. 12.6 W, reverse polarity protection ,two-core terminal block,

      PoE: IEEE 802.3at, Class 4, max. 15 W

    • Material Metal
    • DimensionØ155 mm × 140.4 mm (Ø6.10" × 5.53")
    • Package Dimension203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")
    • Weight Approx. 840 g (1.9 lb.)
    • With Package Weight Approx. 1450 g (3.2 lb.)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding, flash log
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
