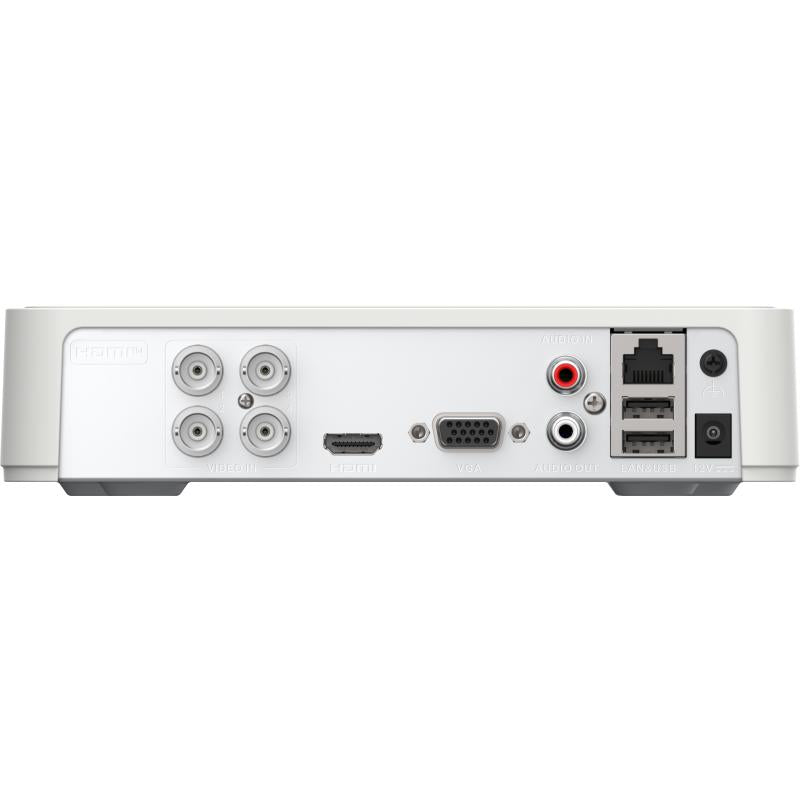

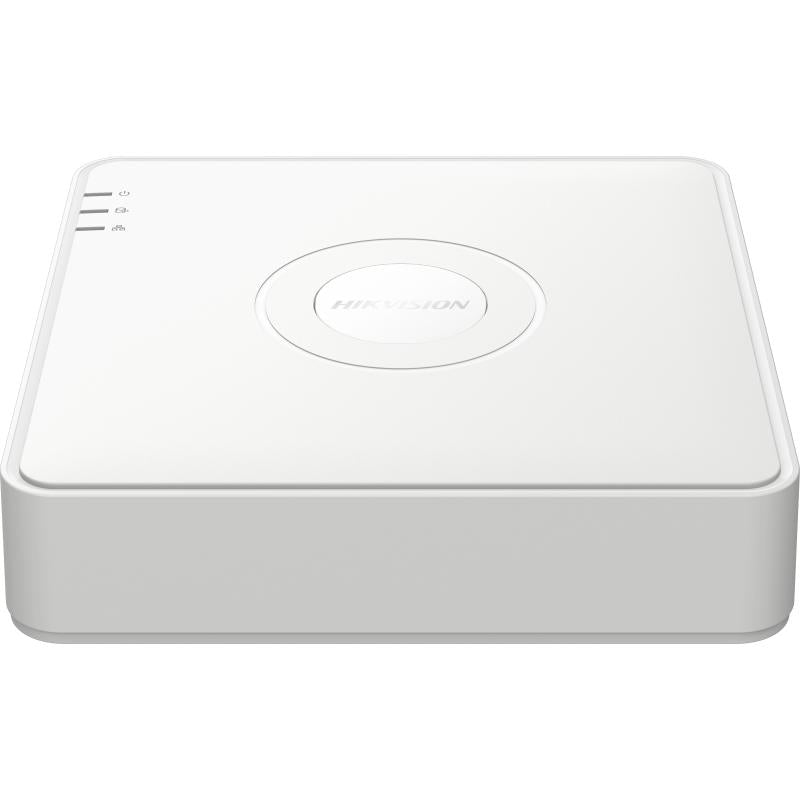

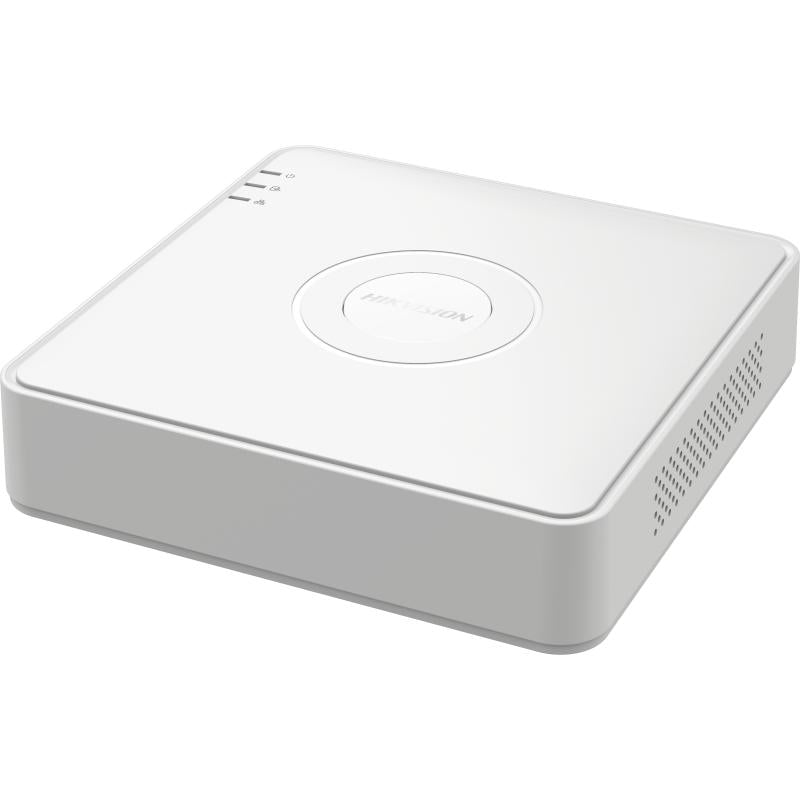

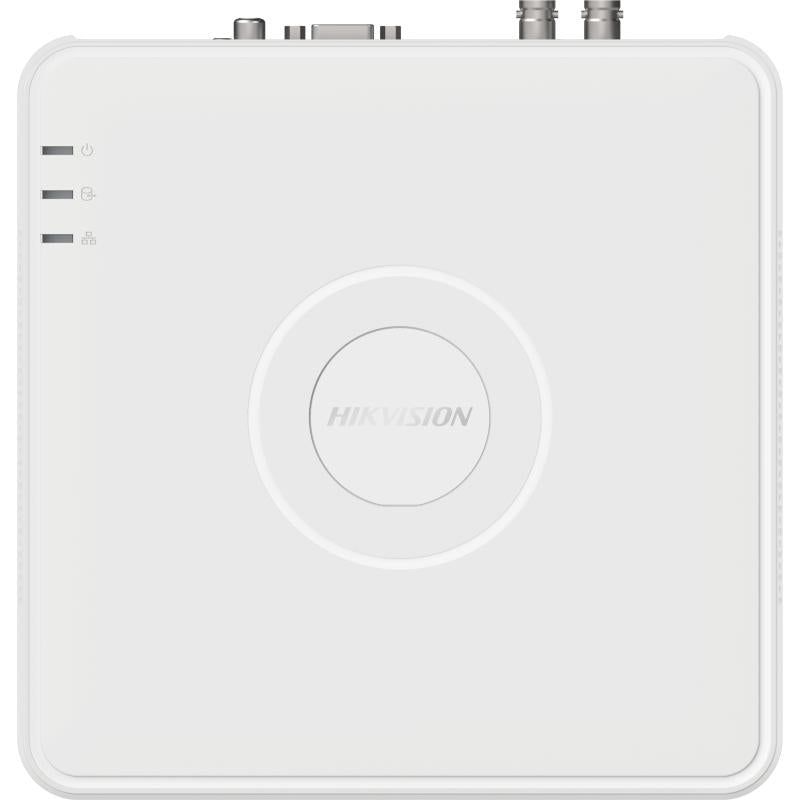

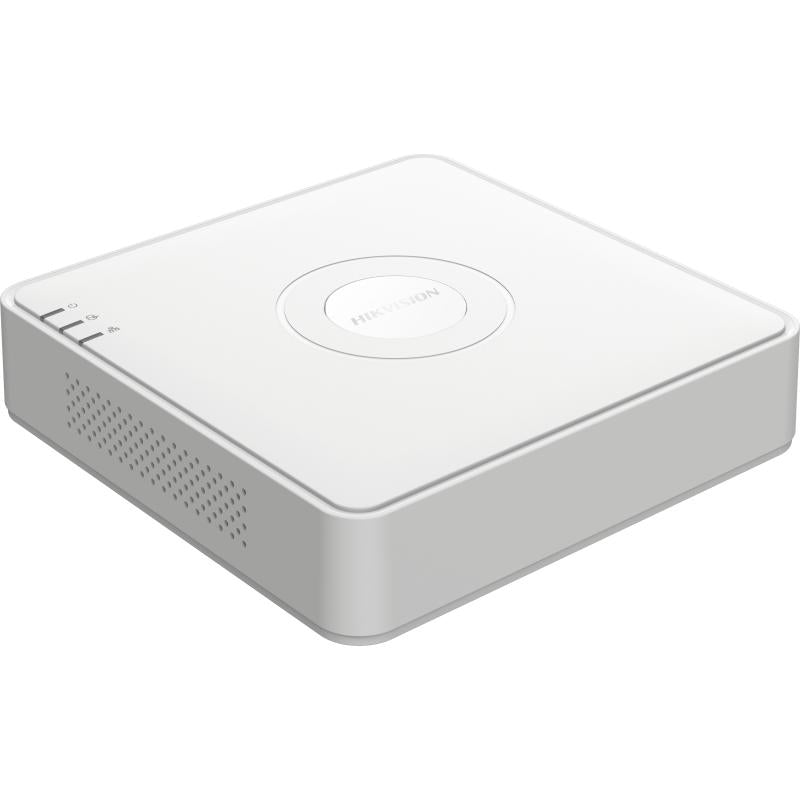

Hikvision 4-ch 1080P Mini 1U H.265 AcuSense DVR

Hikvision 4-ch 1080P Mini 1U H.265 AcuSense DVR

R 1,427.00 ZAR
R 1,427.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

IDS-7104HQHI-M1/T
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 4-ch 1080P Mini 1U H.265 AcuSense DVR

Hikvision IDS-7104HQHI-M1/T: Hikvision 4-ch 1080P Mini 1U H.265 AcuSense DVR.

Key Features

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Deep learning-based perimeter protection
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 6-ch IP camera inputs (up to 6 MP)
  • Encoding ability up to 3K/5M Lite @ 12 fps

Specifications

Facial Detection
Facial Detection and Capture Face picture detection, face picture search
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
IP Video Input 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 2K(2304 x 1296)@20 fps, 1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input 3K(2880 × 1620)@25/20 fps, 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS Input Support
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI/VGA simultaneous output
Audio Input 1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 4-ch
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode is not enabled: 2K/3K lite/5 MP lite/4 MP lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 2K/3K lite/5 MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Total Bandwidth 72 Mbps
Remote Connection 32
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
SATA 1 SATA interface
Capacity Up to 10 TB capacity for each disk
Alarm In/Out N/A (optional to support)
USB Interface Real panel: 2 × USB 2.0
Power Supply 12 VDC, 1.5 A
Consumption ≤ 8 W (without HDD)
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

Product Details

  • Model: IDS-7104HQHI-M1/T
  • Brand: Hikvision
  • Hikvision model reference: iDS-7104HQHI-M1/T
