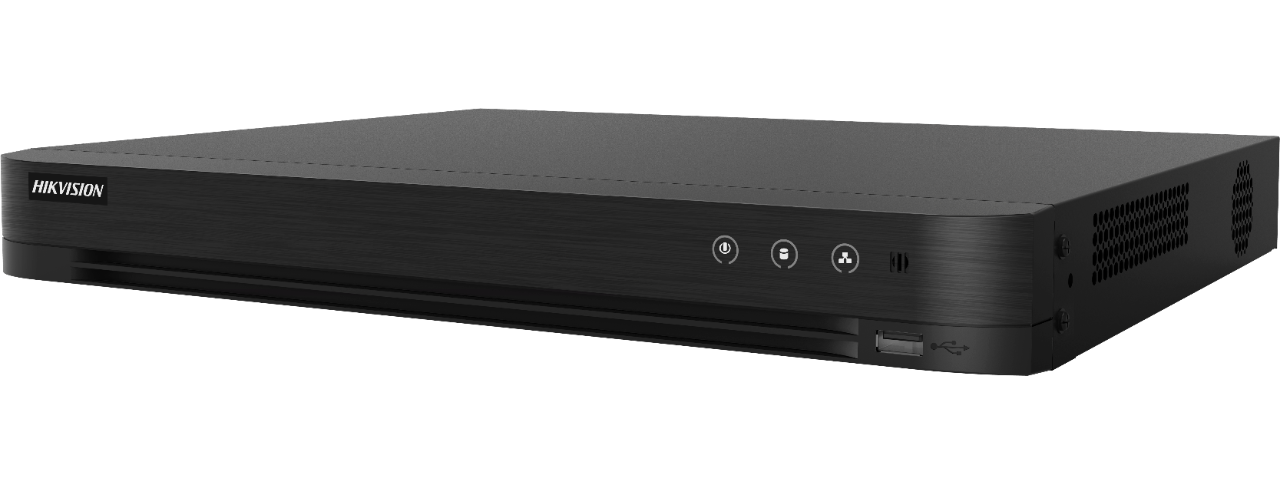

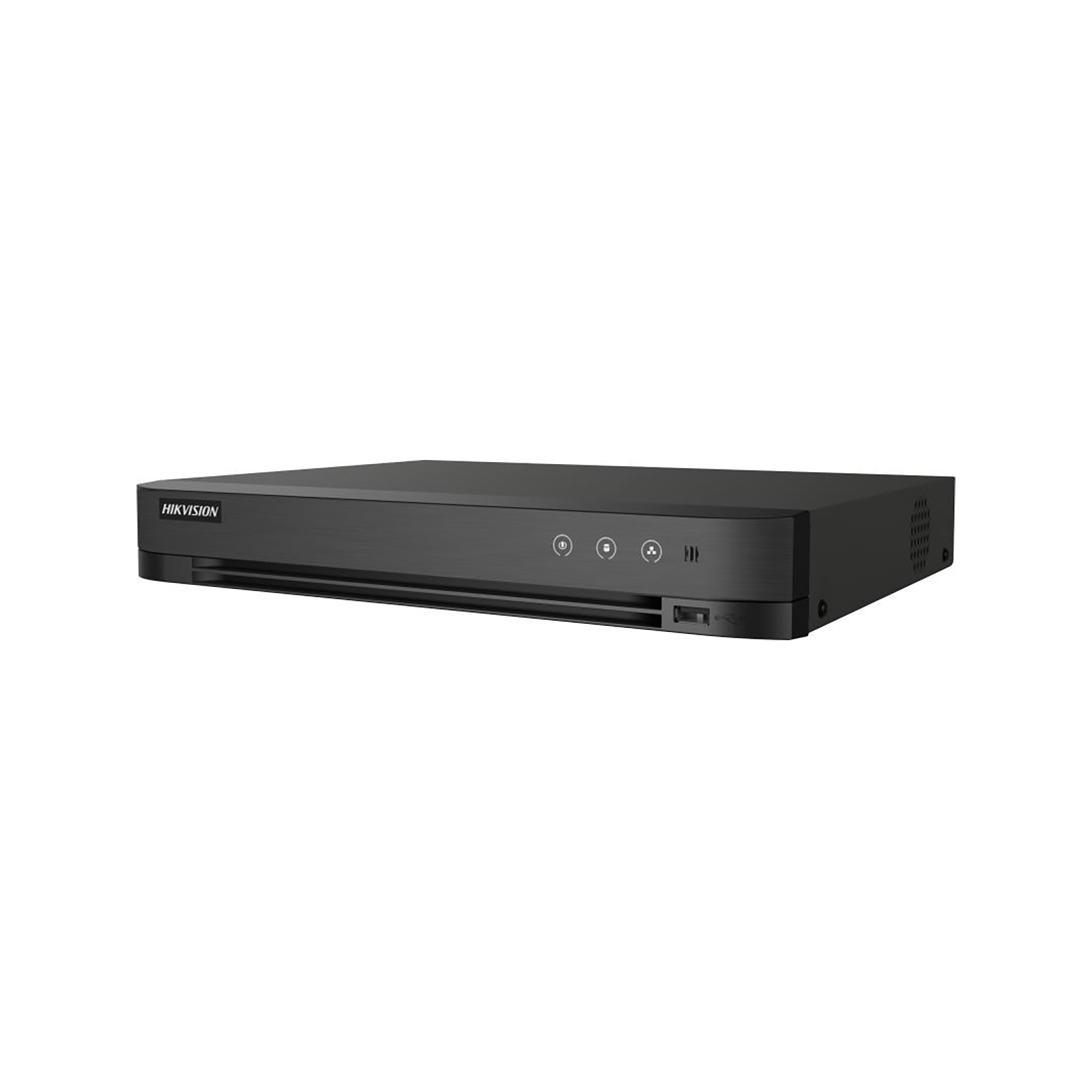

Hikvision 32 Channel 1080p 1U H.265 AcuSense DVR
Hikvision 32 Channel 1080p 1U H.265 AcuSense DVR
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:IDS-7232HQHI-M2-XT
Hikvision 32-ch 1080p 1U H.265 AcuSense DVR
- 32 channels and 2 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K/ 5MP Lite@12fps
- Up to 40 channels IP camera inputs, each channel up to 6MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection Technology
- Support All channels HDTVI Two-Way Audio Technology
-
- Facial Recognition
-
Face Picture Library
Up to 16 face picture libraries ;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
- Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle Analysis Up to 8-ch (advanced model)
- Facial Detection
-
Facial Detection and Capture
Face picture detection, face picture search;
4-ch face picture capture
- Video and Audio
- IP Video Input8-ch (up to 40-ch), each up to 6 MP resolution,
-
Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
-
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous playback16-ch
- HDTVI Input3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 32-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-stream Support main stream or sub stream
- Stream Type Video, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Decoding
- Decoding Capability up to 24-ch 1080P@30fps
- Network
- Total Bandwidth256Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Remote Connection128
-
Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- Capacity Up to 12 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
-
USB Interface
Front panel: 1 × USB 2.0
Rear panel: 2 × USB 3.0
- Alarm In/Out N/A (optional to support)
- General
- Power Supply12 VDC, 5 A
- Consumption≤ 60 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
- Weight≤ 2.1 kg (4.6 lb)
