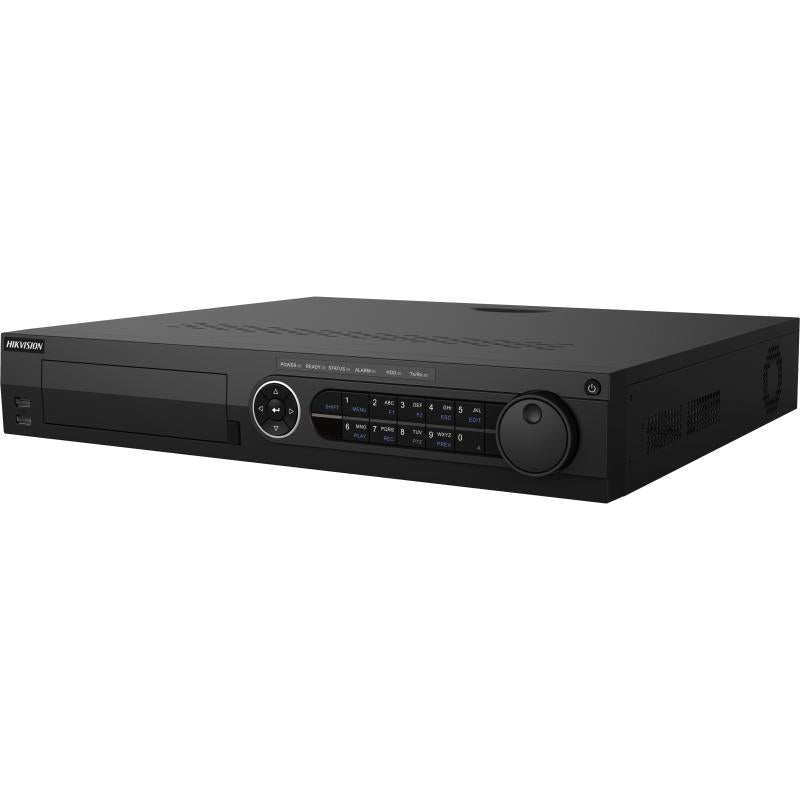

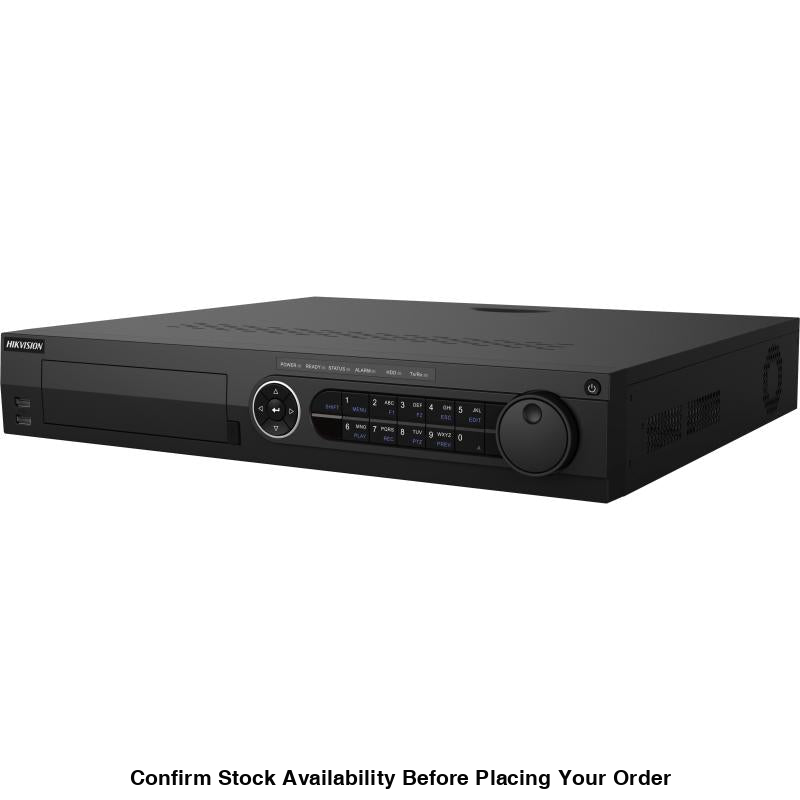

Hikvision 32 Channel 1080p 1.5U H.265 AcuSense DVR
Hikvision 32 Channel 1080p 1.5U H.265 AcuSense DVR
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:IDS-7332HQHI-M4/S
Hikvision 32-ch 1080p 1.5U H.265 AcuSense DVR
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 48-ch IP camera inputs and 4 SATA interfaces
- Up to 1080p@15 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- POS triggered recording and POS information overlay
-
- Motion Detection 2.0
-
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle Analysis Up to 8-ch, for channel 1/2/3/4/17/18/19/20 only
- Video and Audio
-
IP Video Input
16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
-
Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Incoming Bandwidth200 Mbps
- Outgoing Bandwidth160 Mbps
- HDTVI Input5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS Input PAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI 1 Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- Audio Input4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous Playback16-ch
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
-
Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-stream Support
- Stream Type Video, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Network
- Remote Connection128
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- Serial InterfaceRS-232, RS-485 (full-duplex), keyboard
- SATA4 SATA interfaces
- eSATA Support
- Capacity Up to 12 TB capacity for each disk
- Alarm In/Out16/4
-
USB Interface
Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 40 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch)
- Weight≤ 7 kg (without HDD, 15.4 lb.)
